- Page 1 User Manual 7115 Contamination Trap Version 1.2 9-21 Time Electronics Ltd Unit 5, TON Business Park, 2-8 Morley Road, Tonbridge, Kent, TN9 1RA, United Kingdom. T: +44 (0) 1732 355993 | F: +44 (0) 1732 350198 mail@timeelectronics.co.uk | www.timeelectronics.com...
- Page 2 All rights reserved. Nothing from this manual may be multiplied, or made public in any form or manner, either electronically or hard copy, without prior written consent from Time Electronics Ltd. This also applies to any schematics, drawings and diagrams contained herein.
-
Page 3: Table Of Contents
Contents Warnings ............................4 Introduction ............................ 5 Specifications ............................6 7115 Photos ............................6 Using the 7115 ..........................8 Example Set Ups ........................... 9 Cleaning and Maintenance ......................11 Components List ......................... 13 Warranty and Servicing ....................... 14 7115 Contamination Trap... -
Page 4: Warnings
These systems control a supplied pressure source and output them to a unit under test. The 7115 is connected between the controller and the UUT. Please observe all warnings and safety instructions when dealing with high pressure supplies and outputs. -
Page 5: Introduction
The contamination trap must be placed between the 8030 and the UUT in order to avoid that liquid (water, oil etc.) and residues from these process instruments damage the internal system of the controller. The 7115 is a trap that is supplied as standard with the 8030 controllers. -
Page 6: Specifications
Time Electronics User Manual 7115 Contamination Trap v1.2 Specifications Pressure Range: -1 to 210bar Pressure Media: Pneumatic only - Gas or air Material: Stainless steel, polycarbonate and nitrile rubber seals. Connections: 2 x Adaptors – minimess, hoses supplied. Weight: 1 kg Operating Temperature: 10 to 40°C (50 to 104°F) - Page 7 Time Electronics User Manual 7115 Contamination Trap v1.2 7115 Contamination Trap Page 7 of 15...
-
Page 8: Using The 7115
Minimess hoses are supplied for connection from the 8030 to the 7115. An additional hose is supplied for connection from the 7115 to the UUT. If an manifold is supplied this will be a minimess to minimess type. A minimess to ¼ BSP or ¼ NPT hoses will be supplied if required. -
Page 9: Example Set Ups

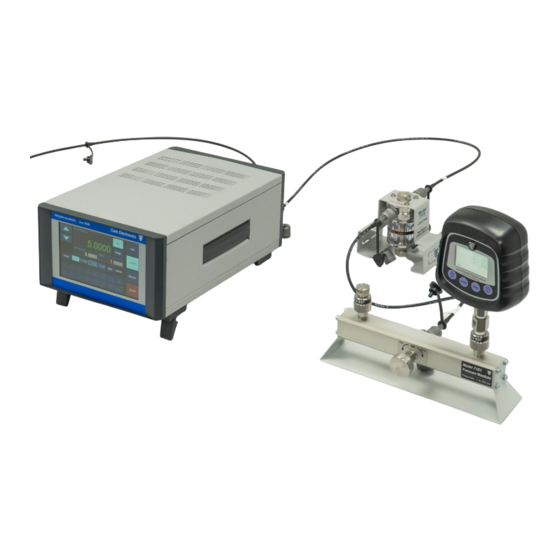

Time Electronics User Manual 7115 Contamination Trap v1.2 Example Set Ups 3.1.1 8030 > 7115 > Manifold > UUT 8030 7115 Manifold 3.1.2 8030 > 7115 > UUT 8030 7115 7115 Contamination Trap Page 9 of 15... - Page 10 Time Electronics User Manual 7115 Contamination Trap v1.2 3.1.3 8030B > 7115 > 8100 Manifold > UUT 8030B 7115 Manifold 7115 Contamination Trap Page 10 of 15...
-
Page 11: Cleaning And Maintenance
Time Electronics User Manual 7115 Contamination Trap v1.2 4 Cleaning and Maintenance When the liquid accumulated inside the contamination trap reaches the level of the boundary line, the liquid can be removed as follows: 1. Disconnect both hoses from the contamination trap. - Page 12 Time Electronics User Manual 7115 Contamination Trap v1.2 5. Using clean water, rinse the components. 6. Using clean tissue dry thoroughly, ensuring all contaminates are removed. Note: Do not use solvents. Note: Do not use grease on the sealing “O”-rings.
-
Page 13: Components List
Time Electronics User Manual 7115 Contamination Trap v1.2 Components List 7115 Contamination Trap Page 13 of 15... -
Page 14: Warranty And Servicing
Time Electronics’ total liability is limited to repair or replacement of the product. Note that if Time Electronics determine that the fault on a returned product has been caused by the user, we will contact the customer before proceeding with any repair. - Page 15 Returning Instruments Prior to returning your product please contact Time Electronics. We will issue a return merchandise authorization (RMA) number that is to accompany the goods returning. Further instructions will also be issued prior to shipment. When returning instruments, please ensure that they have been adequately packed, preferably in the original packing supplied.
