Time Electronics
5068 Insulation Tester Calibrator
4

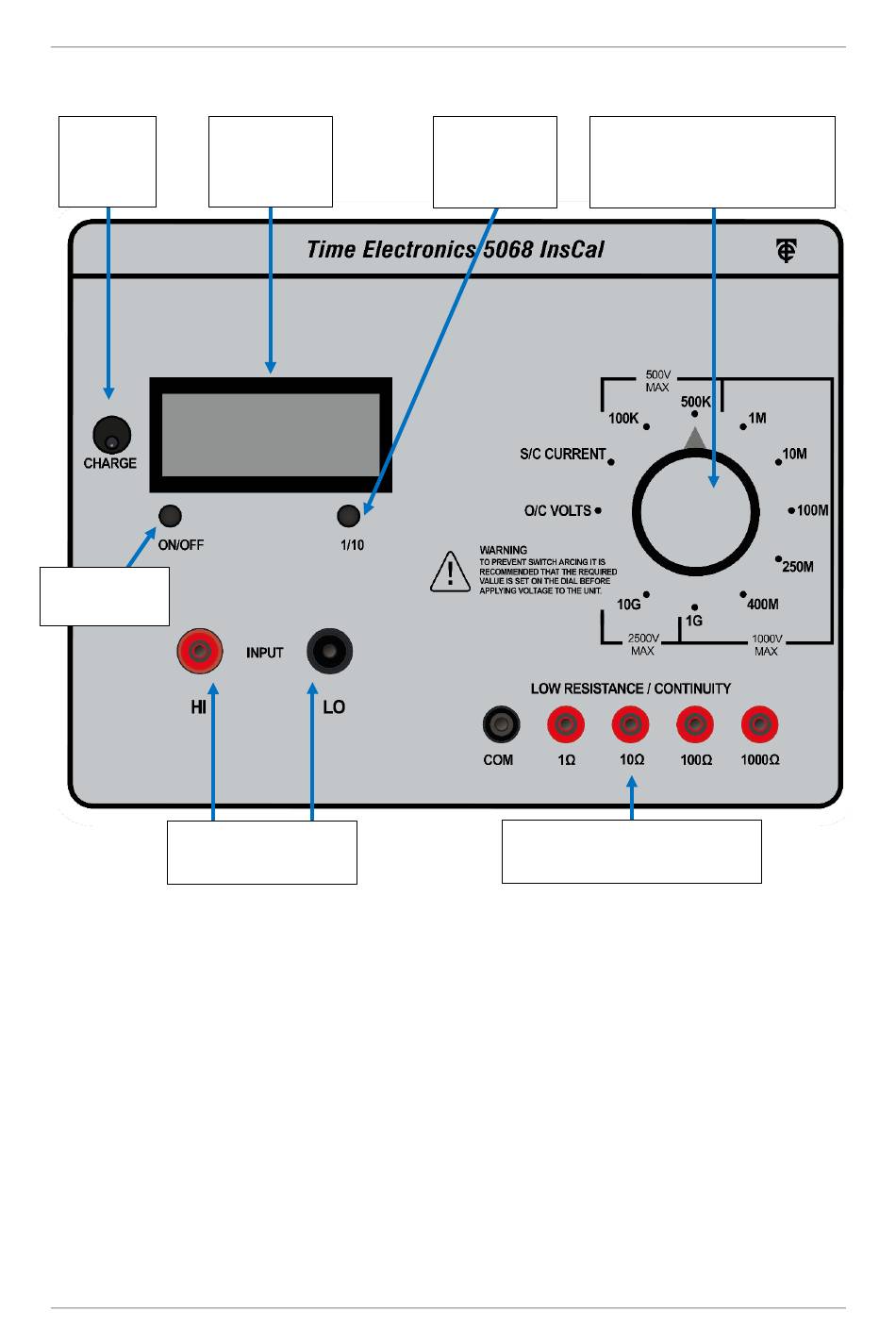

Controls

V/I meter
Voltage/Current
charging
socket
V/I meter
On/Off button
4 mm recessed UUT
connection sockets
4.1

Descriptions of Controls

• On/Off Button: To power the voltage/current meter on or off.
• Charging socket. A socket to recharge the 5068 voltage/current meter.
• Voltage/Current meter: Displays the O/C voltage or S/C current when used.
• V or I range Selection button: Select the range to use for the V or I measure function.
• Function selector and insulation resistance setting knob: Use to select the required
function or the insulation resistance spot values from 100 kΩ to 10 GΩ.
• Low resistance connection sockets: Spot values used individually: 1Ω, 10Ω, 100Ω, 1 kΩ.
• 4 mm Recessed Sockets: Used to connect the 5068 to the insulation tester (UUT).
meter
V or I range
selection button
Low resistance
connection sockets
7
User Manual
Function selector and
insulation resistance
setting knob
