- Page 1 Control Centre Numeric Keypad Module with jog dial Version 1.2 March 2021 Time Electronics Ltd Unit 5, TON Business Park, 2-8 Morley Road, Tonbridge, Kent, TN9 1RA, United Kingdom. T: +44 (0) 1732 355993 | F: +44 (0) 1732 350198...
- Page 2 All rights reserved. Nothing from this manual may be multiplied, or made public in any form or manner, either electronically or hard copy, without prior written consent from Time Electronics Ltd. This also applies to any schematics, drawings and diagrams contained herein.
-
Page 3: Table Of Contents
Time Electronics User Manual CCPAD Control Centre Numeric Keypad Module with jog dial v1.2 Contents Introduction ............................ 4 Controls ............................5 Operation Guide..........................6 Example of Manual Operation - Numeric Entry ..................6 Example of Operation with EasyCal Software ..................7 Warranty and Servicing ....................... -
Page 4: Introduction

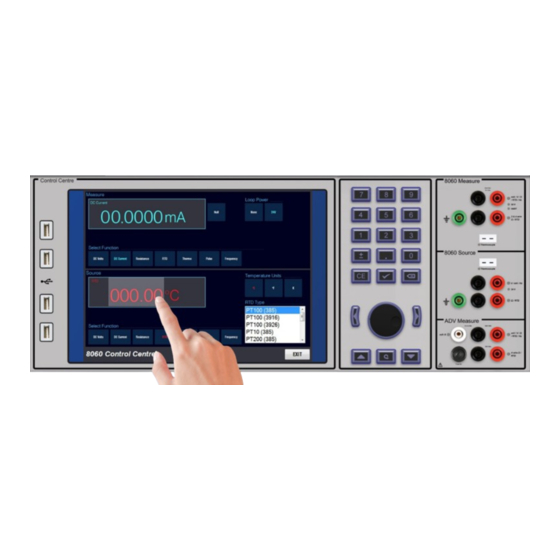

Introduction The CCPAD is a module designed to accompany the CalBench control centre, for use with the manual control programs and EasyCal calibration software. It’s specific purpose is to aid users on the CalBench when using calibrators, gauges and multimeters via the control centre. -
Page 5: Controls
Time Electronics User Manual CCPAD Control Centre Numeric Keypad Module with jog dial v1.2 Controls Numeric Key Pad Jog Dial / Deviation Cursor Left & Right Cursor Up & Down Escape / Back CCPAD Control Centre Numeric Keypad Module with jog dial... -
Page 6: Operation Guide
3 Operation Guide The CCPAD can be used with modules that feature a control centre, such as the 7051 and 8060. These modules feature manual control applications and EasyCal Software for automated test procedures. The CCPAD is designed for operation during testing runs to allow users a quick method of input and control. -
Page 7: Example Of Operation With Easycal Software
(see EasyCal user manual for further details). CalRun is the interface that runs a calibration procedure. Using the CCPAD you can quickly pass through the prompt and set up screens by pressing the CCPAD enter button or alternatively press the jog dial. - Page 8 Time Electronics User Manual CCPAD Control Centre Numeric Keypad Module with jog dial v1.2 3.2.1 Keyboard Entry Enter the numeric value via the keypad. Use the enter button to capture the value. To confirm the value and move on to the next test press the enter button again.
- Page 9 Time Electronics User Manual CCPAD Control Centre Numeric Keypad Module with jog dial v1.2 3.2.2 Deviation In deviation mode the jog dial becomes active. The output is then finely adjusted by rotating the dial. To confirm the value press the enter button or alternatively press the jog dial.
- Page 10 Time Electronics User Manual CCPAD Control Centre Numeric Keypad Module with jog dial v1.2 3.2.3 Spin Box As with deviation mode the jog dial becomes active. The value is then finely adjusted by rotating the dial. CCPAD Control Centre Numeric Keypad Module with jog dial...
-
Page 11: Warranty And Servicing
Time Electronics’ total liability is limited to repair or replacement of the product. Note that if Time Electronics determine that the fault on a returned product has been caused by the user, we will contact the customer before proceeding with any repair. - Page 12 Returning Instruments Prior to returning your product please contact Time Electronics. We will issue a return merchandise authorization (RMA) number that is to accompany the goods returning. Further instructions will also be issued prior to shipment. When returning instruments, please ensure that they have been adequately packed, preferably in the original packing supplied.
