- Page 1 User Manual 5069 InsCal Insulation Tester Calibrator Version 2.2 July 2021 Time Electronics Ltd Unit 5, TON Business Park, 2-8 Morley Road, Tonbridge, Kent, TN9 1RA, United Kingdom. T: +44 (0) 1732 355993 | F: +44 (0) 1732 350198 mail@timeelectronics.co.uk | www.timeelectronics.com...
- Page 2 All rights reserved. Nothing from this manual may be multiplied, or made public in any form or manner, either electronically or hard copy, without prior written consent from Time Electronics Ltd. This also applies to any schematics, drawings and diagrams contained herein.
-
Page 3: Table Of Contents
Time Electronics User Manual 5069 Insulation Tester Calibrator v2.2 Contents General Description ........................4 Supplied Items ..........................5 Specifications ..........................6 Technical Specification .......................... 6 General Specification ..........................6 Ordering Information ..........................6 Controls ............................7 Descriptions of Controls ........................7 Operation ............................ -
Page 4: General Description
It is constructed from very high insulation materials, including its case, and is fully isolated from any external circuits including the mains supply. All of the rotary selector switches are manufactured by Time Electronics, using special high voltage low leakage wafers; the contacts are self-cleaning. This feature means they should require no maintenance. -
Page 5: Supplied Items

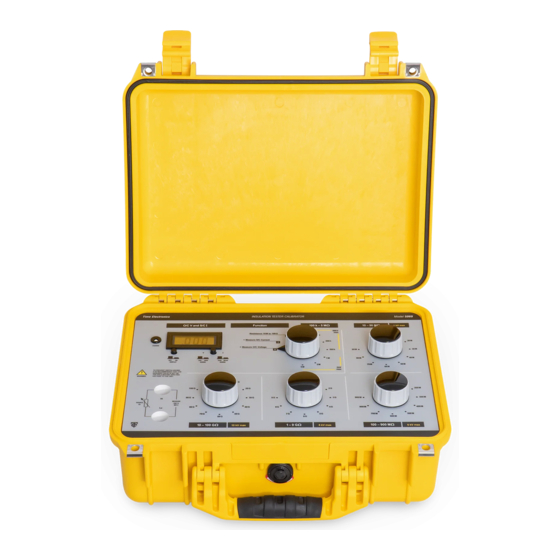

Time Electronics User Manual 5069 Insulation Tester Calibrator v2.2 Supplied Items 5069 InsCal Insulation Tester Calibration System Accessories in the box: Wallet 10 kV lead 5 kV Lead Set Battery charger 5069 Insulation Tester Calibrator Page 5 of 15... -
Page 6: Specifications
Time Electronics User Manual 5069 Insulation Tester Calibrator v2.2 Specifications Technical Specification Insulation Resistance 3 x spot values: 100 kΩ, 200 kΩ, 500 kΩ…….. Accuracy: 1%....Max. Volts: 500 V 3 x spot values: 1 MΩ, 2 MΩ, 5 MΩ……………Accuracy: 1%....Max. Volts 2 kV 9 x 10 MΩ.. -
Page 7: Controls
Time Electronics User Manual 5069 Insulation Tester Calibrator v2.2 Controls V/I Meter V or I Range Resistance Decade Voltage/Current Function Charging Selection 100 kΩ to 5 MΩ Resistance Meter Selectors socket Button Set Points 10 MΩ to 90 MΩ V/I Meter... -
Page 8: Operation
Time Electronics User Manual 5069 Insulation Tester Calibrator v2.2 Operation Operational Guidelines Notes: 1. UUT: stands for Unit Under Test (i.e. the insulation tester or the megohm meter). 2. Wherever possible use the manufacturer of the UUT’s supplied test leads. -
Page 9: Typical Operation Procedure
Time Electronics User Manual 5069 Insulation Tester Calibrator v2.2 Typical Operation Procedure 5.2.1 Initial Setup 1) Check the battery on both 5069 V/I Meter and Insulation Tester. Make sure their batteries are fully charged. 2) Complete the setup procedure for the insulation tester (UUT). -
Page 10: Voltage Measurement
Time Electronics User Manual 5069 Insulation Tester Calibrator v2.2 5.2.2 Voltage Measurement The 5069 voltmeter will display the voltage output from the insulation tester. Perform the following procedure to measure the voltage. 1) Adjust the pointer at zero on the UUT (Analogue meter display, if required). -
Page 11: Current Measurement
Time Electronics User Manual 5069 Insulation Tester Calibrator v2.2 5.2.3 Current Measurement The 5069 current meter will display the equivalent current output of the Insulation tester. Perform the following procedure to measure the current. 1) On the 5069, select the S/C CURRENT function using the rotator knob. -
Page 12: Insulation Resistance Verification
Time Electronics User Manual 5069 Insulation Tester Calibrator v2.2 5.2.4 Insulation Resistance Verification Note: The O/C V and S/C I display can be turned off when using the resistance function to conserve battery life. 1) If using the 100 kΩ to 5 MΩ set points, select the required resistance. -
Page 13: Example Connection Diagram
Time Electronics User Manual 5069 Insulation Tester Calibrator v2.2 5.2.5 Example Connection Diagram 5069 Insulation Tester Calibrator Page 13 of 15... -
Page 14: Warranty And Servicing
Time Electronics’ total liability is limited to repair or replacement of the product. Note that if Time Electronics determine that the fault on a returned product has been caused by the user, we will contact the customer before proceeding with any repair. - Page 15 Returning Instruments Prior to returning your product please contact Time Electronics. We will issue a return merchandise authorization (RMA) number that is to accompany the goods returning. Further instructions will also be issued prior to shipment. When returning instruments, please ensure that they have been adequately packed, preferably in the original packing supplied.
