5.2.2

Voltage Measurement

The 5069 voltmeter will display the voltage output from the insulation tester.
Perform the following procedure to measure the voltage.
1) Adjust the pointer at zero on the UUT (Analogue meter display, if required).

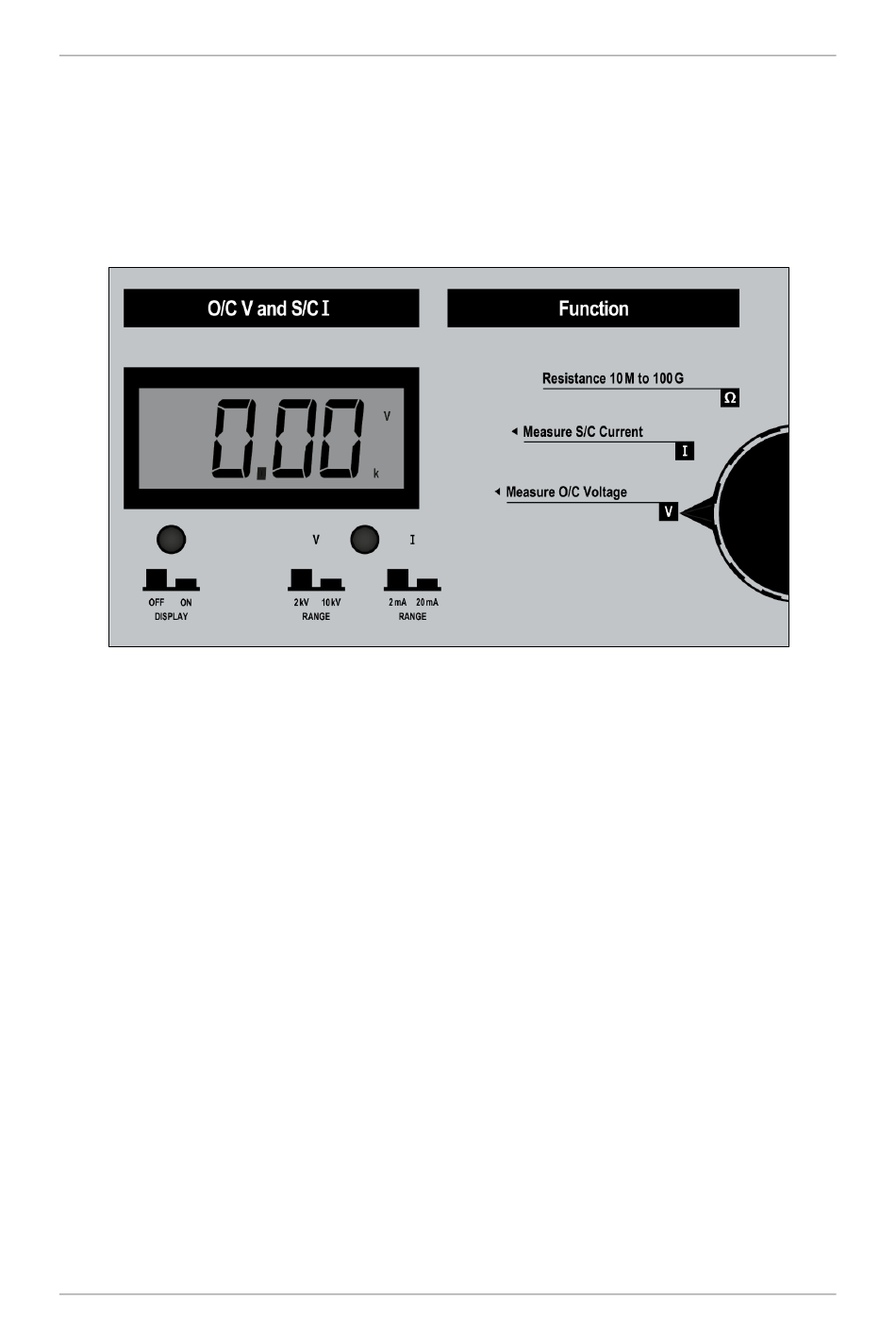

2) On the 5069, select the O/C VOLTS function using the rotator knob.
3) Using 'Range Selection Button' under the display, choose the required voltage range:
2 kV or 10 kV.
4) Using the selected high voltage test leads, connect the 5069 to the UUT, observing their
polarities.
5) Select voltage range on UUT, and press the test button.
6) When the reading has stabilised, record the O/C voltage reading on the 5069 voltmeter.
