If the console port does not work after the system is started up, check whether the
console port is set to a baud rate of 9600 bps, eight data bits, no sum check bit, one
stop bit and no traffic control.

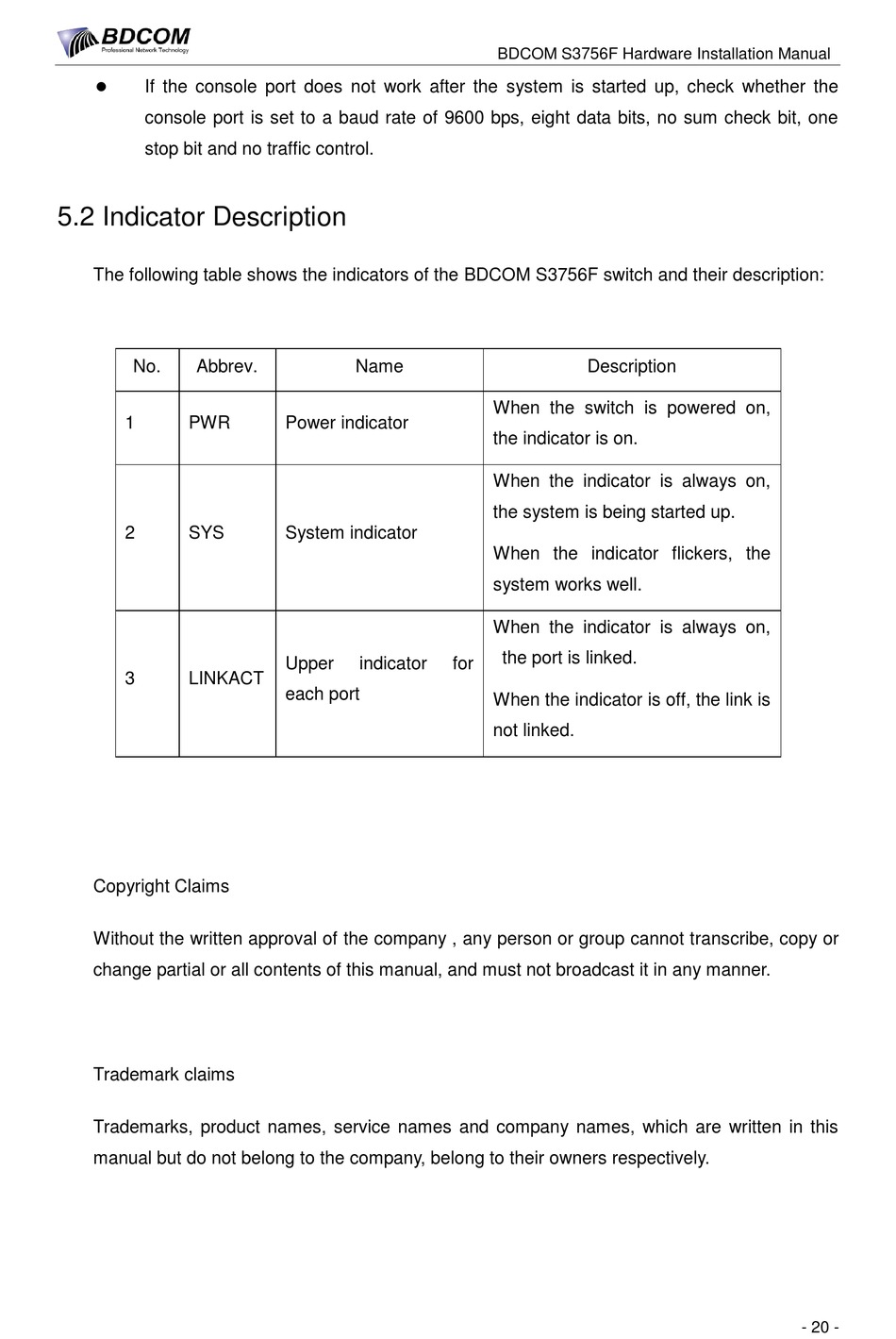

5.2 Indicator Description

The following table shows the indicators of the BDCOM S3756F switch and their description:
No.
Abbrev.
1
PWR
2
SYS
3
LINKACT
Copyright Claims
Without the written approval of the company , any person or group cannot transcribe, copy or
change partial or all contents of this manual, and must not broadcast it in any manner.
Trademark claims
Trademarks, product names, service names and company names, which are written in this
manual but do not belong to the company, belong to their owners respectively.
Name
Power indicator
System indicator
Upper
indicator
for
each port
BDCOM S3756F Hardware Installation Manual
Description
When the switch is powered on,
the indicator is on.
When the indicator is always on,
the system is being started up.
When the indicator flickers, the
system works well.
When the indicator is always on,
the port is linked.
When the indicator is off, the link is
not linked.
- 20 -
