(5) When the cover is opened, put it aside. The mainboard of the system appears.
Note:
After taking off the cover, put it horizontally and avoid it to be crushed or collided. Otherwise,
the machine box is hard to install.

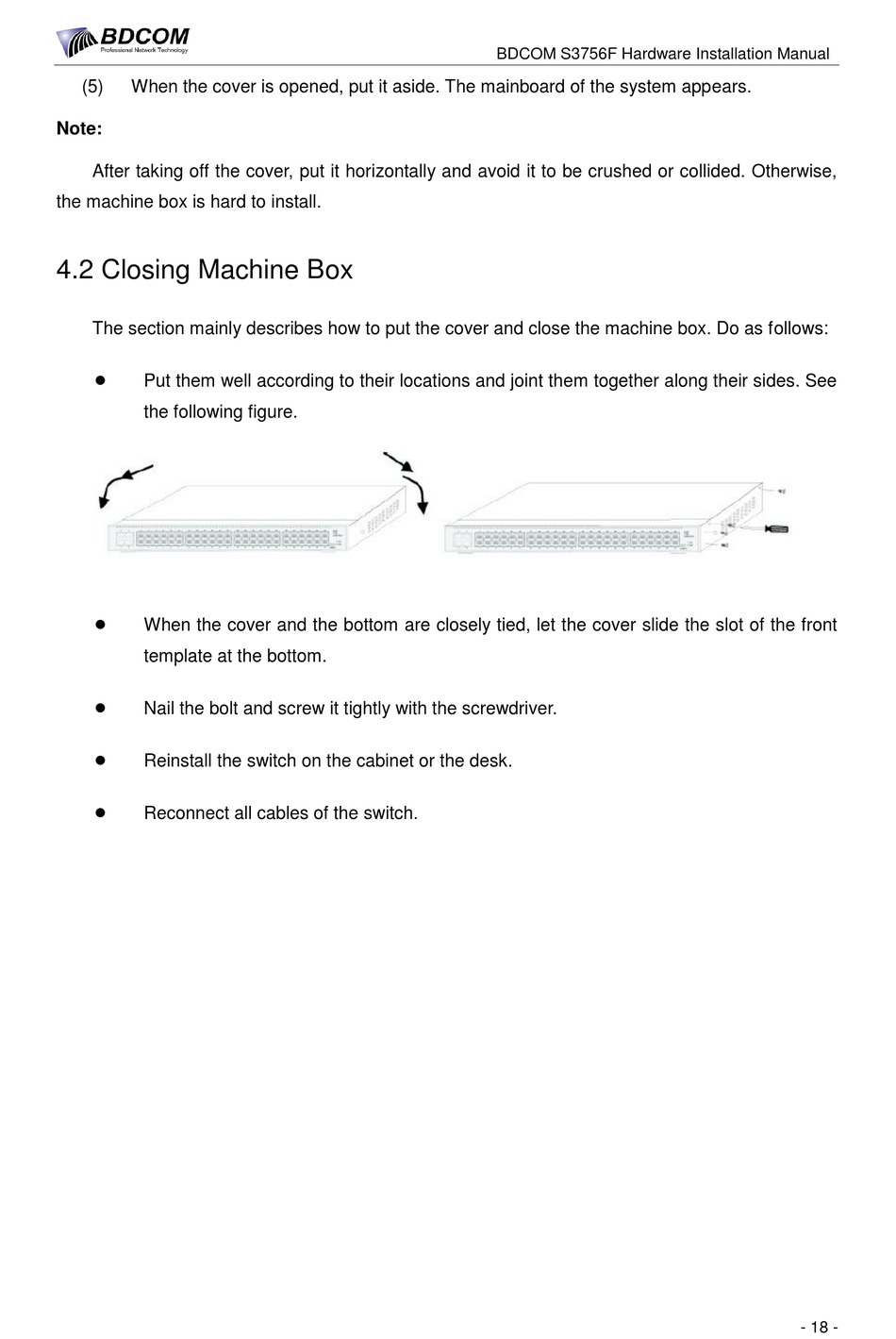

4.2 Closing Machine Box

The section mainly describes how to put the cover and close the machine box. Do as follows:

Put them well according to their locations and joint them together along their sides. See
the following figure.

When the cover and the bottom are closely tied, let the cover slide the slot of the front
template at the bottom.

Nail the bolt and screw it tightly with the screwdriver.

Reinstall the switch on the cabinet or the desk.

Reconnect all cables of the switch.
