Chapter 1 BDCOM S3756F Switch

The section describes the characteristics and parameters of BDCOM S3756F and gives an
overview of BDCOM S3756F.

1.1 Appearance Description for Standard Configuration

The built-in ports of BDCOM S3756F are: 4 gigabit combo ports, 44 gigabit Ethernet optical
ports, 8 10G Ethernet SFP+ ports, 1 Console port. See table 1-1.
Gigabit-Ethernet TX port
Gigabit-Ethernet SFP port
10G Ethernet SFP+ ports
Console port

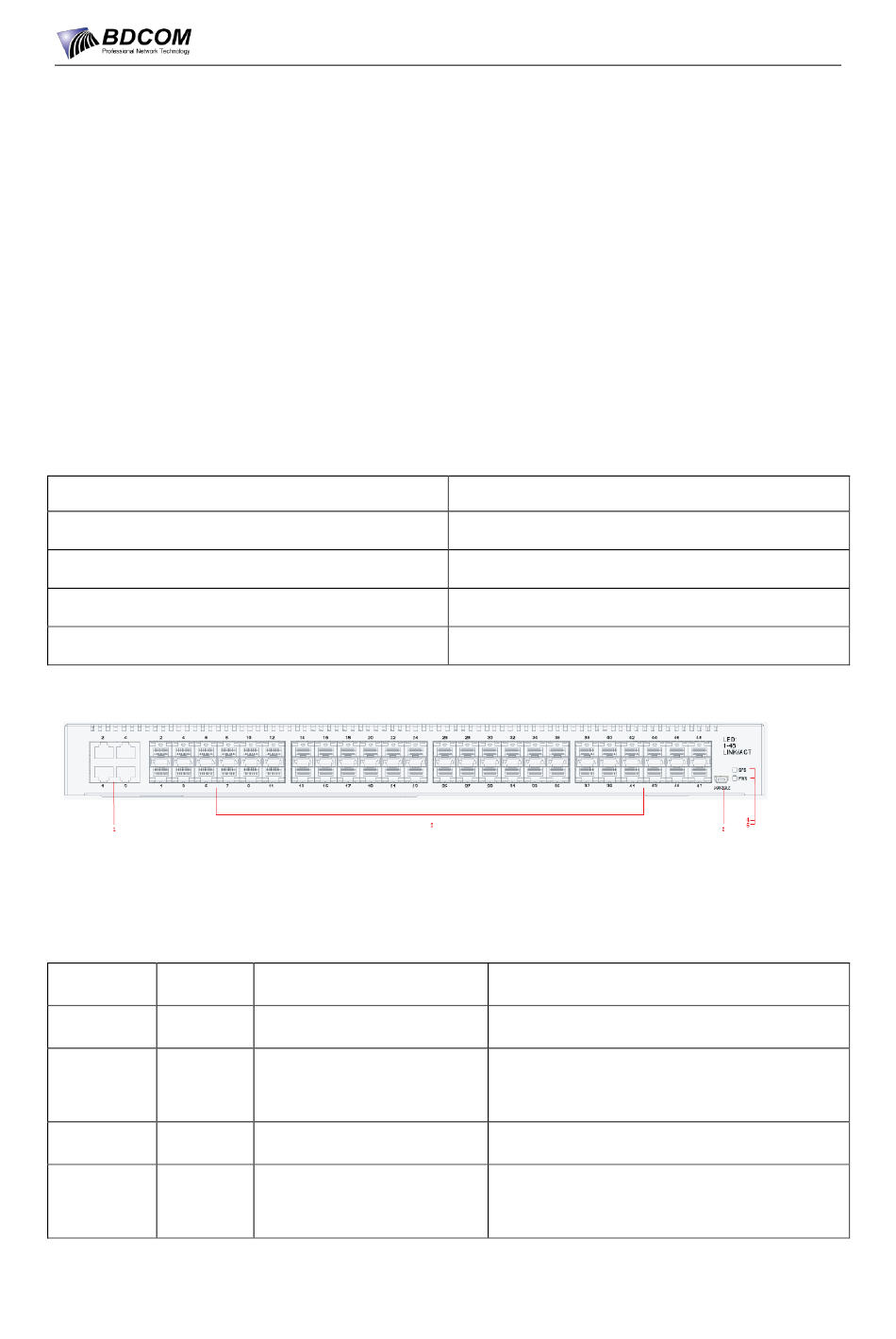

Figure 1-1 The front template of the BDCOM S3756F switch
Table 1-2 Parts at the front template of BDCOM S3756F switch
No. Abbrev.
1
2
3 Console
4 SYS
Table 1-1 Attributes of the built-in port
Port
Name
4 gigabit Ethernet TX ports
48 gigabit Ethernet optical
ports
Console port
System indicator
BDCOM S3756F Hardware Installation Manual
Attribute
RJ45 port, LINK/ACT indicators
SFP interface: with LINK/ACT indicators
SFP+ interface: with LINK/ACT indicators
A rate of 9600bps, mini USB.
Description
COMBO port, UTP (RJ45) interface
SFP interface, 1-4 are combo ports
Manages the switch locally.
If the indicator is always on, the system is
normally started up.
