3-4. Mirror

Function name:
Mirror Configuration
Function description:
Mirror Configuration is to monitor the traffic of the network. For example, we
assume that Port A and Port B are Monitoring Port and Monitored Port
respectively, thus, the traffic received by Port B will be copied to Port A for
monitoring.
Parameter description:
Mode:
Used for the activation or de-activation of Port Mirror function. Default is
disable.
Monitoring Port:
Set up the port for monitoring. Valid port is Port 1~12 and default is
Port 1.
Monitored Port:
Set up the port for being monitored. Just tick the check box (
the port x and valid port is Port 1~12.

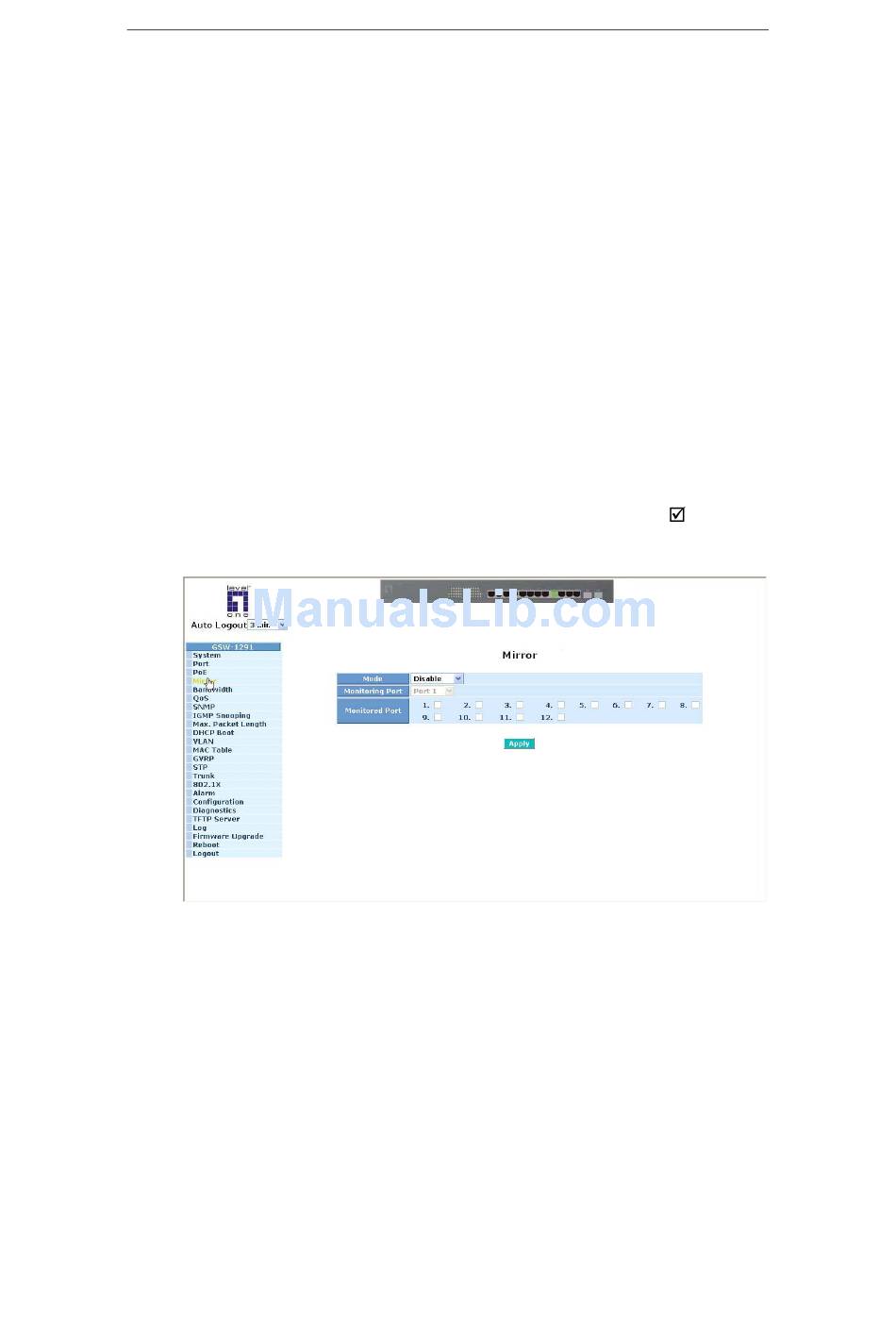

Fig. 3-14
