1-4. View of GSW-1291

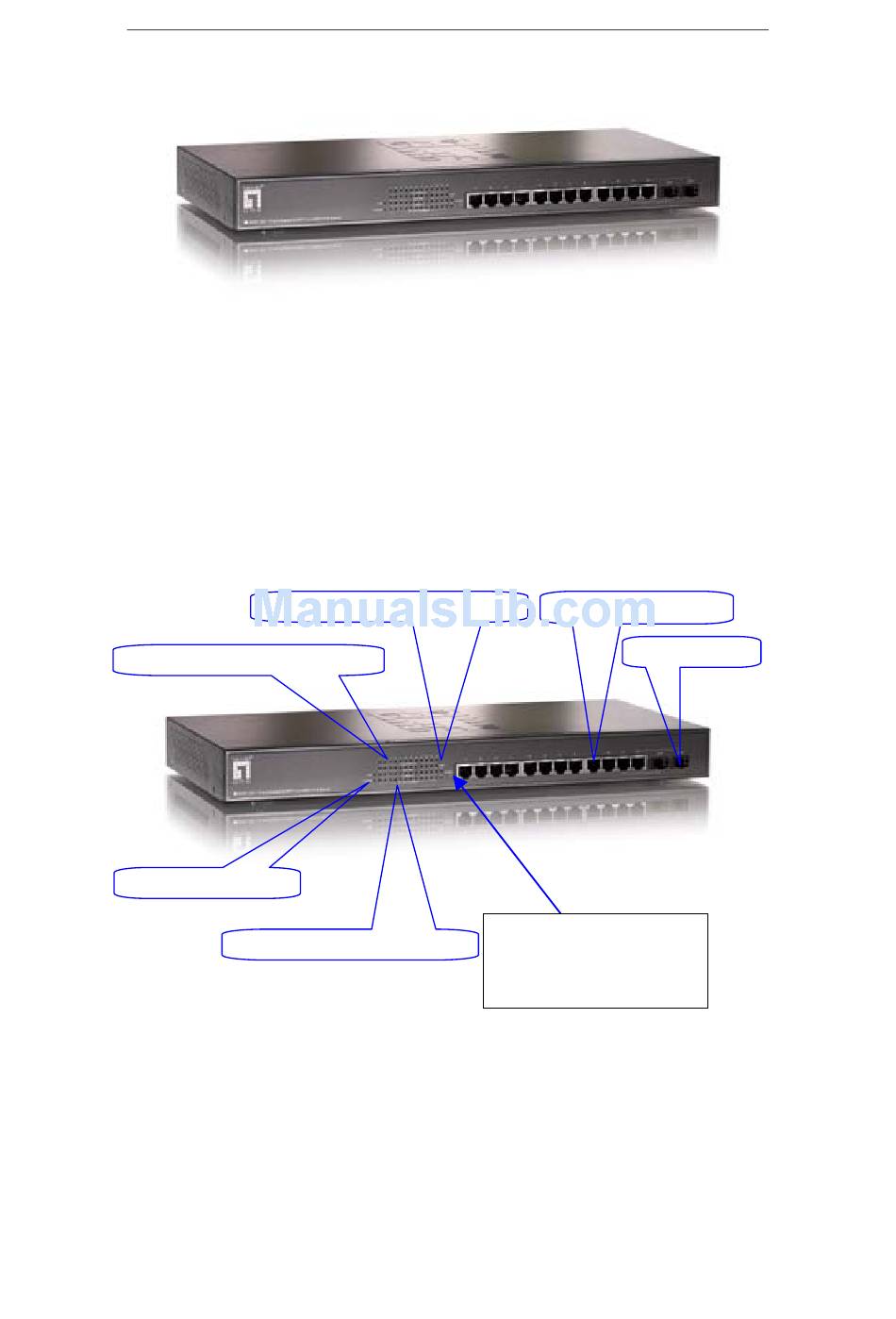

Fig. 1-1 Full View of 12 Gigabit L2 Managed Switch with PoE

1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs)

There are 12 TP Gigabit Ethernet ports and 2 SFP fiber ports for optional
removable modules on the front panel of the switch. LED display area, locating on
the left side of the panel, contains a Power LED, which indicates the power status
and 12 ports working status of the switch.
Fiber Port Status Indication LEDs
PoE Port Status Indication LEDs
Power Indication LED
TP Port Status Indication LEDs
Fig. 1-2 Front View of 12 Gigabit L2 Managed Switch
Gigabit Ethernet Port
RESET Button:
RESET button is used to
initialize or reset the
management system.
