Default SNMP function : Enable
Default community name for GET: public
Default community name for SET: private
Default community name for Trap: public
Default Set function : Enable
Default trap host IP address: 0.0.0.0
Default port number :162
Trap:
In the switch, there are four trap hosts supported. Each of them has its
own community name and IP address; is user-definable. To set up a trap
host means to create a trap manager by assigning an IP address to host
the trap message. In other words, the trap host is a network
management unit with SNMP manager receiving the trap message from
the managed switch with SNMP agent issuing the trap message. 6 trap
hosts can prevent the important trap message from losing.
For each public trap, the switch supports the trap event Cold Start, Warm
Start, Link Down, Link Up and Authentication Failure Trap. They can be
enabled or disabled individually. When enabled, the corresponded trap
will actively send a trap message to the trap host when a trap happens. If
all public traps are disabled, no public trap message will be sent. As to
the Enterprise (no. 6) trap is classified as private trap, which are listed in
the Trap Alarm Configuration function folder.
Default for all public traps: Enable.

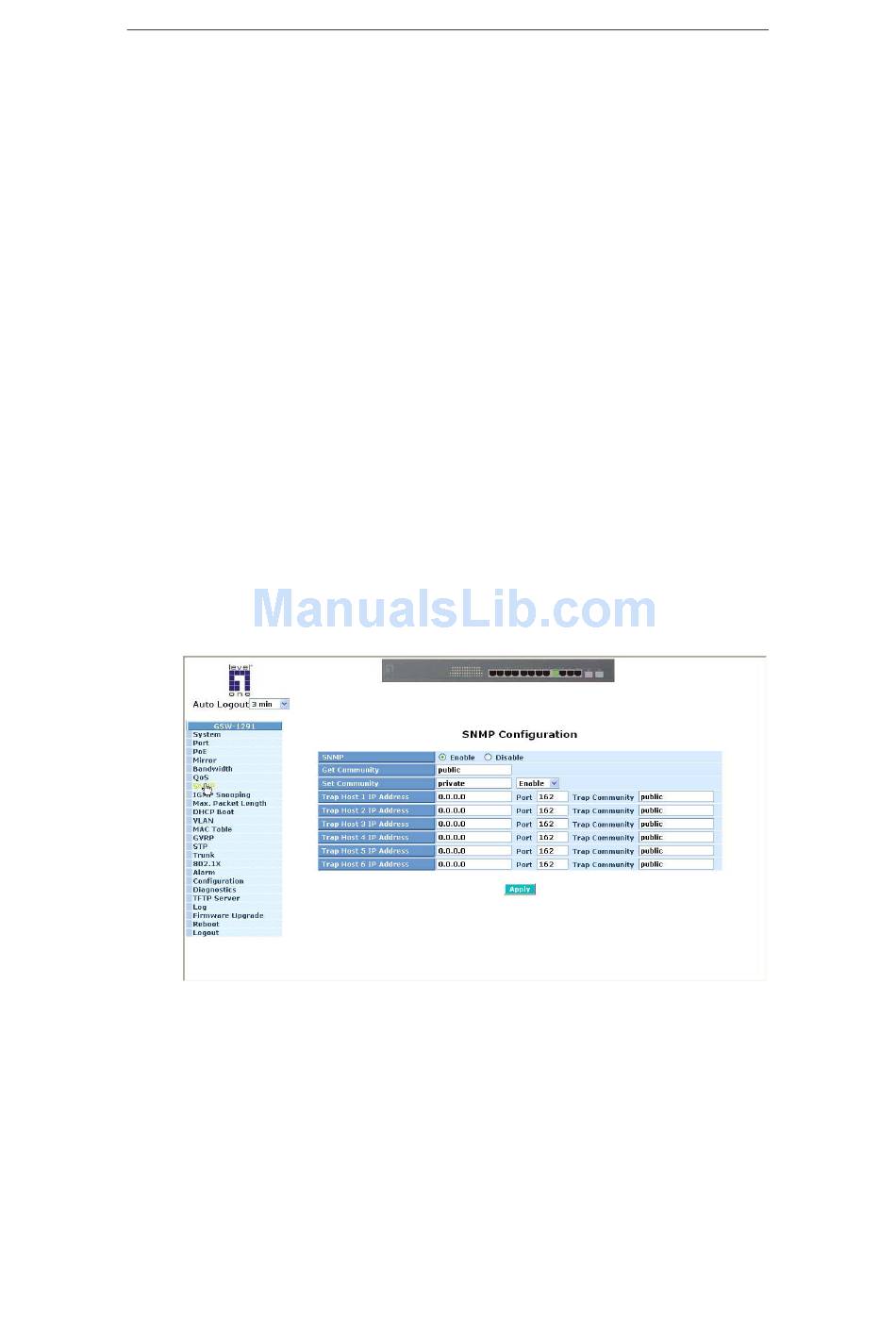

Fig. 3-23 Community and trap host setting
