• LED Indicators
LED Color
System LED
POWER Green Lit when +5V DC power is on and good
CPU LED Green Blinks when CPU is activity
10/100/1000Ethernet TP Port 1 to 12 LED
PoE-PSE ACT Green Lit when PoE Power is active
PoE FAIL
LINK/ACT Green
Green/
10/100/1000Mbps Ember
1000SX/LX Gigabit Fiber Port 11, 12 LED
SFP(LINK) Green

1-4-2. User Interfaces on the Rear Panel

One RS-232 DB-9 interface is offered for configuration or management.
RS-232 DB-9 Connector
Publication date: May, 2005
Revision A1
Red Lit when PoE Power is failed
Lit when connection with remote device is good
Blinks when any traffic is present
Off when cable connection is not good
Lit green when 1000Mbps speed is active
Lit ember when 100Mbps speed is active
Off when 10Mbps speed is active
Lit when connection with the remote device is good
Off when module connection is not good
Table1-1

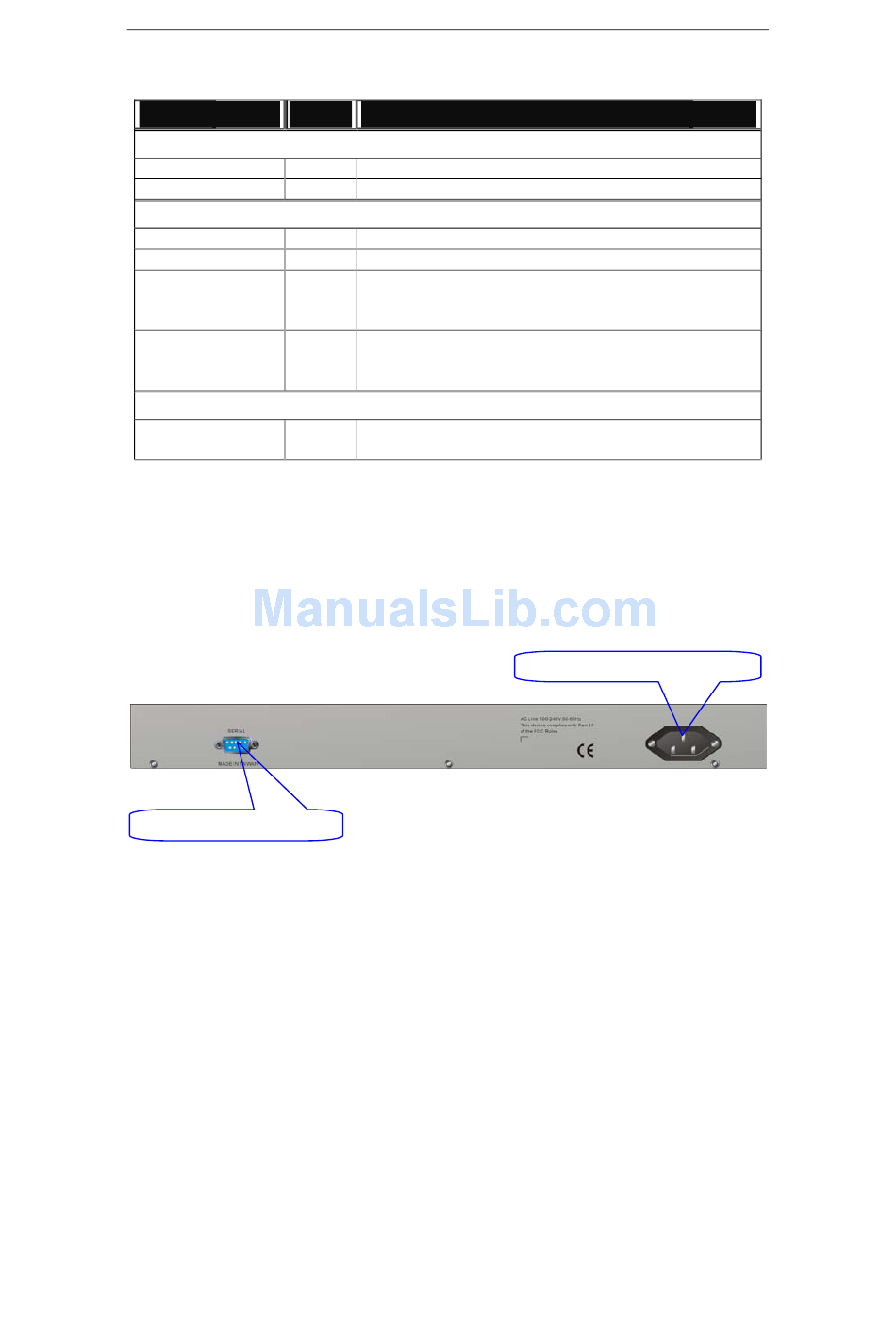

Fig. 1-3 Rear View of GSW-1291
8
Function
AC Line 100-240V 50/60 Hz
