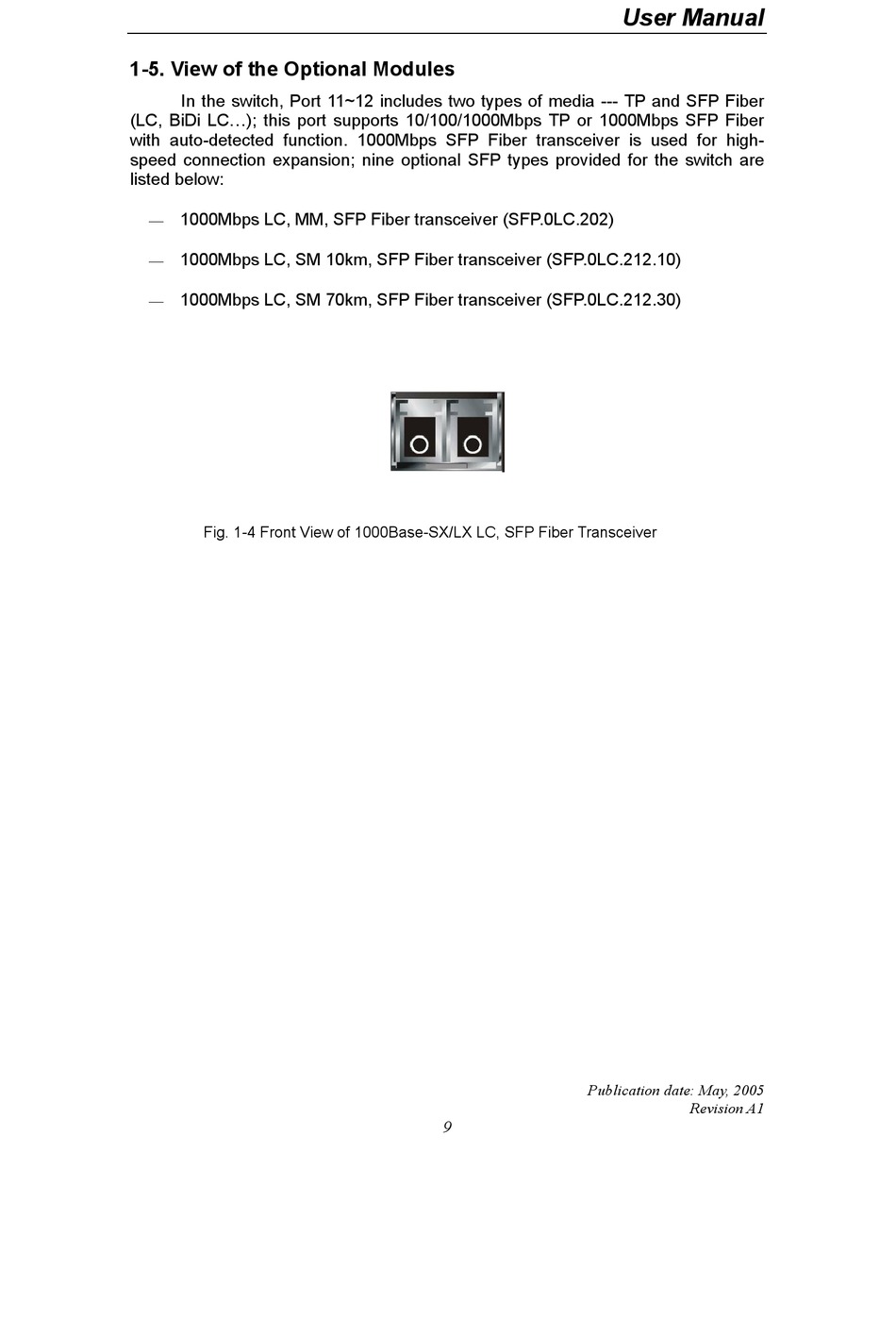

1-5. View of the Optional Modules

In the switch, Port 11~12 includes two types of media --- TP and SFP Fiber
(LC, BiDi LC...); this port supports 10/100/1000Mbps TP or 1000Mbps SFP Fiber
with auto-detected function. 1000Mbps SFP Fiber transceiver is used for high-
speed connection expansion; nine optional SFP types provided for the switch are
listed below:
1000Mbps LC, MM, SFP Fiber transceiver (SFP.0LC.202)

1000Mbps LC, SM 10km, SFP Fiber transceiver (SFP.0LC.212.10)

1000Mbps LC, SM 70km, SFP Fiber transceiver (SFP.0LC.212.30)

Fig. 1-4 Front View of 1000Base-SX/LX LC, SFP Fiber Transceiver
