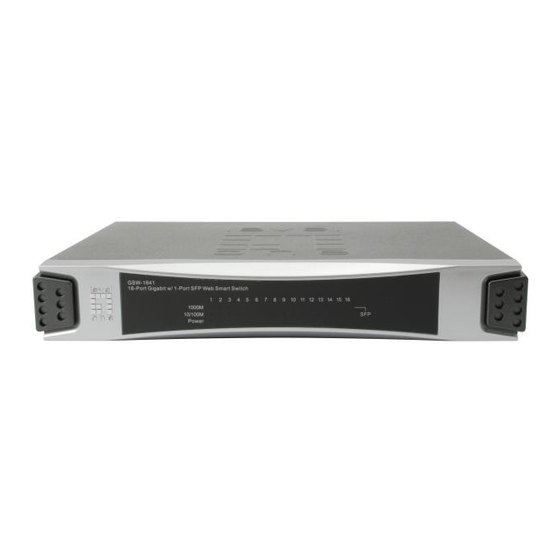

16-port gigabit with 1-port sfp web smart switch
Hide thumbs Also See for GSW-1641:

Advertisement

Quick Links

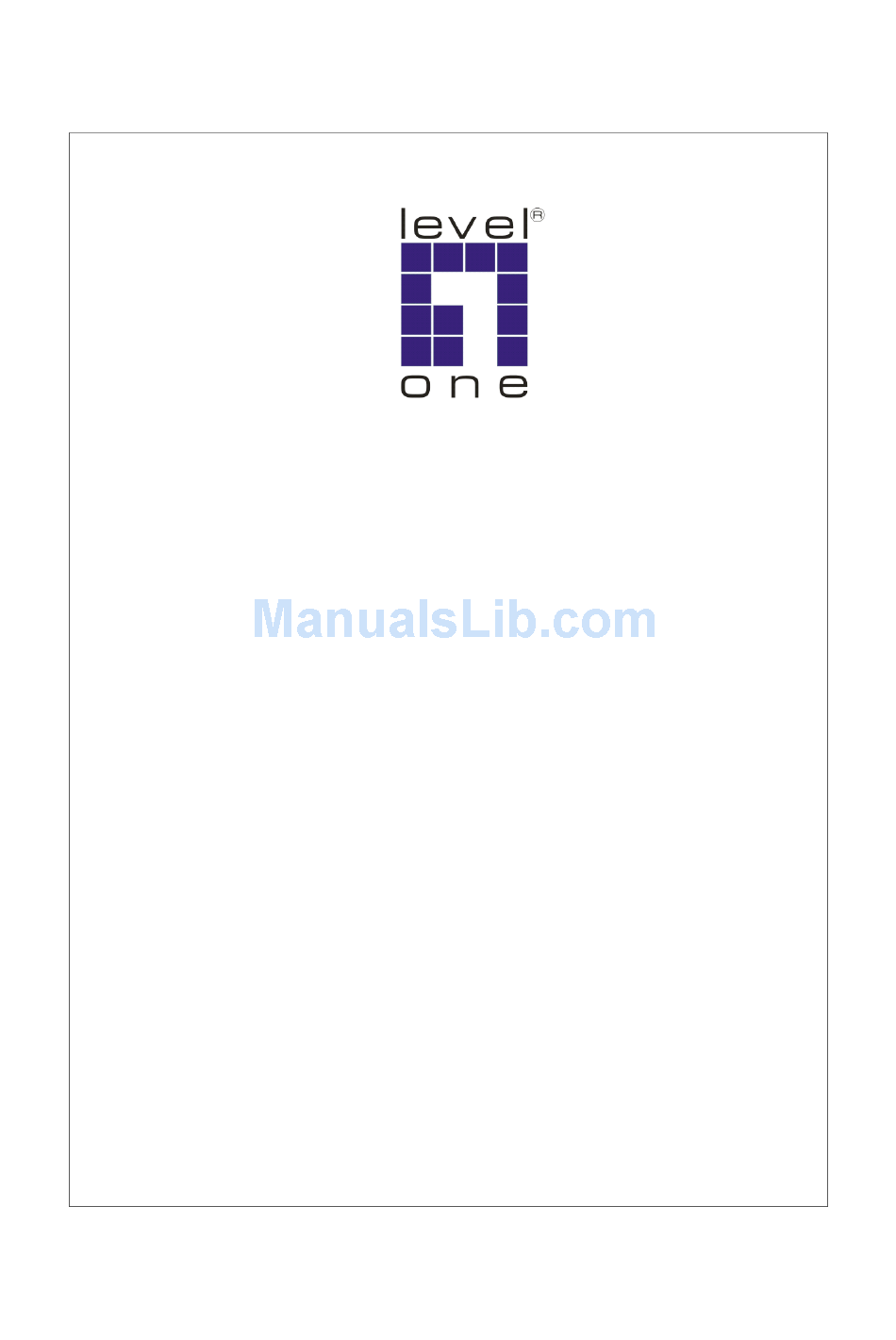

LevelOne
GSW-1641
16-Port Gigabit with 1-Port SFP
Web Smart Switch

User Manual

Version 1.0-0604
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSW-1641 and is the answer not in the manual?

Questions and answers

Summary of Contents for LevelOne GSW-1641

  • Page 1: User Manual

    LevelOne GSW-1641 16-Port Gigabit with 1-Port SFP Web Smart Switch User Manual Version 1.0-0604...
  • Page 2: Fcc Certifications

    FCC Certifications This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3: Table Of Contents

    Table of Contents UNPACKING INFORMATION ....... 5 INTRODUCTION ..........5 ................5 ENERAL ESCRIPTION ..................5 EATURES ..................6 RONT ANEL ..................7 ANEL INSTALLATION ..........8 ................8 ESKTOP NSTALLATION ..............8 MOUNT NSTALLATION ..............9 NSTALLING ETWORK ABLES ................
  • Page 4 VLAN..................... 15 PVID ...................... 16 ..........17 GGREGATION RUNK ONFIGURATION ................18 UALITY OF ERVICE ....................22 IRROR ..................... 23 IMIT SNMP..................... 24 ..................... 25 ISCOVERY ................26 TATISTICS VERVIEW ................26 ETAILED TATISTICS ..................27 ESTART ................. 27 ACTORY EFAULT ..................
  • Page 5: Unpacking Information

    Unpacking Information Thank you for purchasing GSW-1641 Gigabit Web Smart Switch. Before you start, please verify that your package contains the following items: 1. One GSW-1641 Web Smart Switch 2. One AC power cord 3. Rack-mount brackets 4. Stackable kit 5.
  • Page 6: The Front Panel

    The Front Panel The front panel consists of LED indicators. Please refer to the following paragraph for information. LEDs Definition System LED The switch provides a power LED for the device. Status Operation Steady Green The switch is powered on Power The switch is powered off Port LEDs...
  • Page 7: The Rear Panel

    The Rear Panel The rear panel of the switch: Port Operation The auto-negotiation feature allows those ports running at one of the following operation modes: Media Speed Duplex Mode Full Duplex 10Mbps Half Duplex 10/100/1000Mbps(copper) Full Duplex 100Mbps Half Duplex 1000Mbps Full Duplex 1000Mbps(Fiber)
  • Page 8: Installation

    Installation This switch can be placed on your desktop directly, or mounted in a rack. Please refer to the instructions for installation. Before installing the switch, we recommend: The switch is placed with appropriate ventilation environment. A minimum 25mm space around the unit is recommended. The switch and the relevant components are away from sources of electrical noise such as radios, transmitters and broadband amplifiers.
  • Page 9: Installing Network Cables

    Installing Network Cables Crossover or straight-through cable: All the ports on the switch support auto-MDI/MDI-X functionality. Both straight-through or crossover cables can be used as the media to connect the switch with PCs as well as other devices like switches, hubs or router. Category 3,4,5 or 5eUTP/STP cable: To make a valid connection and obtain the optimal performance.
  • Page 10: Functional Description

    Functional Description Jumbo Frame With Jumbo Frame supported, it is allowed for the switch to transport identical data in fewer frames. Hence helps to ensure fewer overheads, shorten processing time, and reduce interrupts. Note: To enable Jumbo Frame, Flow Control should be enabled in advance. Flow Control and Back Pressure Flow control and Back Pressure both contributes for lower and higher speed devices to communicate to each other hence ensures the correctness of data transmitting.
  • Page 11: Management Guide

    Management guide Access the Switch This section instructs you how to enter and proceed the advanced management capability, which can be accessed by internet browser over the network. To access the web-based management interface, you should configure the management station with an IP address and subnet mask that compatible to your switch.
  • Page 12: Homepage

    Homepage After authentication procedure, the “SYSTEM Configuration” page shows up as the Homepage. You may click the hyperlinks on the left side of each page to get access to each management function.
  • Page 13: System

    System The “System” window provides the switch information and allows users to configure the switch properties. Items Functions MAC Address The MAC address of this device.. S/W Version The software version of this device. IP Address Setup the IP address of the switch Subnet Mask Setup the Subnet Mask of the switch Gateway...
  • Page 14: Port

    Port This “Port Configuration” page shows the link status of each port and allows users to configure speed, flow control and Max frame size for each port. Items Functions Link Shows the link status of each port. The column lights green with the link speed while there is valid connection on this port.
  • Page 15: Vlan

    VLAN VLAN divides the network members into groups to reduce packets collisions and improve the network efficiency. The switch supports 802.1Q tag-based VLAN. Please follow the instructions to configure. To add new VLAN groups, 1. Fill in a VLAN id from 2 to 4094 in the “VLAN\Port” column. 2.
  • Page 16: Pvid

    PVID When the VLAN-enabled switch receives a tagged packet, the packet will be sent to the port’s default VLAN according to the PVID (port VLAN ID) of the receiving port. Items Functions Port Port Number 1~16 Egress Select “tagged” in the drop list to enable the PVID checking and tag inserting of one port, and select “untagged”...
  • Page 17: Aggregation/ Trunk Configuration

    Aggregation/ Trunk Configuration To set up the port trunk groups, put the ports number into the same aggregation group. There are eight groups to choose. Don’t forget to click the “Apply” to save the setting. There are three aggregation modes for you to setup, SMAC (Source MAC), DMAC (Destination MAC), and XOR.
  • Page 18: Quality Of Service

    Quality of Service QoS enhances the communication quality by giving different precedence to classified packets. This switch provides port-based, tag-based and DSCP QoS modes:...
  • Page 19 Port-based mode QoS: The port-based QoS allows users to configure certain ports as high or low priority. To give priority level for each port: Select “Port” in the “Mode” column for those ports that are going to perform port-based QoS. Click the “Apply” button. Click the “Port priority”...
  • Page 20 Tag based QoS: The tag-based QoS decides packet priority according to the tags that adding on the packets. To configure Tag-based QoS configuration: Select “Tagged” in the “Mode” column for those ports that are going to perform tag-based QoS. Click the “Apply” button. Click the “Tag priority”...
  • Page 21 DSCP mode QoS: The DSCP mode QoS gives packet priority by the precedent types attaching on the incoming packets. The types of precedence: 000 - Routine 001 - Priority 010 - Immediate 011 - Flash 100 - Flash Override 101 - CRITIC/ECP 110 - Internetwork Control 111 - Network Control To configure DSCP Based QoS configuration:...
  • Page 22: Mirror

    Mirror The “Mirror” function copies all the packets that are received or transmitted by the source port to the destination port. It allows administrators to analyze and monitor the traffic of the monitored ports. Mirror Configuration: Select those ports that are going to be monitored by marking the checkboxes in “Monitor Port”...
  • Page 23: Rate Limit

    Rate Limit This “Rate Limit” page allows users to configure the rules for storm control. You may also limit the speed of incoming and outgoing frames for each port. To perform storm control: Click on each drop list to specify a speed for each frame type. Click the “Apply”...
  • Page 24: Snmp

    SNMP This device supports SNMP-management, which allows network administrators to monitor and configure this device with SNMP software. To allow this device to be managed via SNMP: Select “enable” in the drop list. Specify a trap IP. A trap IP is the destination port for sending trap information, which is usually the IP address of network administrators.
  • Page 25: Discovery

    Discovery After installing series of LevelOne gigabit web smart switches(GSW-0841/1641/2440), the discovery management tool helps users to search and get access to those switches within the LAN. Note. The discovery tool lists the Maximum 16 devices respectively for auto and manual modes.
  • Page 26: Statistics Overview

    Statistics Overview The “Statistics Overview” is provided for users to see the general transmitting and receiving status of each port. You may click the “Clear” button to clean all statistics or click the “Refresh” button to renew the statistics. Detailed Statistics The “Detailed Statistics”...
  • Page 27: Warm Restart

    Warm Restart Restart: To restart the system, click the “Yes” button. The system will restart and show the authentication window. Please fill in the username and password to continue. Factory Default Restore Factory Default: To restore the factory default value, click the “Yes” button. Note: The IP address of the device will also be configured as factory-default setting, which is 192.168.1.1.
  • Page 28: Software Upload

    Software Upload This “Software Upload” page allows users to upgrade firmware for this switch. To perform firmware upgrade: Click the “Browse” button. Locate the firmware file. Click the “Upload” button to execute. Note: This new firmware is going to be applied on the other flash that you select in “Smart Boot”, that is, the new firmware is going to be applied on the flash that is NOT chosen as the booting flash.
  • Page 29: Product Specifications

    Product Specifications Standard IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3x full-duplex operation and flow control IEEE802.3ab/z 1000BASE-T IEEE802.1Q VLAN interoperability IEEE802.1p Priority Operation Interface 16* 10/100/1000Mbps auto MDI/MDI-X RJ-45 switching ports 1* SFP(mini-GBIC) port 1 * Reset Button Cable Connections RJ-45 (10BASE-T): Category 3,4,5 UTP/STP RJ-45 (100BASE-TX): Category 5 UTP/STP RJ-45 (1000BASE-T): Category 5,5e or enhanced UTP/STP Fiber: depend on Mini-GBIC types...
