User Manual

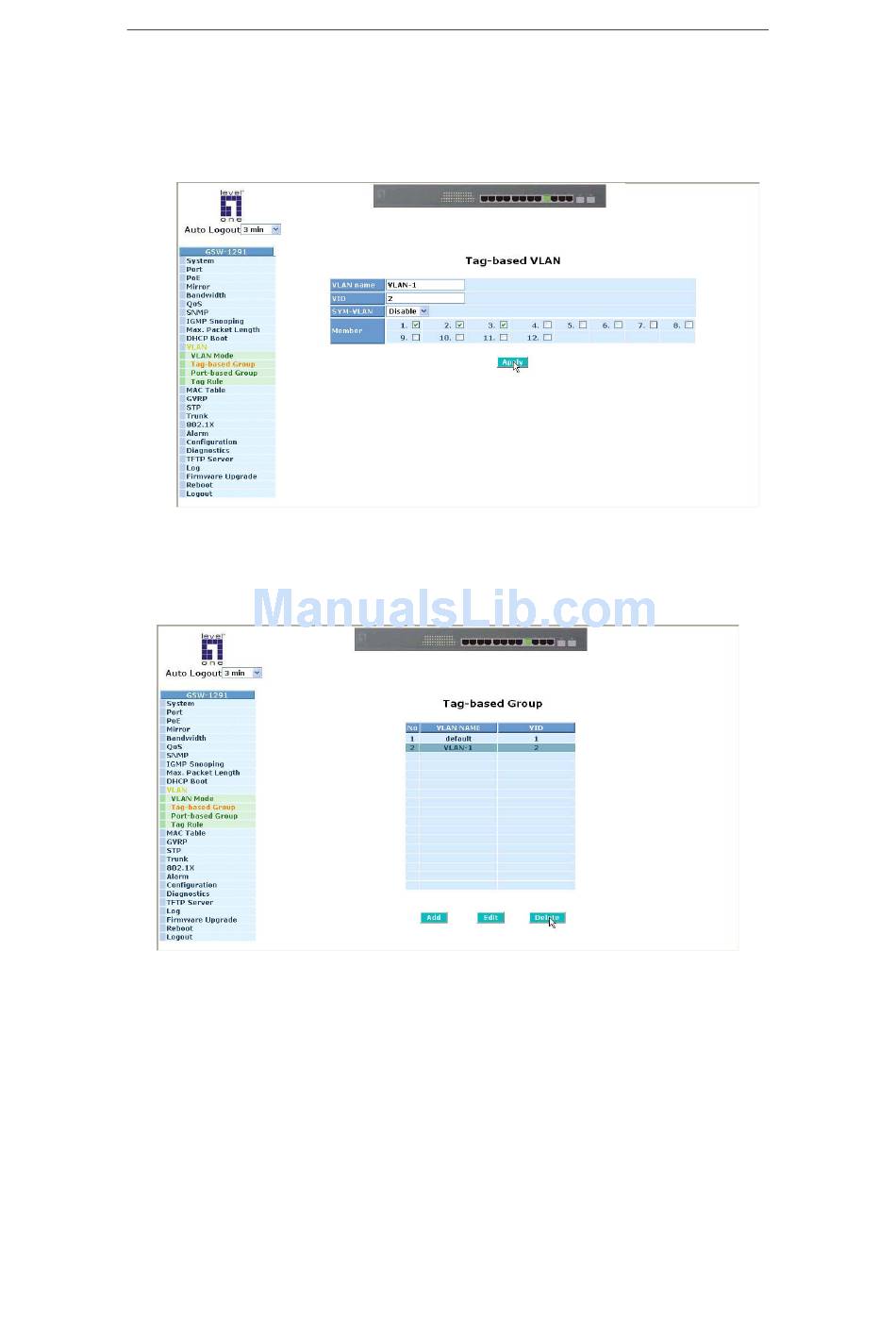

Add Group:
Create a new Tag-based VLAN. Input the VLAN name as well as VID,
configure the SYM-VLAN function and choose the member by ticking the
check box beside the port No., then, press the <Apply> button to have
the setting taken effect.
Delete Group:
Just press the <Delete> button to remove the selected group entry from
the Tag-based group table.
Edit a group:
Just select a group entry and press the <Edit> button, then you can
modify a group's description, SYM-VLAN and member set.
Publication date: May, 2005
Revision A1
Fig. 3-30
Fig. 3-31
84
