LevelOne ProCon GSW-1656 User Manual

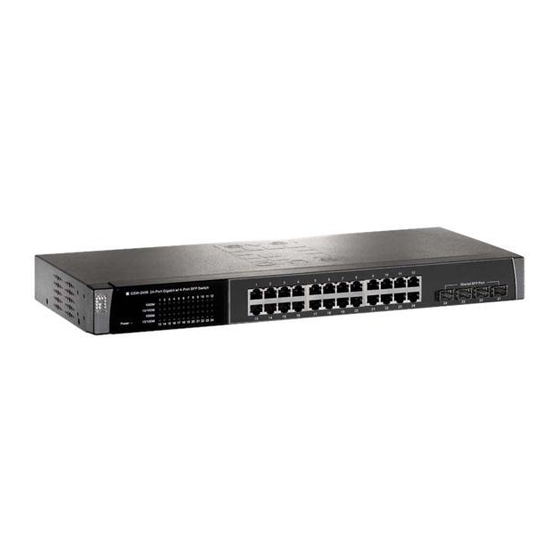

16/24-port gigabit switch w/ 4-port sfp
Hide thumbs
Also See for ProCon GSW-1656:
- Specifications (3 pages) ,
- Specifications (3 pages) ,
- Brochure (86 pages)
Subscribe to Our Youtube Channel
Related Manuals for LevelOne ProCon GSW-1656
Summary of Contents for LevelOne ProCon GSW-1656
-

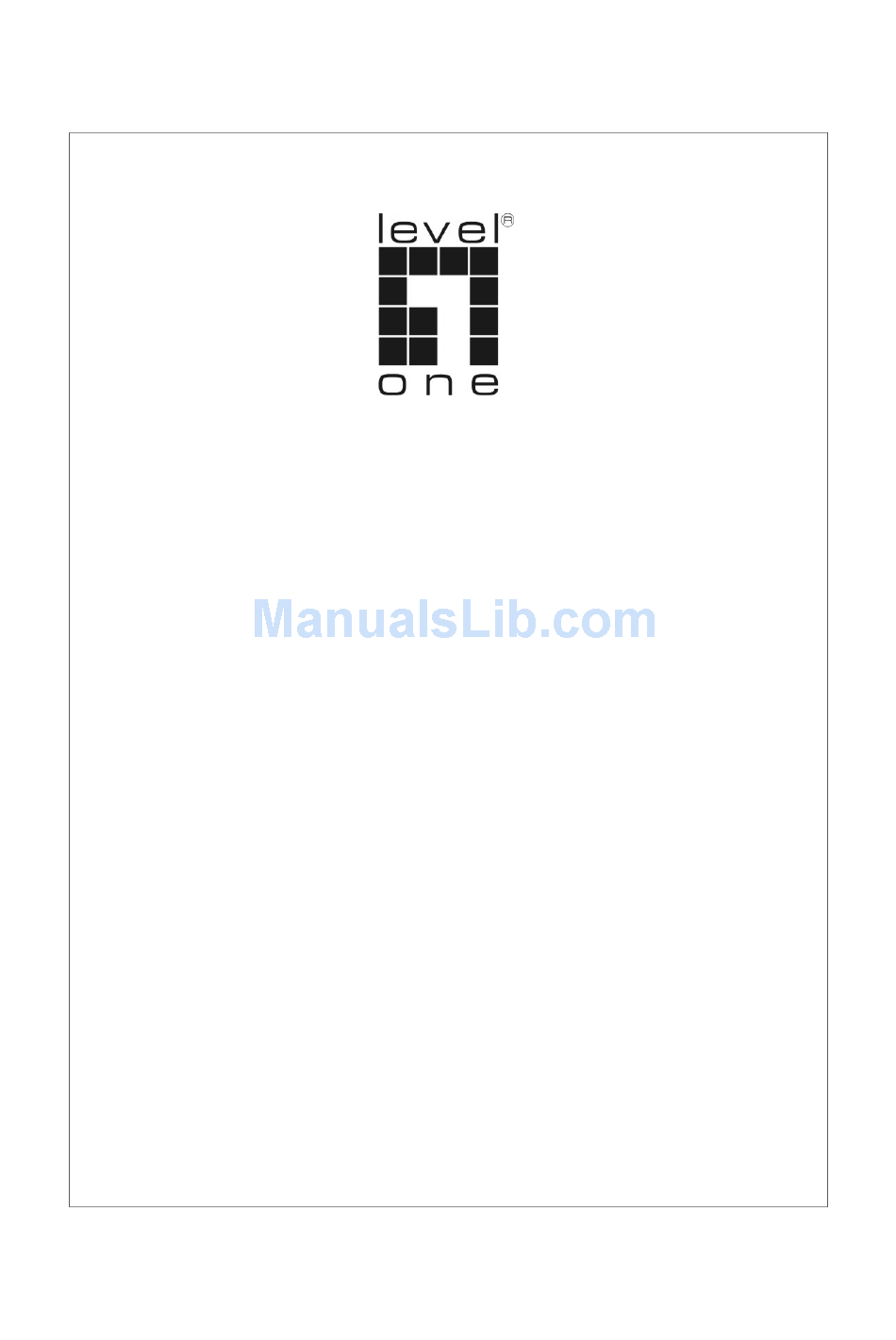

Page 1: User Manual
LevelOne GSW-1656/GSW-2456 16/24-Port Gigabit Switch w/ 4-Port SFP User Manual Version 1.0-0608... - Page 2 FCC Certifications This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Unpacking Information
The 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes. The switch features with easy installation and maintenance. It supports N-way auto-negotiation protocol that detects the networking speed (10/100/1000 Mbps) and the duplex modes (Full/Half) automatically. -
Page 4: The Front Panel
Attention ：The Mini GBIC slot shares the same LED indicators with Gigabit RJ-45 (copper) ports. Status Operation The switch is powered on The switch is powered off Operation Valid port connection at 1000 Mbps Valid port connection and there is data... -
Page 5: The Rear Panel
To power on the switch, plug the female end of the power cord firmly into the receptacle of the switch and the other end into an electric service outlet. After the power cord installation, please check if the power LED is illuminated for a normal power status. -
Page 6: Rack Mount Installation
1. Crossover or straight-through cable: All the ports on the switch support Auto-MDI/MDI-X functionality. Both straight-through or crossover cables can be used to connect the switch with PCs as well as other devices like switches, hubs or router. 2. Category 3,4,5 or 5e UTP/STP cable: To make a valid connection and obtain the optimal performance. -
Page 7: Port Operation
Backbone Network Application This switch is ideal for boosting the throughput of backbone. For an application sample of network topology, please refer to the following chart. Speed... -
Page 8: Product Specifications
Product Specifications IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX Standard IEEE802.3x full-duplex flow control IEEE802.3z/ab 1000BASE-T 16/24 *10/100/1000 Mbps auto MDI/MDI-X RJ-45 switching ports Interface 4 *shared Mini-GBIC module sockets RJ-45 (10BASE-T): Category 3,4,5 UTP/STP RJ-45 (100BASE-TX): Category 5 UTP/STP Cable Connections RJ-45 (1000BASE-T): Category 5,5e or enhanced UTP/STP Fiber: depend on Mini-GBIC types 10/100Mbps Full-duplex, Half-duplex Transmission...
