3-2. Port Configuration

Four functions, including Port Status, Port Configuration, Simple Counter and
Detail Counter are contained in this function folder for port monitor and
management. Each of them will be described in detail orderly in the following
sections.
Port Configuration

3-2-1.Port Status

The function Port Status gathers the information of all ports' current status
and reports it by the order of port number, link status, port state, Auto-Negotiation
status, speed/duplex and flow control. An extra media type information for the

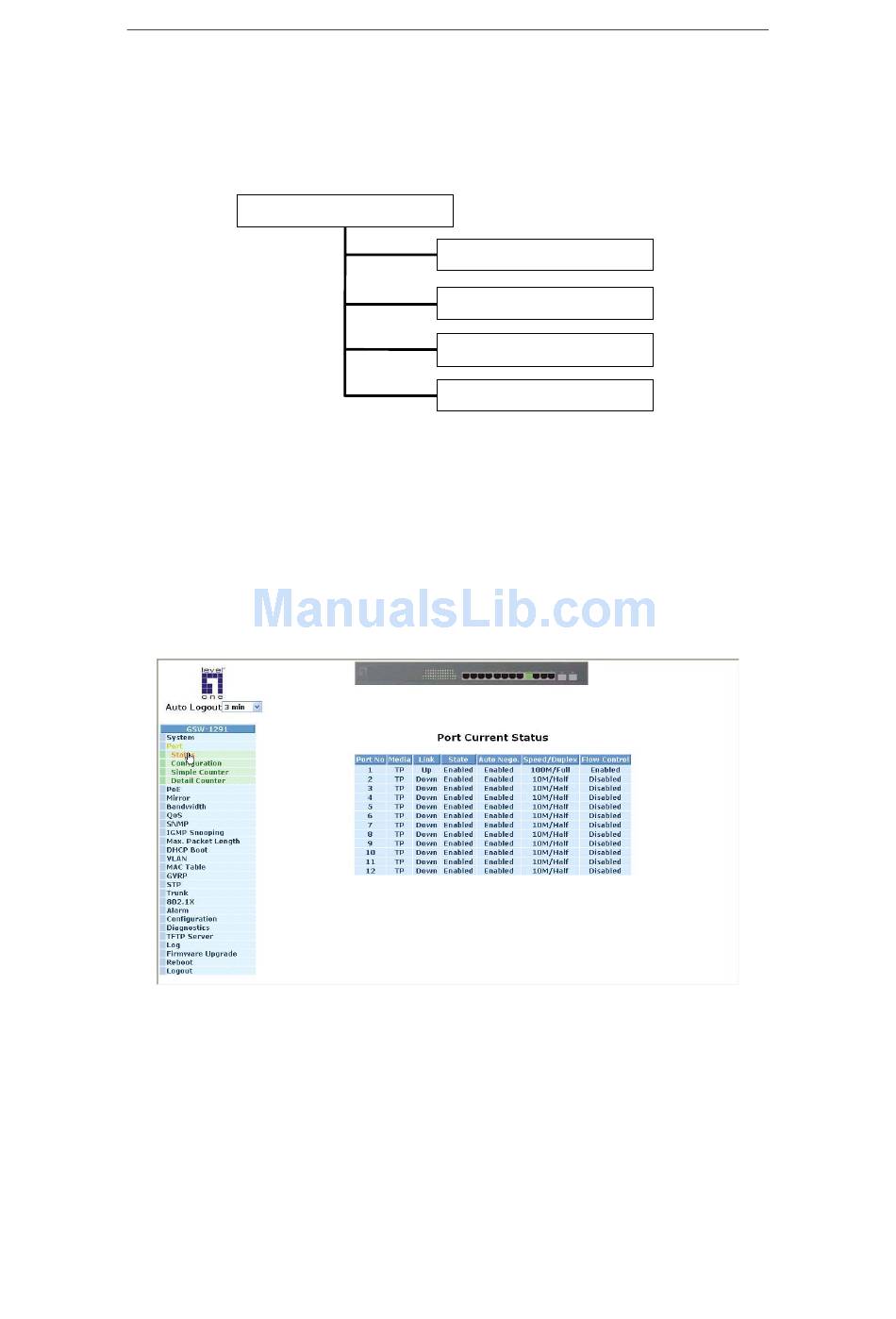

module ports 11 and 12 is also offered (See Fig. 3-8).
Status
Configuration
Simple Counter
Detail Counter
Fig. 3-7
