- Page 1 Pioneering for You Wilo-Connect module BMS Installation and operating instructions 4257831 • Ed.02/2023-10...
- Page 2 Connect module BMS https://qr.wilo.com/1680...
-
Page 3: Table Of Contents
Electrical connection....... 15 Commissioning / Functional test.... 17 Settings ............. 17 Settings for pumps without suitable dis- play ............ 23 Maintenance ............ 23 10 Faults, causes and remedies ...... 23 11 Spare parts............ 24 Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10... -
Page 4: General Information
Subject to change Wilo shall reserve the right to change the listed data without notice and shall not be liable for technical inac- curacies and/or omissions. The illustrations used may differ from the original and are intended as an exem- plary representation of the product. -
Page 5: Personnel Qualifications
Danger of electric voltage Warning – hot surfaces Danger for electrostatic sensitive components (ESD) Notices Personnel qualifications Staff must: • be instructed about locally applicable regulations governing acci- dent prevention, Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10... -
Page 6: Danger In The Event Of Non-Observance Of The Safety Instructions
Failure of important product/unit functions • Failure of required maintenance and repair procedures Operator responsibilities The operator must: • Provide the installation and operating instructions in a language which the personnel can understand. Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10... -
Page 7: Safety Instructions For Inspection And Installation Work
Unauthorised modification and manufacture of spare parts Unauthorised modification and manufacture of spare parts will impair the safety of the product/personnel and void the manufacturer’s de- clarations regarding safety. Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10... -
Page 8: Improper Use
Protect the product against temperatures outside the range of -30 °C to +70 °C. Only store in original packaging. Intended use • The Wilo-Connect module BMS is designed for external control and operating status signalling of Wilo pumps. • The Wilo-Connect module BMS is not designed for safety-related deactivation of the pump. -
Page 9: Compatibility Of The Firmware
If used improperly, there is danger of death due to electric shock! • Never use the control inputs for safety functions. • Never install the module in non-compatible devices. Compatibility of the firmware The module’s full range of functions is only guaranteed for pumps with Wilo-Connectivity Interface: Pump Comments Wilo-Stratos PICO... -
Page 10: Description And Function

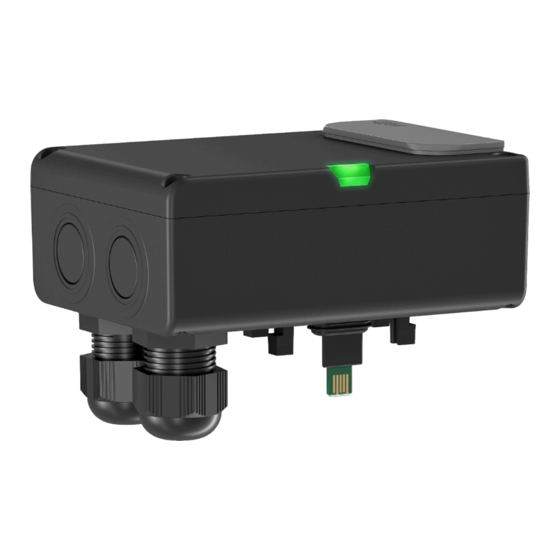

The Wilo-Connect module BMS adds communication interfaces for controlling and reporting operating states to the pump. The module is connected to the pump via the Wilo-Connectivity Interface (slot for external modules). NOTICE Observe the installation and operating instructions of the respective pump! -
Page 11: Analogue Input 0-10 V
2 V < U < 3 V: Pump runs at minimum setpoint (start) 1 V < U < 3 V: Pump runs at minimum setpoint (operation) 3 V < U <10 V: Setpoint varies between minimum and maxi- mum value (linear) Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10... -
Page 12: Digital Input
SSM can only signal as fault “SSM only errors”, or fault and warnings “SSM err & warn.”. The selection is made in the configuration of the module via the pump controls. Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10... -
Page 13: Other Functions
Voltage must be applied to the pump at all times for this function to be activated. The Wilo-Connect module BMS has an LED to indicate the operating status. • Green: Module is ready for operation •... -
Page 14: Installation
• Allow the pump to cool down before commencing any work. NOTICE Observe the installation and operating instructions of the respective pump! Installation The installation of the Wilo-Connect module is described in the Stratos PICO installation and operating in- structions. CAUTION Moisture and leakage water can destroy the control module. -
Page 15: Electrical Connection
NOTICE The IP protection of the pump is only guaranteed with a fully locked module. Fixation with screws Optionally, the Wilo-Connect module BMS can be fixed with the self-tapping screws included in the scope of delivery. CAUTION Property damage due to electrostatic discharge. - Page 16 Parallel use of the analogue input remains possible when using the common ground point. Relay output (Red terminal) Connection as collective fault signal (SSM) Connection as collective run signal (SBM) Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10...
-
Page 17: Commissioning / Functional Test
For some settings, the installation and operating instructions for the pump are required. Settings The Wilo-Connect module is set via the operating elements of the connected pump. The operating modes and basic menu descriptions of the pump are described in the respective installation and operating instructions. - Page 18 SBM motor in operation SBM ready op. SBM power ready Relay active delay 0 s … 60 s Relay inactive delay 0 s … 60 s Relay test ctrl Normal Forced active Forced inactive SW version (Information) Stacked WCM Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10...
- Page 19 If the analogue input is configured for a 2-10V CB detec., the following settings can be used to select the reaction to a detected cable break. Select menu: WCM BMS 2-10V CB detec. Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10...
- Page 20 The figure is given as a percentage (%). The value specifies a speed that reaches a percentage of the maximum delivery head at zero volume flow. Possible setting: 5% … 50% in 5% steps. Factory setting: 20% Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10...
- Page 21 Relay active delay Active delays are used to prevent processes from being influenced by very short errors, warnings or changes in operating states. Select menu: WCM BMS R. active delay Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10...
- Page 22 COM and NC is open. Forced inactive The relay switching state is forced INACTIVE. The contact between COM and NO is open; the contact between COM and NC is closed. Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10...
-
Page 23: Settings For Pumps Without Suitable Display
CAUTION! Do not connect any modules and leave the setting in the “Stacked WCM” menu at “No”! WCM BMS Stacked WCM Settings for pumps without suitable display For pumps without a suitable display to show the configuration of the Wilo-Connect module BMS, default settings are active when the module is connected. Standard settings •... -
Page 24: Spare Parts
Spare parts Spare parts may be ordered via a local installer and/or Wilo customer service. To avoid queries and order er- rors, please supply all data on the rating plate of the module and pump with every order. - Page 25 Observe the locally applicable regulations! Please consult your local municipality, the nearest waste disposal site, or the dealer who sold the product to you for information on proper disposal. See www.wilo‑recycling.com for more information about recycling. Subject to change without prior notice!
- Page 26 DECLARATION OF CONFORMITY KONFORMITÄTSERKLÄRUNG Wilo-Connect module BMS We, the manufacturer, declare under our sole responsibility that the products of the series, Als Hersteller erklären wir unter unserer alleinigen Verantwortung, dass die Produkte der Baureihen, (The serial number is marked on the product site plate)
- Page 27 Wilo-Connect module BMS || 2014/35/EU - || 2014/30/EU - || 2011/65/EU + 2015/863 - WILO SE EN 60730-1:2016+A1:2019; EN IEC 61000-6-2:2019; EN IEC 61000-6-3:2021; EN IEC 63000:2018; Group Quality Wilopark 1 D-44263 Dortmund Nosotros, el fabricante, declaramos bajo nuestra exclusiva responsabilidad...
- Page 28 Vi, producenten, erklærer under vores eneansvar, at produkterne i serien, Wilo-Connect module BMS (Serienummeret er markeret på produktpladen) i deres leverede tilstand overholde følgende relevante direktiver og den relevante nationale lovgivning: || 2014/35/EU - Lavspændings || 2014/30/EU - Elektromagnetisk Kompatibilitet || 2011/65/EU + 2015/863 - Begrænsning af anvendelsen af visse farlige stoffer...
- Page 29 M s, ražot js, ar pilnu atbild bu pazi ojam, ka s rijas produkti, Wilo-Connect module BMS (S rijas numurs ir nor d ts uz izstr d juma pl ksn tes) pieg d t ja valst atbilst š d m attiec g m direkt v m un attiec giem valsts ties bu aktiem: || 2014/35/EU - Zemsprieguma || 2014/30/EU - Elektromagn tisk s Sader bas || 2011/65/EU + 2015/863 - par dažu...
- Page 30 Wilo-Connect module BMS || 2014/35/EU - H || 2014/30/EU - || 2011/65/EU + 2015/863 - WILO SE EN 60730-1:2016+A1:2019; EN IEC 61000-6-2:2019; EN IEC 61000-6-3:2021; EN IEC 63000:2018; Group Quality Wilopark 1 D-44263 Dortmund My, výrobce, prohlašujeme na základ naší jediné odpov dnosti, že produkty této ady,...
- Page 31 Noi, produc torul, declar m sub responsabilitatea noastr exclusiv c produsele din seria Wilo-Connect module BMS (Num rul serial este marcat pe pl cuta de identificare a produsului) în starea lor livrat , respect urm toarele directive relevante i legisla ia...
- Page 32 DECLARATION OF CONFORMITY Wilo-Connect module BMS We, the manufacturer, declare under our sole responsability that the products of the series, (The serial number is marked on the product site plate) in their delivered state comply with the following relevant directives and with the relevant national legislation: _ Electrical Equipment (Safety) Regulations (SI 2016 No.
