ETV Platinum Plus Communications Wiring
The ETV Platinum Plus can be connected to a network using either an internet (RINET), BACnet (IP or MSTP), or
ModBUS connection.

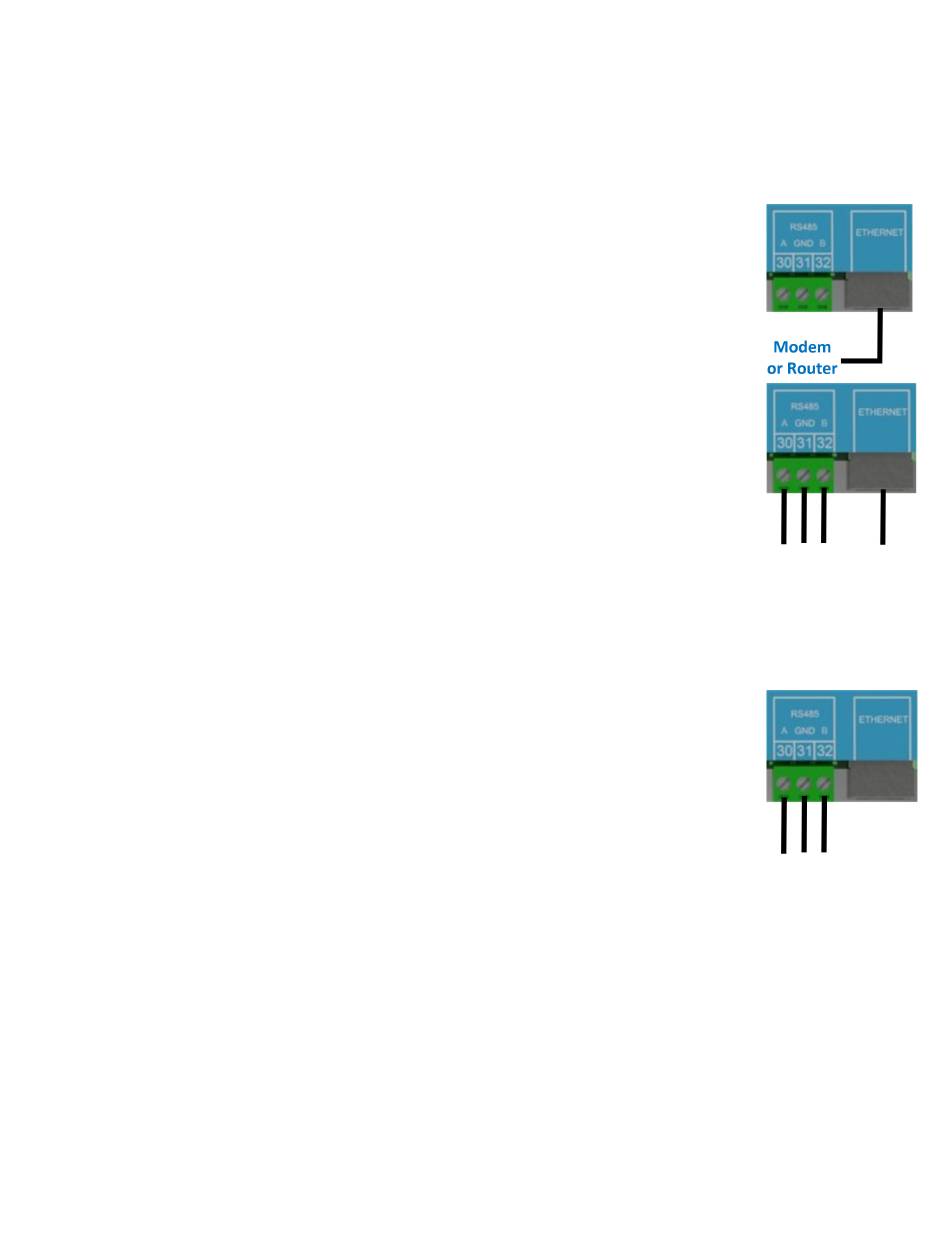

Internet (RINET) Communications Wiring
To connect the ETV Platinum Plus to the internet:
1. Run a CAT5 cable from the modem or router through a knockout located on the
bottom of the ETV Platinum Plus enclosure.
2. Connect the CAT5 cable to the Ethernet connector on the ETV Platinum Plus.
BACnet Communications Wiring
To connect the ETV Platinum Plus to a BACnet interface:
1. Run a CAT5 cable through a knockout located on the bottom of the ETV Platinum Plus
enclosure.
2. Connect the CAT5 cable to the Ethernet connector on the ETV Platinum Plus.
3. Run the BACnet connection wires through a knockout located on the bottom of the
ETV Platinum Plus enclosure.
4. Connect the positive (+) wire to terminal 30 on the ETV Platinum Plus.
5. Connect the ground wire to terminal 31 on the ETV Platinum Plus.
6. Connect the negative (–) wire to terminal 32 on the ETV Platinum Plus.
ModBUS Communications Wiring
To connect the ETV Platinum Plus to a ModBUS interface:
1. Run the ModBUS connection wires through a knockout located on the bottom of the
ETV Platinum Plus enclosure.
2. Connect the positive (+) wire to terminal 30 on the ETV Platinum Plus.
3. Connect the ground wire to terminal 31 on the ETV Platinum Plus.
4. Connect the negative (–) wire to terminal 32 on the ETV Platinum Plus.
Completing the ETS Optional Field Wiring
1. After all wiring to the ETV Platinum Plus is complete, replace the Enclosure wiring cover and secure it in
place with two screws.
2. Optionally secure the enclosure using a padlock with a maximum shank diameter of ⅛".
Heat‐Timer Corp.
ETV Platinum Plus Wiring 43
-
+ G
BMS - BACnet
-
+ G
BMS - ModBUS
059326‐00 Rev D
CAT5
