Controls, Indicators, and Connections

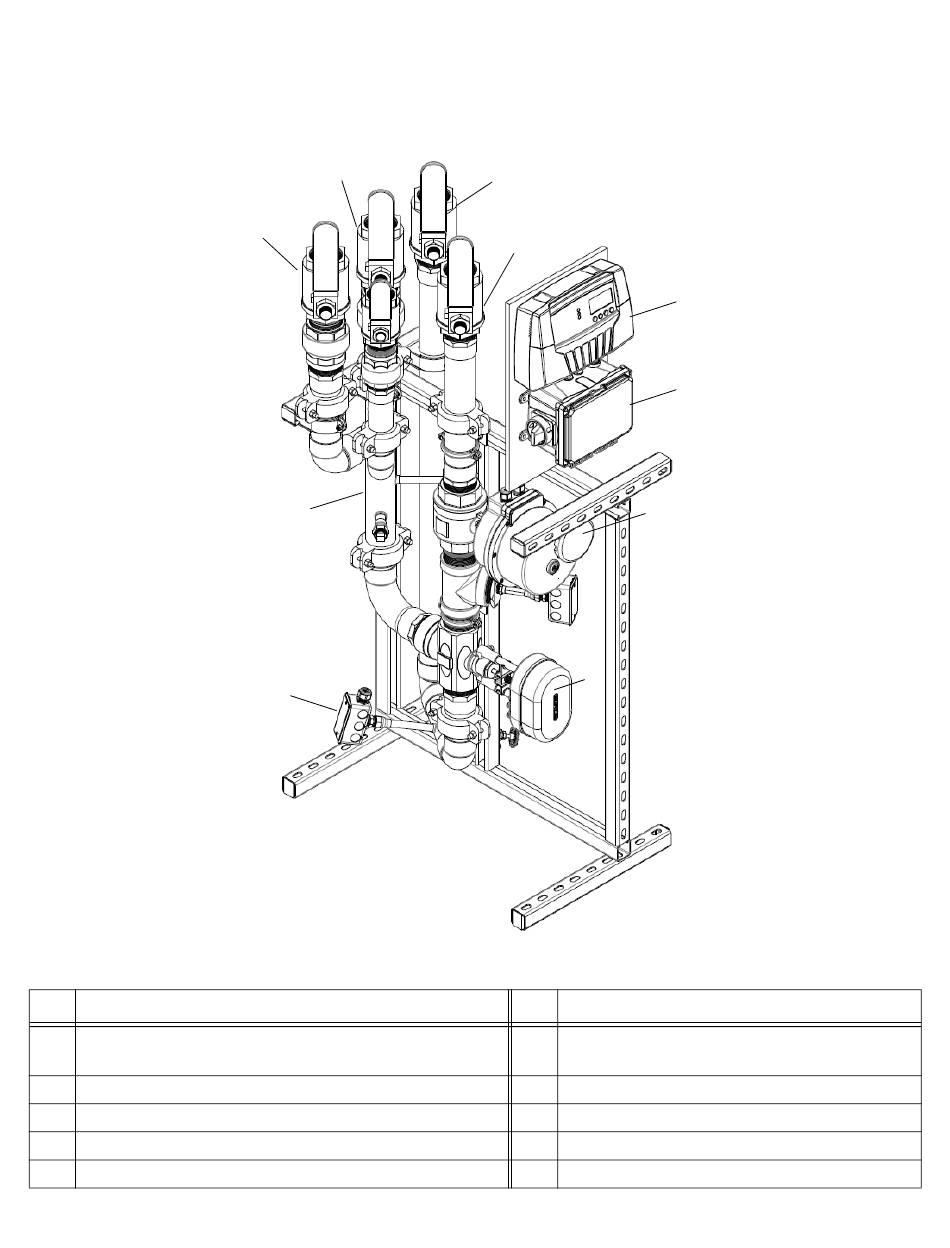

Figure 1: ETS Simplex (ETS‐15, ETS‐20, or ETS‐25) Controls, Indicators, and Connections
Item
1 Electronic Temperature Controller
(ETV Platinum Plus)
2 Disconnect Box with Transformer and Audible Alarm
3 Motorized Safety Valve
4 ETV Valve Body with Actuator
5 Temperature Sensor
059326‐00 Rev D
8
7
6
5
Description
9
10
3
4
Item
6 Recirculation Water Line
7 Boiler Feed Line
8 Cold Water Line
9 Tempered Water Line
10 Hot Water Line
1
2
Description
