1.2 ADS131B26Q1EVM-PDK Quick-Start Guide

The following instructions are a step-by-step guide to connecting the ADS131B26Q1EVM-PDK to the computer
and evaluating the performance of the ADS131B26-Q1:
1. Review the default jumper settings in
2. Connect the ADS131B26Q1EVM-PDK to the PHI controller. Install the two screws as indicated in
3. Connect the PHI controller to your PC using the provided USB micro cable. Three LEDs illuminate on the
PHI controller to indicate connectivity to the PC.
a. LED D5 lights up solid, indicating that the PHI is powered up.
b. LEDs D1 and D2 start blinking at different rates to indicate that the PHI is booted up and communicating
with the PC. Figure 1-1

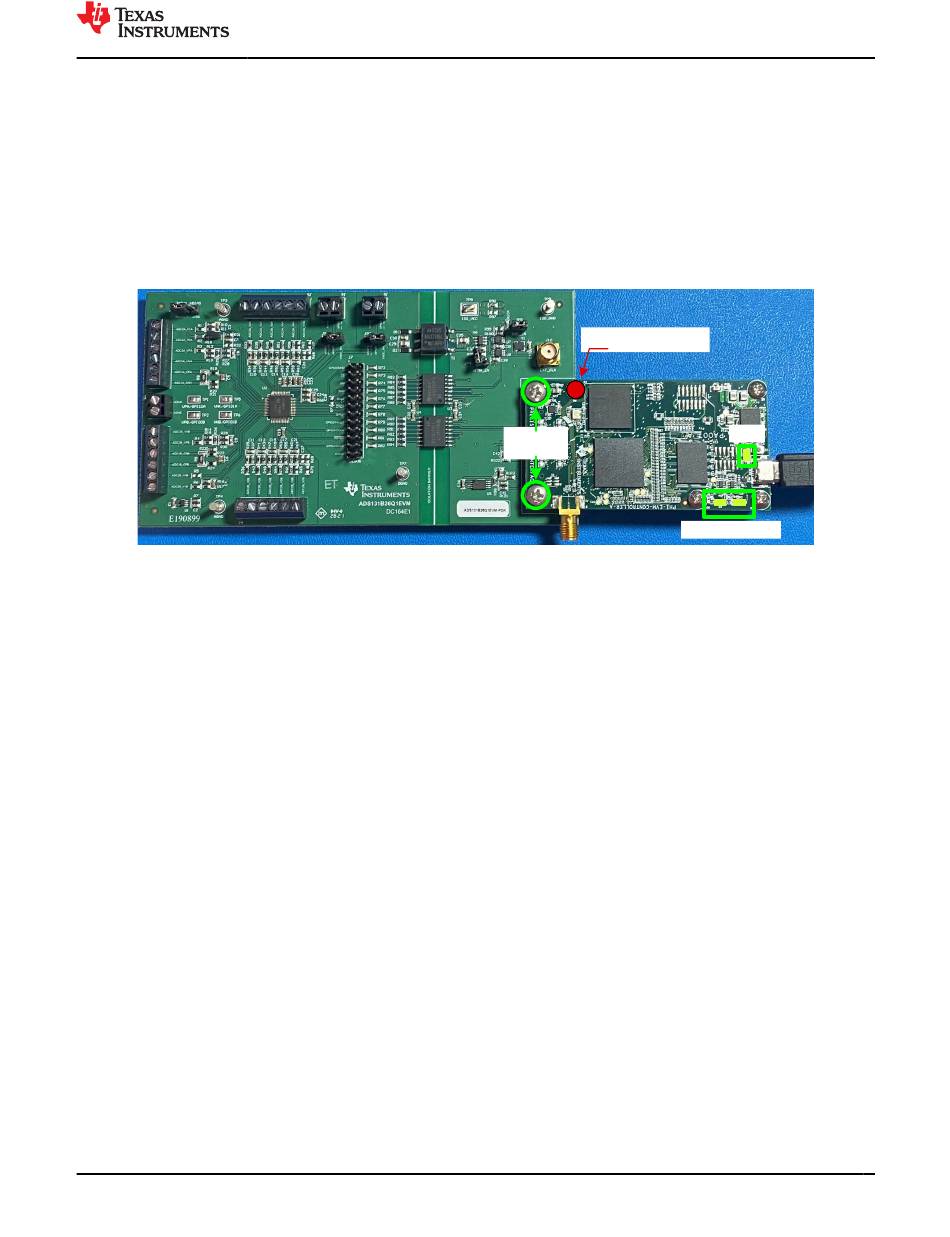

Figure 1-1. ADS131B26Q1EVM-PDK PHI Connection and LED Indicators
4. Launch the ADS131B26Q1EVM-PDK GUI software and power is supplied to the EVM. The default
installation path is C:\Program Files (x86)\Texas Instruments\ADS131B26-Q1 EVM.
5. When the GUI finishes loading and is connected to the EVM hardware, the screen appears as illustrated in
Figure 6-1. The GUI consists of multiple Pages, which include:
• Register Map Config
• Time Domain Display
• Spectral Analysis
• Histogram Analysis
• Channel Configurations
• Sequencer Configurations
Below the Pages section are the basic SPI op-code commands, the Data Capture Configuration controls,
and the current Clocks and Data Rate information.
controls.

2 Analog Interface

The ADS131B26Q1EVM-PDK is designed for easy and complete evaluation of the ADS131B26-Q1 using
external voltage, current, and temperature sensor inputs. This section details the analog front-end circuitry,
including jumper configurations, terminal block connectors, and test points for different input test signals.
SBAU413 – OCTOBER 2022
Submit Document Feedback
Section 5.1 and GUI software installation in
shows the resulting LED indicators.
Section 6.1
Copyright © 2022 Texas Instruments Incorporated
Section
Remove post
Install
D1 and D2
details the EVM GUI pages and data capture
ADS131B26Q1EVM-PDK Evaluation Module
EVM Overview
5.2.
Figure 1-1.
D5
5
