5 ADS131B26Q1EVM-PDK Initial Setup

This section explains the initial hardware and software setup procedure that must be completed in order to
properly operate the ADS131B26Q1EVM-PDK.

5.1 Default Jumper Settings

After unpacking, the EVM is configured with the default jumper settings.
default jumpers and Table 5-1
Designator
JP1
JP2
JP3
JP4
JP5
SBAU413 – OCTOBER 2022
Submit Document Feedback
shows the functions of the default shunts.

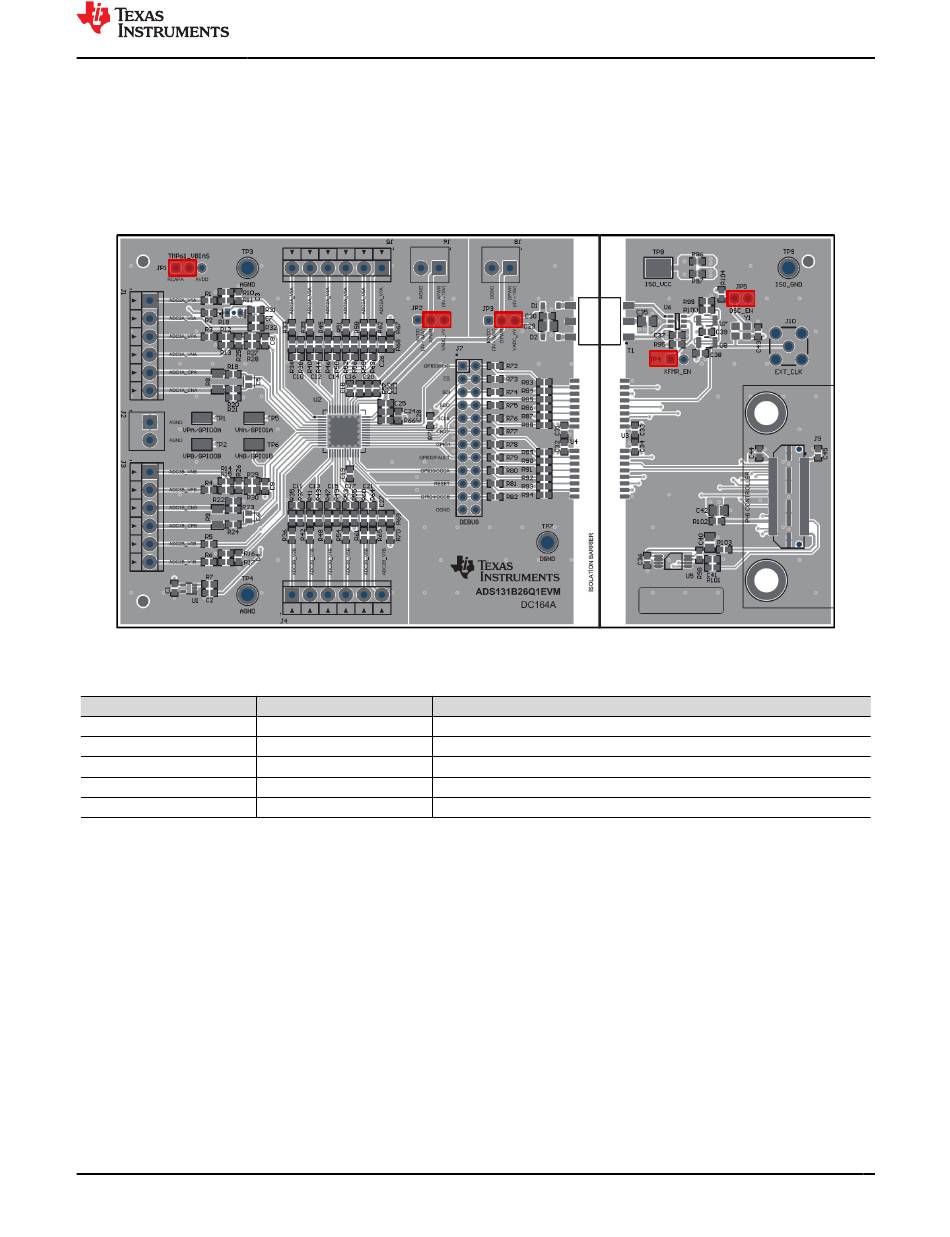

Figure 5-1. ADS131B26Q1-PDK Jumper Default Settings

Table 5-1. Default Jumper Settings

Position
[1-2] RCAPA is selected as bias voltage for the TMP61
[2-3] Selects the transformer output as the APWR supply
[2-3] Selects the transformer output as the DPWR supply
Not installed The transformer driver is enabled
Installed The onboard crystal oscillator is disabled
Copyright © 2022 Texas Instruments Incorporated
ADS131B26Q1EVM-PDK Initial Setup
Figure 5-1 shows the locations for the
Function
ADS131B26Q1EVM-PDK Evaluation Module 13
