User's Guide

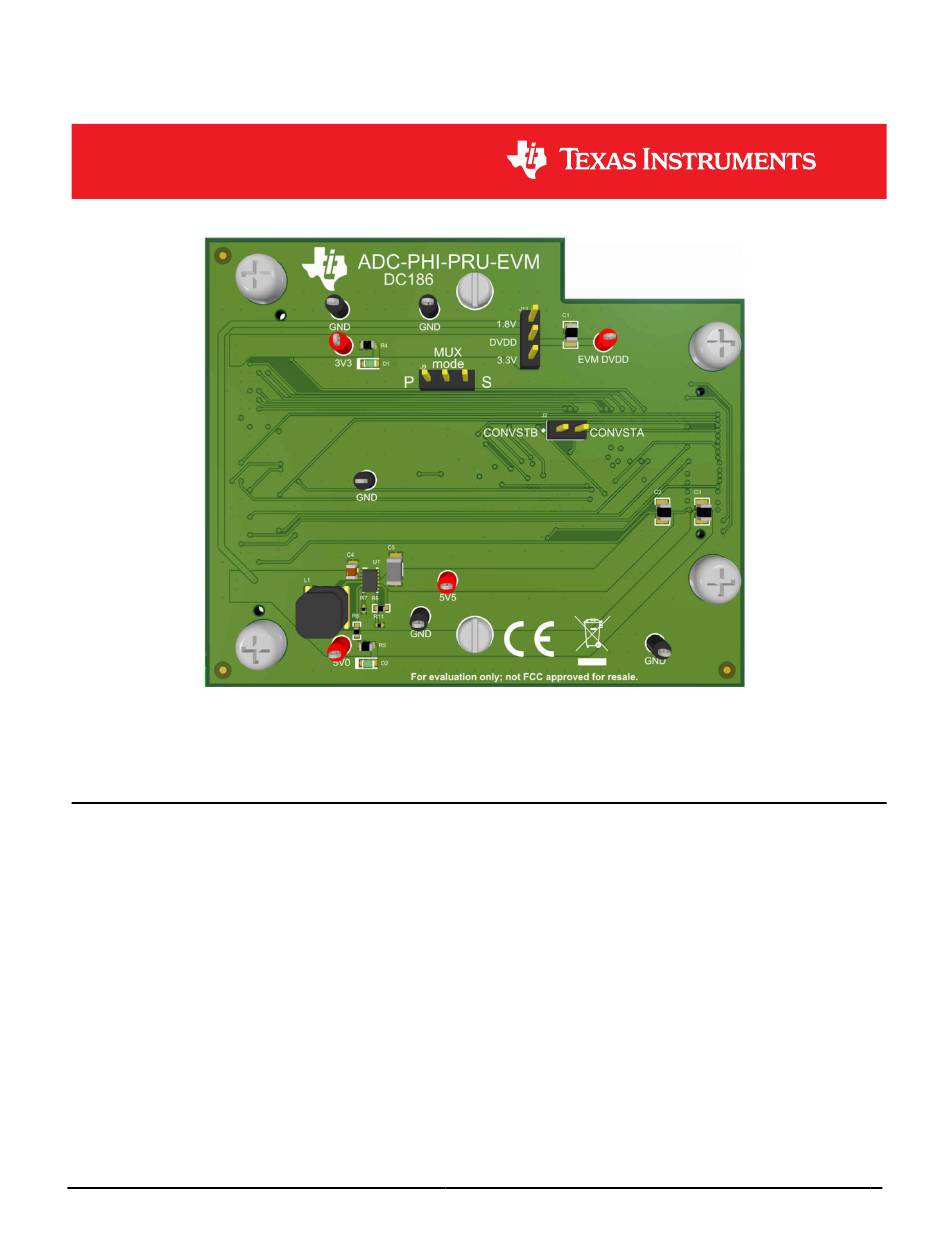

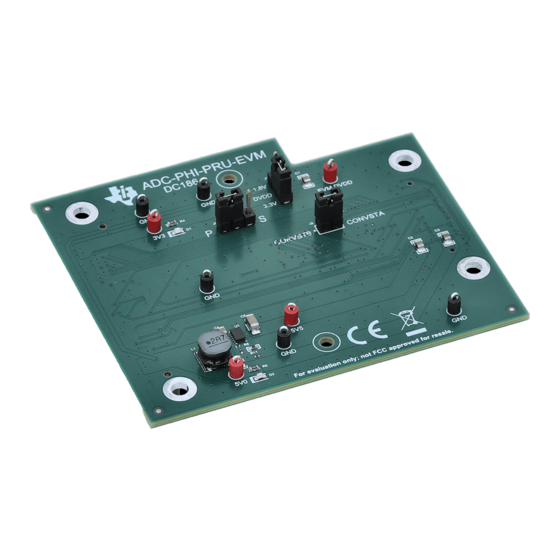

ADC-PHI-PRU-EVM Evaluation Module
This user's guide contains information and support documentation for the ADC-PHI-PRU-EVM evaluation
module (EVM). Included are the circuit description, schematic, and bill of materials of the ADC-PHI-PRU-EVM.
Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the
ADC-PHI-PRU-EVM.
SBAU396 – MAY 2022
Submit Document Feedback
ABSTRACT
Copyright © 2022 Texas Instruments Incorporated
ADC-PHI-PRU-EVM Evaluation Module
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADC-PHI-PRU-EVM and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments ADC-PHI-PRU-EVM

Summary of Contents for Texas Instruments ADC-PHI-PRU-EVM

  • Page 1 This user's guide contains information and support documentation for the ADC-PHI-PRU-EVM evaluation module (EVM). Included are the circuit description, schematic, and bill of materials of the ADC-PHI-PRU-EVM. Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the ADC-PHI-PRU-EVM.

  • Page 2: Table Of Contents

    List of Tables Table 1-1. ADC-PHI-PRU-EVM Compatible Precision ADC EVMs..................... Table 3-1. ADC-PHI-PRU-EVM Serial Mode QSH Connector Signal Routing to the AM64x and AM24x........Table 3-2. ADC-PHI-PRU-EVM Parallel Mode QSH Connector Signal Routing to the AM64x and AM24x........ Table 4-1. Bill of Materials................................17...

  • Page 3: Introduction

    Introduction 1 Introduction ™ The ADC-PHI-PRU-EVM evaluation adapter card interfaces the Sitara AM64x processor (TMDS64GPEVM) or AM243x MCU (TMDS243GPEVM) development platforms to greater than 25 precision ADC EVMs for communication, data capture, and software development. The adapter card routes the ICSSG-PRU signals to the corresponding serial (SPI and eSPI) or parallel ADC data communication interfaces.

  • Page 4: Adc-Phi-Pru-Evm Overview

    2 ADC-PHI-PRU-EVM Overview Figure 2-1 shows the two main connectors of the ADC-PHI-PRU-EVM adapter card. The 150-pin high-speed expansion (HSE) connector is on the left and mates with the AM64x and AM243x general purpose (GP) development platform HSE connectors. The 60-pin Q-strip (QSH) connector is on the right and mates with the...

  • Page 5: Adc-Phi-Pru-Evm Circuitry

    The PA007 board outputs 5.5 V, which is commonly used for the analog supplies, and either 3.3 V or 1.8 V for digital, I/O, and EEPROM supplies. To match the supply voltages, the ADC-PHI-PRU-EVM converts and routes the 5-V, 3.3-V, and 1.8-V supplies that are featured on the HSE connector to the QSH connector.

  • Page 6: Mux Circuitry

    EVM GUI. There are two SN74CBTLV16292VR digital multiplexer (MUX) devices on the ADC-PHI-PRU-EVM that route the proper signals from the AM64x and AM243x EVMs (TMDS64GPEVM and TMDS243GPEVM) to communicate with either the parallel or serial precision ADC EVMs.

  • Page 7: Board Mating Connections

    3.3 Board Mating Connections Table 3-1 Table 3-2 list the AM64x and AM24x signals that are routed to the ADC-PHI-PRU-EVM QSH connector from the HSE connector. Table 3-1. ADC-PHI-PRU-EVM Serial Mode QSH Connector Signal Routing to the AM64x and AM24x...

  • Page 8: Table 3-2. Adc-Phi-Pru-Evm Parallel Mode Qsh Connector Signal Routing To The Am64X And Am24X

    ADC-PHI-PRU-EVM Circuitry www.ti.com Table 3-2. ADC-PHI-PRU-EVM Parallel Mode QSH Connector Signal Routing to the AM64x and AM24x Signal Name Pin Number Pin Number Signal Name 5.5V DGND PRU0_GPIO15 — PRU0_GPIO14 — PRU0_GPIO13 — PRU0_GPIO12 — PRU0_GPIO11 — PRU0_GPIO10 — PRU0_GPIO9 —...

  • Page 9: Schematics, Pcb Layout, And Bill Of Materials

    Schematics, PCB Layout, and Bill of Materials 4 Schematics, PCB Layout, and Bill of Materials The following sections contain images with the full schematics and layout prints, as well as a bill of materials table, for the circuitry on the ADC-PHI-PRU-EVM. 4.1 Schematics Figure 4-1 Figure 4-4 illustrate the schematics for the ADC-PHI-PRU-EVM.

  • Page 10: Figure 4-2. Adc-Phi-Pru-Evm Mux Schematic Page

    10B1 GPIO19s 10B2 10B2 GPIO15p 11B1 11B1 GPIO15s 11B2 11B2 PRU1_17p 12B1 12B1 PRU1_17s 12B2 12B2 SN74CBTLV16292VR SN74CBTLV16292VR Figure 4-2. ADC-PHI-PRU-EVM MUX Schematic Page ADC-PHI-PRU-EVM Evaluation Module SBAU396 – MAY 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...

  • Page 11: Figure 4-3. Adc-Phi-Pru-Evm Connectors Schematic Page

    DGND HSE_GPIO0_39 HSE_GPIO0_41 HSE_GPIO0_38 VIN_3V3 DGND PRG0_PRU1_GPIO10 VIN_3V3 DGND PRG0_PRU1_GPIO17 PRG0_PRU0_GPIO9 DGND VIN_3V3 PRG0_PRU0_GPIO10 DGND DGND DGND DGND Figure 4-3. ADC-PHI-PRU-EVM Connectors Schematic Page SBAU396 – MAY 2022 ADC-PHI-PRU-EVM Evaluation Module Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...

  • Page 12: Figure 4-4. Adc-Phi-Pru-Evm Hardware Schematic Page

    These assemblies must be clean and free from flux and all contaminants. Use of no clean flux is not acceptable. Label Assembly Note This Assembly Note is for PCB labels only Figure 4-4. ADC-PHI-PRU-EVM Hardware Schematic Page ADC-PHI-PRU-EVM Evaluation Module SBAU396 – MAY 2022 Submit Document Feedback Copyright ©...

  • Page 13: Adc-Phi-Pru-Evm Layout

    Schematics, PCB Layout, and Bill of Materials 4.2 ADC-PHI-PRU-EVM Layout Figure 4-5 Figure 4-8 illustrate the layout for the ADC-PHI-PRU-EVM. Figure 4-5. ADC-PHI-PRU-EVM Layout Layer 1 SBAU396 – MAY 2022 ADC-PHI-PRU-EVM Evaluation Module Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...

  • Page 14: Figure 4-6. Adc-Phi-Pru-Evm Layout Layer 2

    Schematics, PCB Layout, and Bill of Materials www.ti.com Figure 4-6. ADC-PHI-PRU-EVM Layout Layer 2 ADC-PHI-PRU-EVM Evaluation Module SBAU396 – MAY 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...

  • Page 15: Figure 4-7. Adc-Phi-Pru-Evm Layout Layer 3

    Schematics, PCB Layout, and Bill of Materials Figure 4-7. ADC-PHI-PRU-EVM Layout Layer 3 SBAU396 – MAY 2022 ADC-PHI-PRU-EVM Evaluation Module Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...

  • Page 16: Figure 4-8. Adc-Phi-Pru-Evm Layout Layer 4

    Schematics, PCB Layout, and Bill of Materials www.ti.com Figure 4-8. ADC-PHI-PRU-EVM Layout Layer 4 ADC-PHI-PRU-EVM Evaluation Module SBAU396 – MAY 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...

  • Page 17: Bill Of Materials

    56-Pin TVSOP T/R H1, H2, H3, H4 Machine Screw, Round, #4-40 × 1/4, Nylon, Philips Pan Head Screw NY PMS 440 0025 PH B&F Fastener Supply SBAU396 – MAY 2022 ADC-PHI-PRU-EVM Evaluation Module Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
