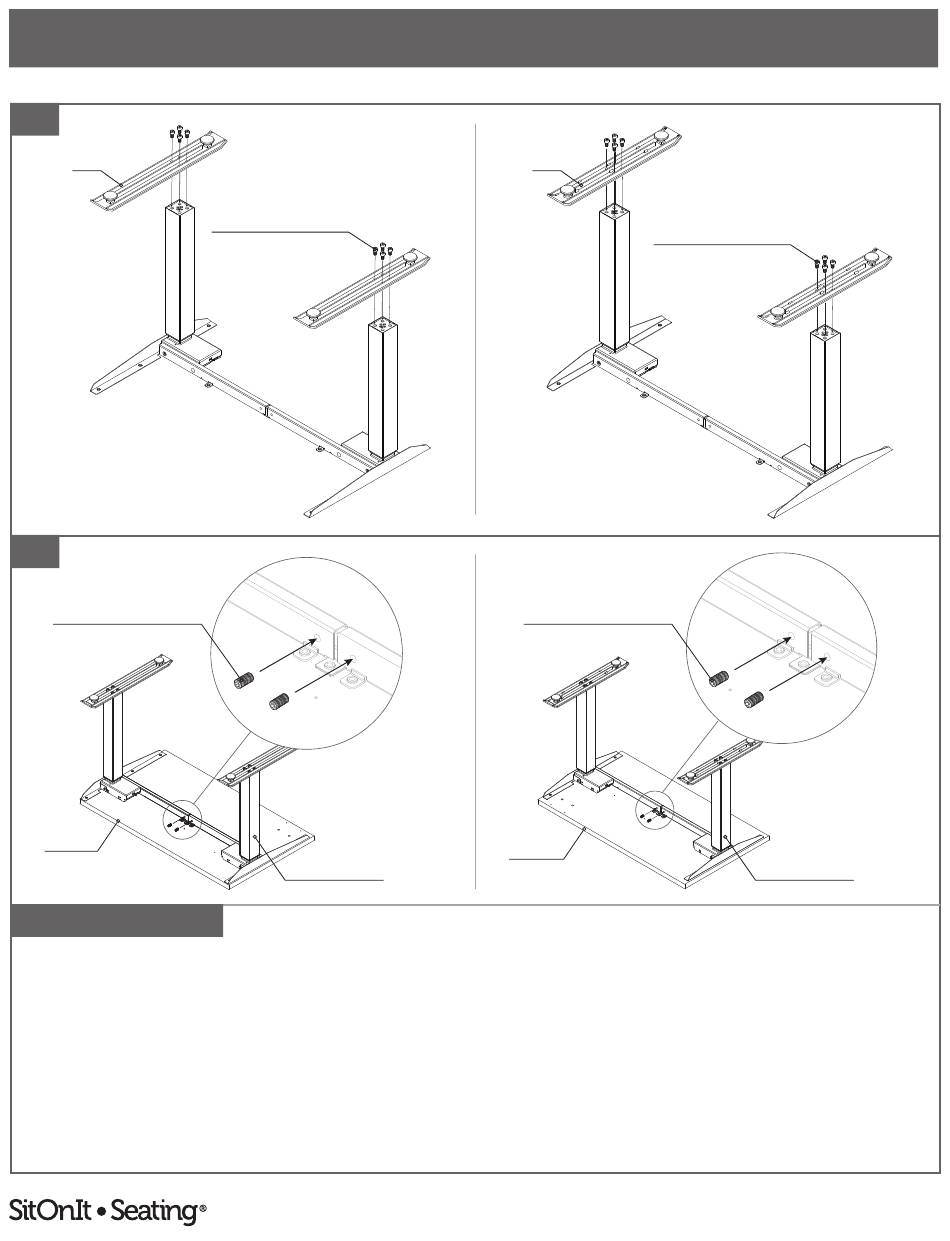

SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS
5 C-LEG
Foot
6 C-LEG
M10 × 17 mm Set Screw
Tabletop
STEPS
5. Install table feet using four M10 ×16 mm screws per leg using the 5 mm hex L-key.
NOTE: When assembling C style legs, make sure the top supports and feet are extended in the same direction
as illustrated.
6. Place the frame assembly onto the underside of the tabletop and extend the frame to the length indicated by the
pilot holes. Once the legs are located, center the U-pipe and fasten the two M10 × 17 mm set screws as shown.
M10 × 16 mm Screw
Frame Assembly
