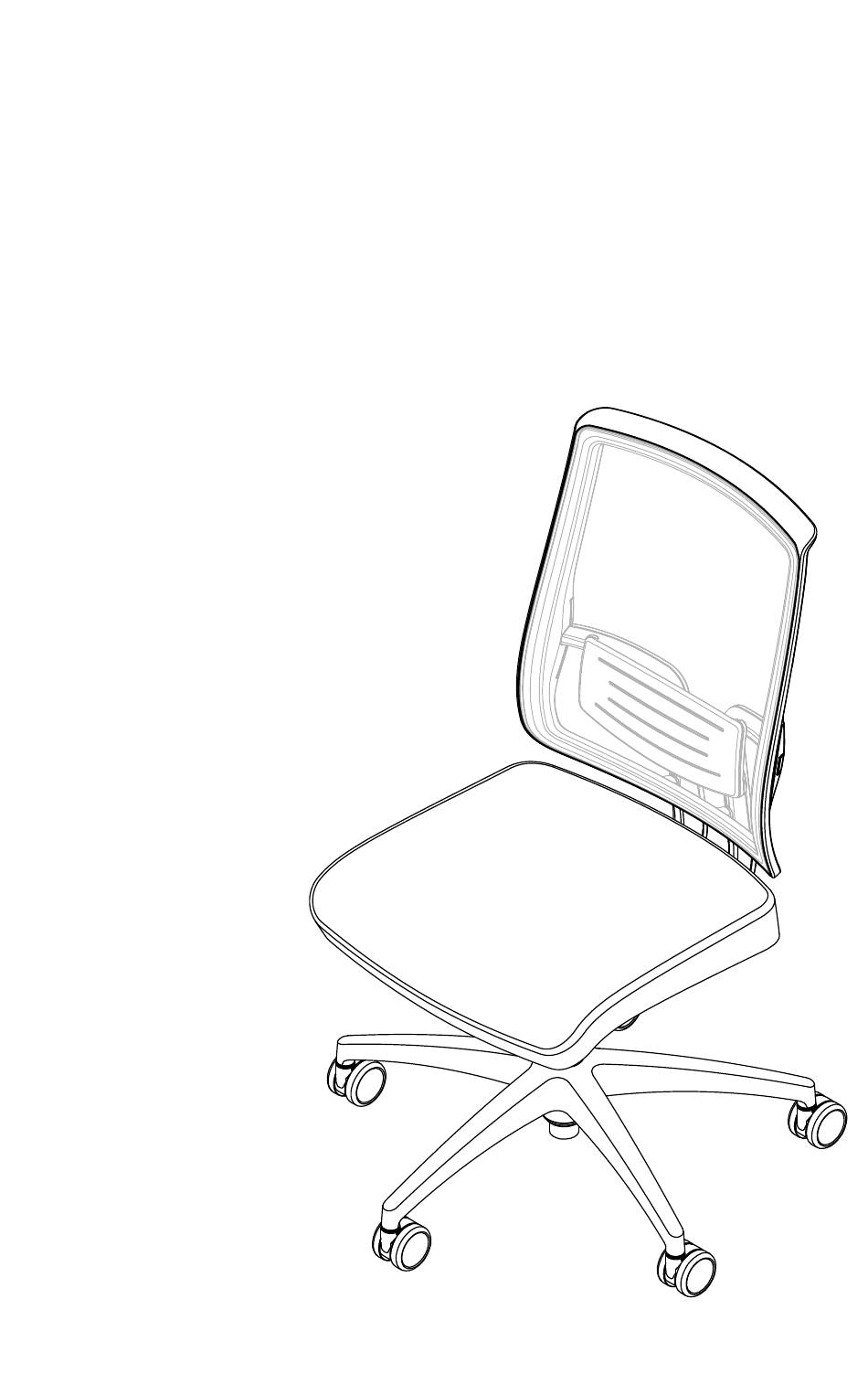

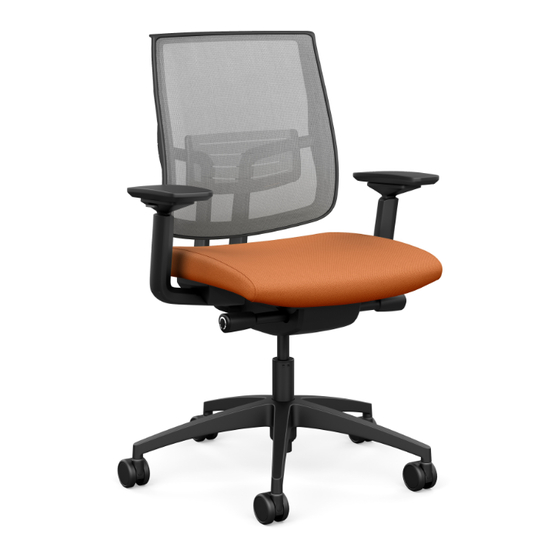

Focus 2.0
TASK CHAIR AND TASK STOOL
ASSEMBLY INSTRUCTIONS
Focus reimagined.
Updated. Upgraded. Up to any
task. There's a legacy that follows
Focus. Some call it classic. Others
say it's iconic. It's been one of the
industry's best-selling chairs for
10+ years—and it's time we make
something great even better.
|
|
1
C6585 Rev A
www.sitonit.net
Advertisement
Related Manuals for SitOnit Seating Focus 2.0
Summary of Contents for SitOnit Seating Focus 2.0
- Page 1 Focus 2.0 TASK CHAIR AND TASK STOOL ASSEMBLY INSTRUCTIONS Focus reimagined. Updated. Upgraded. Up to any task. There’s a legacy that follows Focus. Some call it classic. Others say it’s iconic. It’s been one of the industry’s best-selling chairs for 10+ years—and it’s time we make...
-
Page 2: Recommended Tools
Focus 2.0 ASSEMBLY INSTRUCTIONS Read the entire instruction manual before you start installation and assembly. If you Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. - Page 3 Focus 2.0 ASSEMBLY INSTRUCTIONS Parts • • Swivel-Tilt or Basic Mechanism (1) Enhanced Synchro Mechanism With Optional Seat-Depth Adjustment (1) • ⁄ " × 1½" Screw (4) • ⁄ " × ¾" Screw (3) • 0.317" Washer (4) • 0.317" Washer (3)
- Page 4 Focus 2.0 ASSEMBLY INSTRUCTIONS Step 1: Place seat/mechanism assembly on a firm, flat elevated surface. Swivel-tilt mechanism or basic mechanism The chair's shipping box or a sturdy table may be used for this step. C6543 Rev B www.sitonit.net...
- Page 5 Focus 2.0 ASSEMBLY INSTRUCTIONS Step 1: Place seat/mechanism assembly on a firm, flat elevated surface. Enhanced synchro mechanism The chair's shipping box or a sturdy table may be used for this step. C6543 Rev B www.sitonit.net...
- Page 6 Focus 2.0 ASSEMBLY INSTRUCTIONS Step 2: Align the Y-support on top of the mechanism. Swivel-tilt mechanism or basic mechanism C6543 Rev B www.sitonit.net...
- Page 7 Focus 2.0 ASSEMBLY INSTRUCTIONS Step 2: Slide the Y-support into the mechanism and align it with the hole pattern. Enhanced synchro mechanism C6543 Rev B www.sitonit.net...
- Page 8 Focus 2.0 ASSEMBLY INSTRUCTIONS Step 3: Secure the back assembly to the mechanism. Swivel-tilt mechanism or basic mechanism ⁄ " × 1½" Screw 0.317" Washer Minimum torque of 150 in-lbs TOOLS 1:1 HARDWARE ½" Hex Socket ⁄ " × 1½" Screw 0.317"...
- Page 9 Focus 2.0 ASSEMBLY INSTRUCTIONS Step 3: Secure the back assembly to the mechanism. Enhanced synchro mechanism ⁄ " × ¾" Screw 0.317" Washer Minimum torque of 150 in-lbs TOOLS 1:1 HARDWARE ⁄ " × ¾"Screw ⁄ " Hex L-Key 0.317" Washer C6543 Rev B www.sitonit.net...
- Page 10 Focus 2.0 ASSEMBLY INSTRUCTIONS Step 4: Insert the cylinder into the base and press down to seat it. C6543 Rev B www.sitonit.net...
- Page 11 Focus 2.0 ASSEMBLY INSTRUCTIONS Step 5 (Optional): Remove the protective spacer under the stool ring and slide the cylinder into the base. Push down to seat it. C6543 Rev B www.sitonit.net...
- Page 12 Focus 2.0 ASSEMBLY INSTRUCTIONS Step 6: Align the seat assembly with the cylinder and push until seated The cylinder is seated correctly when you can lift the chair and the cylinder stays attached to the seat assembly. C6543 Rev B...
