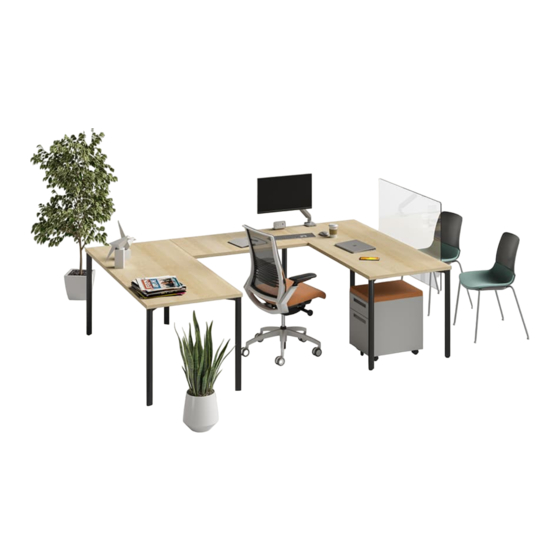

TENSOR - MAIN DESK ASSEMBLY INSTRUCTIONS
IMPORTANT: PLEASE READ ALL INSTRUCTIONS BEFORE STARTING ASSEMBLY.

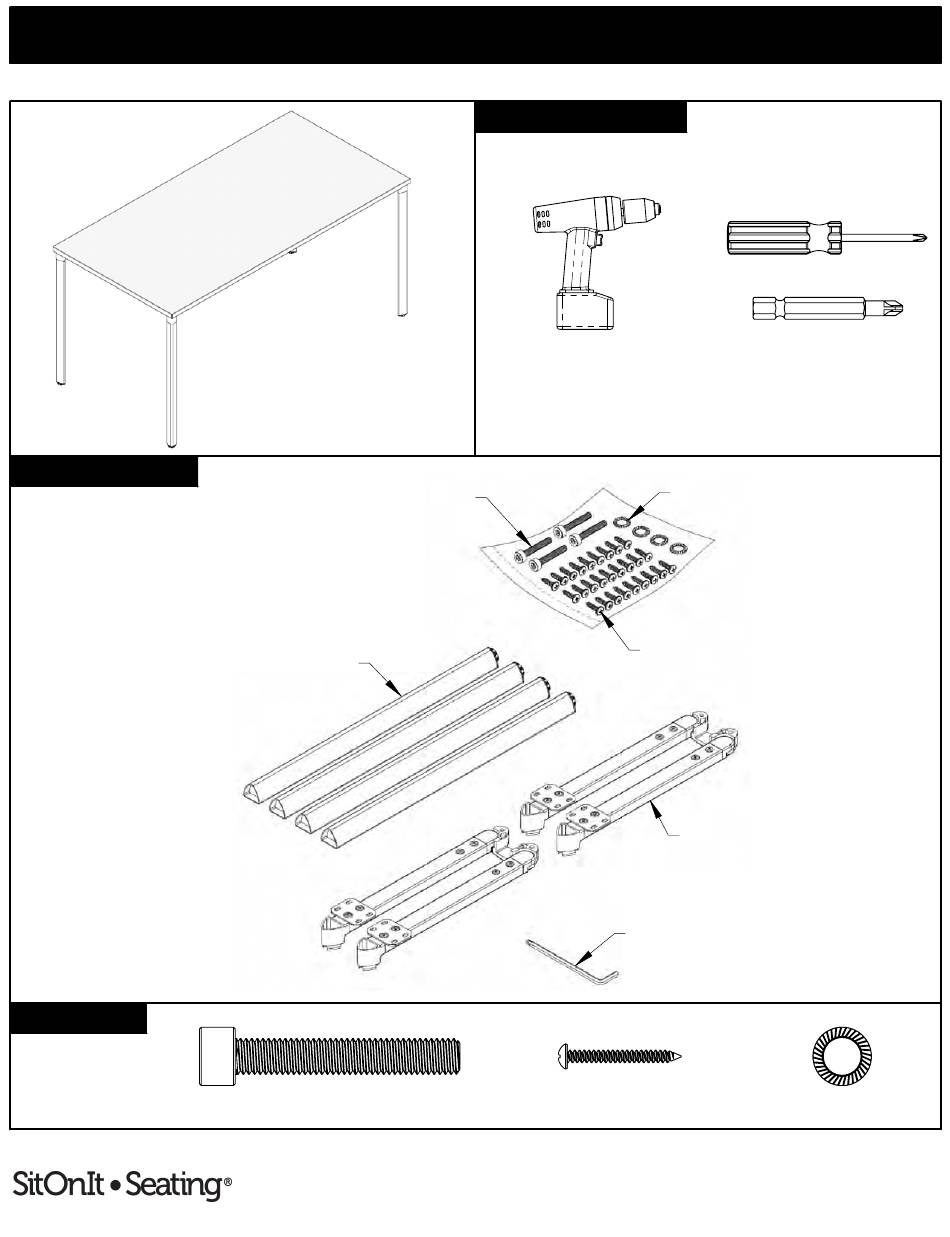

COMPONENTS
1:1 SCALE
To report any issues with this product, please contact our customer service department at (888) 552-5699
Round & Square
Versions Also Available
4x M8x50mm Socket
Head Cap Screw
4x Leg
M8x50mm Socket Head Cap Screw
For more information, visit www.sitonit.net
REQUIRED TOOLS
Cordless Drill/Driver
(Do not over-tighten scews)
27x M6x25mm Phil Button
Head Wood Screw
6mm Allen Key
M6x25mm Phil Button
Head Wood Screw
#2 Phillips Screwdriver or Bit
4x M8 Spring Lock Washer
2x Frame
M8 Spring Lock Washer
No. C6256 Rev. A
Date: 10/24/2019
Advertisement
Related Manuals for SitOnit Seating TENSOR
Summary of Contents for SitOnit Seating TENSOR
- Page 1 TENSOR - MAIN DESK ASSEMBLY INSTRUCTIONS IMPORTANT: PLEASE READ ALL INSTRUCTIONS BEFORE STARTING ASSEMBLY. REQUIRED TOOLS #2 Phillips Screwdriver or Bit Cordless Drill/Driver (Do not over-tighten scews) Round & Square Versions Also Available COMPONENTS 4x M8 Spring Lock Washer 4x M8x50mm Socket...
- Page 2 TENSOR - MAIN DESK ASSEMBLY INSTRUCTIONS M8x50mm M8 Washer Serrated Side Of Washer Facing Up Allen Key Steps: Install leg onto frame per illustration. Ensure the leg is fully seated onto frame before tightening. Install M8x50mm screw with washer using provided Allen key.
- Page 3 TENSOR - MAIN DESK ASSEMBLY INSTRUCTIONS M6x25 Small Support Beam (For rectangular tables only; see chart below) Rectangular Tables # of M6x25 Table Length Support Bar Type Wood Screws 36" 42" 48" Small 54" Small 60" Small 66" Small 72"...
- Page 4 TENSOR - MAIN DESK ASSEMBLY INSTRUCTIONS M6x25 Steps: Align one frame assembly on 10 pilot holes (spanning the support beam when present). Install (10) M6x25mm wood screws; do not fully tighten. Once all screws have been started and leg alignment is confirmed, fully tighten screws.
- Page 5 TENSOR - MAIN DESK ASSEMBLY INSTRUCTIONS 6mm Allen Key Steps: Using provided 6mm Allen key, tighten (4) screws as shown Using appropriate assistance, place table upright. To report any issues with this product, please contact our customer service department at (888) 552-5699 No.
- Page 6 PILOT HOLE TEMPLATE 18" RECTANGULAR 18" -LH 18" -RH...
- Page 7 PILOT HOLE TEMPLATE 24" RECTANGULAR 24" -LH 24" -RH...
- Page 8 PILOT HOLE TEMPLATE 30" RECTANGULAR 30"-LH 30"-RH...
- Page 9 PILOT HOLE TEMPLATE SQUARE TOP SIZE 30 X 30 3.17" 36 X 36 3.36" 42 X 42 7.50" 48 X 48 11.64" PILOT HOLE TEMPLATE ROUND TOP SIZE 2.94" 5.39"...
-
Page 10: Required Tools
TENSOR - RETURN DESK ASSEMBLY INSTRUCTIONS IMPORTANT: PLEASE READ ALL INSTRUCTIONS BEFORE STARTING ASSEMBLY. REQUIRED TOOLS Cordless Drill/Driver #2 Phillips Screwdriver or Bit (Do not over-tighten screws) COMPONENTS 2x M8x50mm Socket 2x M8 Spring Lock Washer Head Cap Screw 6mm Allen Key 54"... - Page 11 TENSOR - RETURN DESK ASSEMBLY INSTRUCTIONS M8x50mm M8 Washer (Serrated side of washer facing up) Allen key Steps: Install leg onto frame per illustration. Ensure the leg is fully seated onto frame before tightening. Install M8x50mm screw with washer using provided Allen key.
- Page 12 TENSOR - RETURN DESK ASSEMBLY INSTRUCTIONS M6x25 Steps: Align frame assembly on 10 pilot holes. Install (10) M6x25mm wood screws; do not fully tighten. Once all screws have been started and leg alignment is confirmed, fully tighten screws. To report any issues with this product, please contact our customer service department at (888) 552-5699 No.
- Page 13 TENSOR - RETURN DESK ASSEMBLY INSTRUCTIONS 6mm Allen Key Steps: Using provided 6mm Allen key, tighten (2) screws as shown. To report any issues with this product, please contact our customer service department at (888) 552-5699 No. C6257 Rev. A...
- Page 14 TENSOR - RETURN DESK ASSEMBLY INSTRUCTIONS M6x25 Note: Use this mending plate for returns 36", 42" and 48" long. Steps: Locate the mending plate as near to the center of the return location as possible. The location may vary based on the table width.
- Page 15 TENSOR - RETURN DESK ASSEMBLY INSTRUCTIONS M6x25 Steps: Place table upright and position to accept return. Place the return in position on the mending brackets and install the remaining (4) screws with the table upright. To report any issues with this product, please contact our customer service department at (888) 552-5699 No.
- Page 16 TENSOR - RETURN DESK ASSEMBLY INSTRUCTIONS M6x25 Note: Use these mending plates for returns 54" and 60" long. Steps: Discard the mending plate and associated screws from the base carton and use the mending kit provided separately. Locate the first mending plate 1" from the edge of the return location as shown.
- Page 17 TENSOR - RETURN DESK ASSEMBLY INSTRUCTIONS 1" M6x25 Steps: Place table upright and position to accept return. Place the return in position on the mending brackets and install the remaining (8) screws with the table upright. To report any issues with this product, please contact our customer service department at (888) 552-5699 No.
- Page 18 PILOT HOLE TEMPLATE 24" RECTANGLE 24" - LH 24" - RH...
- Page 19 TENSOR - BRIDGE DESK ASSEMBLY INSTRUCTIONS IMPORTANT: PLEASE READ ALL INSTRUCTIONS BEFORE STARTING ASSEMBLY. REQUIRED TOOLS Cordless Drill/Driver #2 Phillips Screwdriver or Bit (Do not over-tighten screws) COMPONENTS 4X Mending Plate 32X M6 X 18mm 1:1 SCALE M6x18mm Phil Button...
- Page 20 TENSOR - BRIDGE DESK ASSEMBLY INSTRUCTIONS M6x18 54" and 60" Bridge Units Add the external stiffener to the bridge unit as near to the center of the table as the placement of the mending brackets will allow. In some cases, a mending bracket hole may be covered by the table frame and the attachment screw may be omitted.
- Page 21 TENSOR - BRIDGE DESK ASSEMBLY INSTRUCTIONS M6x18 Steps: Place the bridge in position on the mending brackets between the table surfaces. From under the table, attach the top to the mending brackets using the (16) remaining screws. To report any issues with this product, please contact our customer service department at (888) 552-5699 No.
