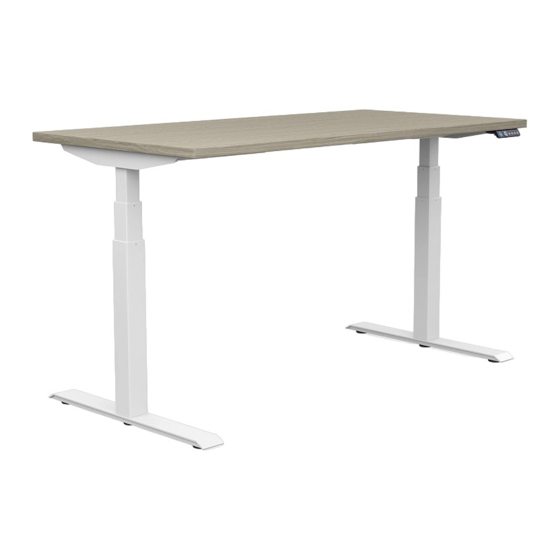

SitOnit Seating Switchback Instruction Sheet

Home edition height-adjustable desk
Hide thumbs Also See for Switchback:

Advertisement

Quick Links

Download this manual

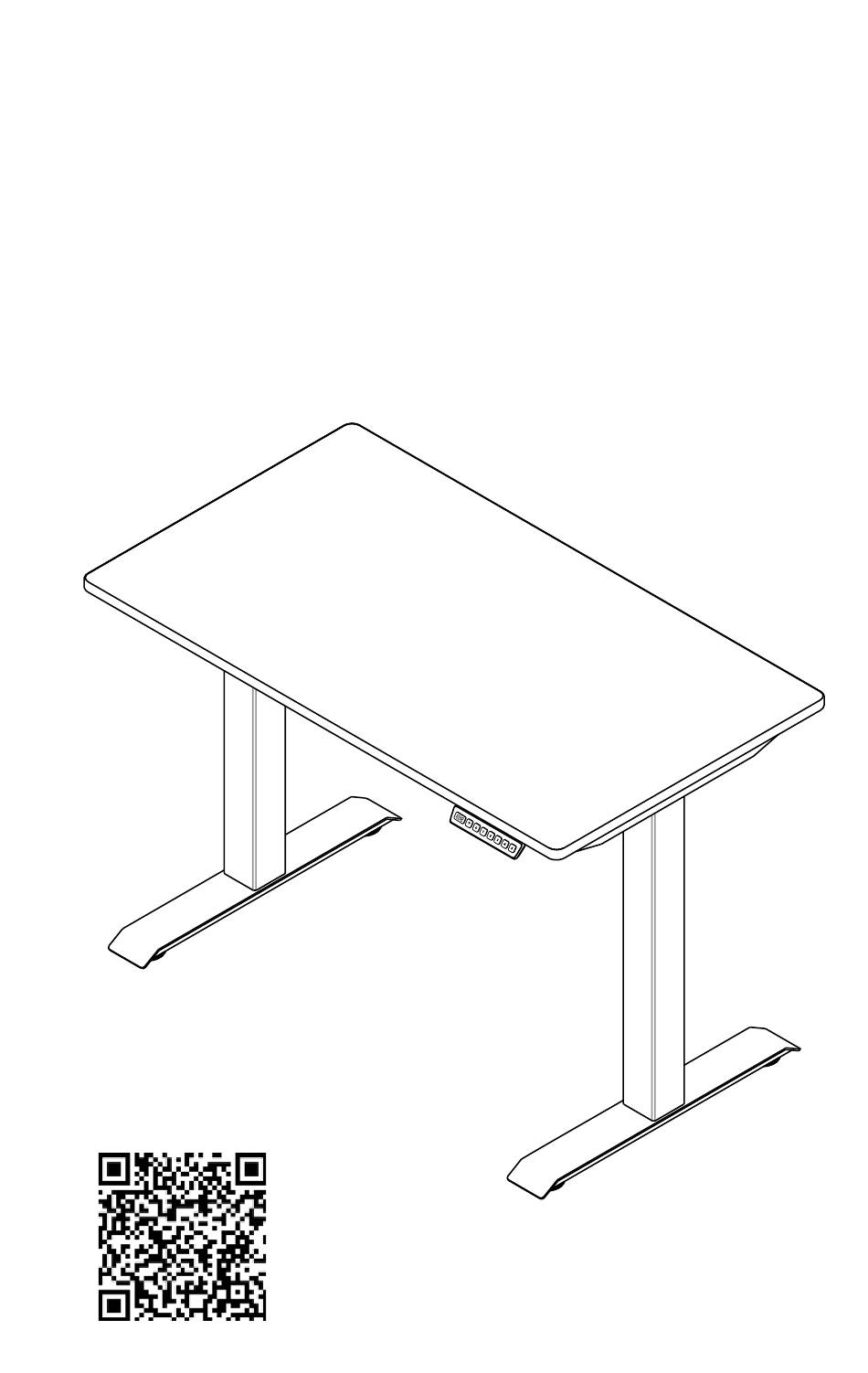

Switchback
HOME EDITION HEIGHT ADJUSTABLE DESK
Find your fit.
Stand or sit, mix it up with the press of a button. Switchback®
height-adjustable desk elevates the way you work from home—while
maximizing ergonomics and minimizing fatigue.
|
|
1
INSTALLATION VIDEO
C6586 Rev A
www.sitonit.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the Switchback and is the answer not in the manual?

Questions and answers

Related Manuals for SitOnit Seating Switchback

Summary of Contents for SitOnit Seating Switchback

  • Page 1 Switchback HOME EDITION HEIGHT ADJUSTABLE DESK Find your fit. Stand or sit, mix it up with the press of a button. Switchback® height-adjustable desk elevates the way you work from home—while maximizing ergonomics and minimizing fatigue. INSTALLATION VIDEO C6586 Rev A...

  • Page 2: Important Safety Instructions

    Switchback HOME EDITION HEIGHT-ADJUSTABLE DESK Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. To report any issues with this product, contact our customer experience team at: (866) 764-4111 or shopcx@sitonit.net.
  • Page 3 Switchback HOME EDITION HEIGHT-ADJUSTABLE DESK IMPORTANT SAFETY INSTRUCTIONS WARNING: TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS: Approved Users Only For household/residential use only. Close supervision is necessary when this product is used by, or near children, invalids, or disabled persons.
  • Page 4 Switchback HOME EDITION HEIGHT-ADJUSTABLE DESK IMPORTANT SAFETY INSTRUCTIONS WARNING / AVERTISSEMENT RISK OF INJURY / RISQUE DE BLESSURE Maximum load 220 lb including worksurface Charge maximale 220 lb incluant la surface de travail WARNING / AVERTISSEMENT RISK OF FIRE AND SHOCK / RISQUE D'INCENDIE ET DE CHOC Use only min SJ type or equivalent, 18 AWG cord minimum Utilisez uniquement un type SJ minimum ou équivalent, cordon 18 AWG minimum...

  • Page 5: Servicing Of Double-Insulated Products

    Switchback HOME EDITION HEIGHT-ADJUSTABLE DESK IMPORTANT SAFETY INSTRUCTIONS Servicing of Double-Insulated Products In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor is a means for grounding to be added to the product. Servicing a double-insulated product requires extreme care and knowledge of the system and is to be done only by qualified service personnel.
  • Page 6 Switchback HOME EDITION HEIGHT-ADJUSTABLE DESK WARNING RISK OF DEATH AND SERIOUS INJURY Do Not Overload Table Make sure the table system is not overloaded by the weight of the tabletop and objects on table. Evenly distribute load; excess loads near the edges can reduce stability and lead to tip-over.
  • Page 7 Switchback HOME EDITION HEIGHT-ADJUSTABLE DESK Recommended Tools • 6 mm Hex Key 6 mm Hex Key Parts • Top/Frame Assembly (1) • Leg/Column Assembly (2) Leg/Column Assemblies Top/Frame Assembly C6586 Rev A www.sitonit.net...
  • Page 8 Switchback HOME EDITION HEIGHT-ADJUSTABLE DESK Step 1: Insert the legs into the frame, sliding the fasteners into the notches on the crossbeam. Fastener Leg Sticker Match with the frame sticker Frame Sticker Match with the leg sticker SLIDE! C6586 Rev A...
  • Page 9 Switchback HOME EDITION HEIGHT-ADJUSTABLE DESK Step 2: Tighten the leg's four fasteners with the 6 mm hex key. This step is repeated on the other column. Column Fastener TOOLS 6 mm Hex Key C6586 Rev A www.sitonit.net...
  • Page 10 Switchback HOME EDITION HEIGHT-ADJUSTABLE DESK Step 3: Plug in the legs to the control box. Use the extension cord to span the longer distance from leg B. Control Box Extension Cord C6586 Rev A www.sitonit.net...
  • Page 11 Switchback HOME EDITION HEIGHT-ADJUSTABLE DESK Step 4: With the help of another person, turn the table upright. Caution: Do not rock the table upright. This will damage the and control bracket that is pre-installed under the tabletop. Hand Control Bracket C6586 Rev A www.sitonit.net...
  • Page 12 Switchback HOME EDITION HEIGHT-ADJUSTABLE DESK Step 5: Insert the hand control into the hand control bracket. Hand Control Hand Control Bracket C6586 Rev A www.sitonit.net...
  • Page 13 Switchback HOME EDITION HEIGHT-ADJUSTABLE DESK Display Memory Up/Down Initialization Move Desk Up and Down Before the first use, or when the display Raise the desk by pressing the up arrow screen shows "RST". and lower the desk by pressing the down arrow.
  • Page 14 Switchback HOME EDITION HEIGHT-ADJUSTABLE DESK Error Code Description Solution Faulty Power Replace power A-Synchronist Height Over 1 cm Initialize the table Handset Error Unplug and replug the handset in Faulty Power Replace power Faulty Power Replace power Slopiing Tabletop Check the tabletop...
