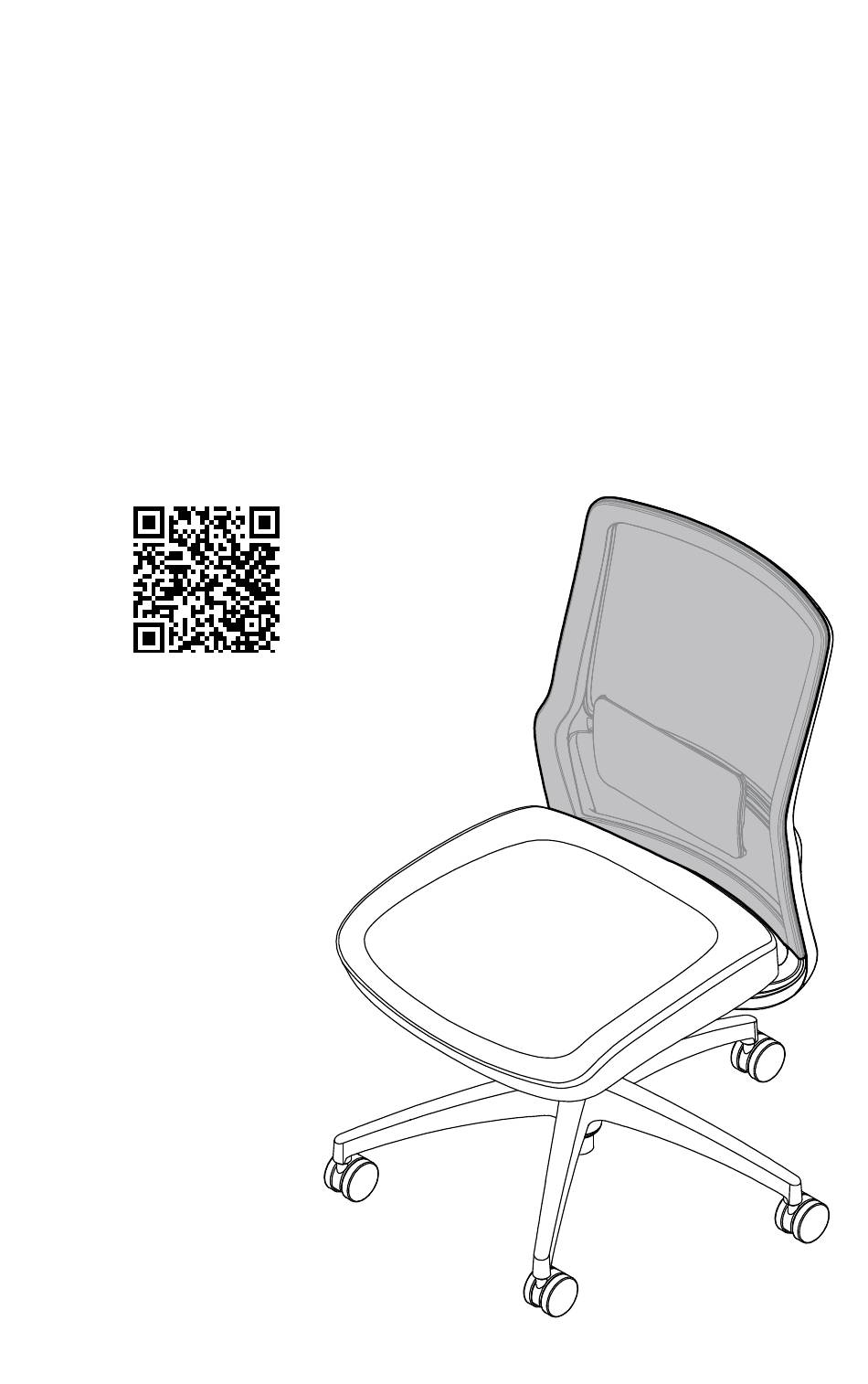

- Page 1 ASSEMBLY INSTRUCTIONS Novo for the win. Modern and made to be the best seat in your house. Bring the elevated design, features and comfort of Novo® from the corner office to your home office. INSTALLATION VIDEO C6578 Rev A www.sitonit.net...
- Page 2 Novo – Home Edition ASSEMBLY INSTRUCTIONS To report any issues with this product, contact our customer experience team at: (866) 764-4111 or shopcx@sitonit.net. CAUTION Please read all assembly instructions before installing. Failure to follow instructions could result in product failure or potential injury.
- Page 3 Novo – Home Edition ASSEMBLY INSTRUCTIONS Parts: Chair • Back Assembly (1) • Base Assembly (1) • Seat Assembly (1) • Cylinder (1) Seat Assembly Cylinder Back Assembly Base Assembly Parts: Mechanism (will come attached to seat) Standard Synchro Mechanism...
- Page 4 Novo – Home Edition ASSEMBLY INSTRUCTIONS Step 1: Slide the yoke into the mechanism's bracket and align the hole patterns. Bracket Yoke Seat assembly should be placed on a firm flat surface for assembly. You can use the box the chair...
- Page 5 Novo – Home Edition ASSEMBLY INSTRUCTIONS Step 2: Secure the back assembly to the seat assembly. Screws must be tightened to a minimum torque of 150 in-lbs. ⁄ " × ⁄ " Screw ⁄ " Washer 1:1 HARDWARE TOOLS ⁵⁄ ₁₆ " Washer ⁵⁄...
- Page 6 Novo – Home Edition ASSEMBLY INSTRUCTIONS Step 3: Push the cylinder into the center of the base. Cylinder Base C6578 Rev A www.sitonit.net...
- Page 7 Novo – Home Edition ASSEMBLY INSTRUCTIONS Step 4: Align the mechanism with the cylinder and push until seated. The cylinder is seated correctly when you can lift the chair and the cylinder stays attached to the mechanism. Mechanism Cylinder C6578 Rev A...
