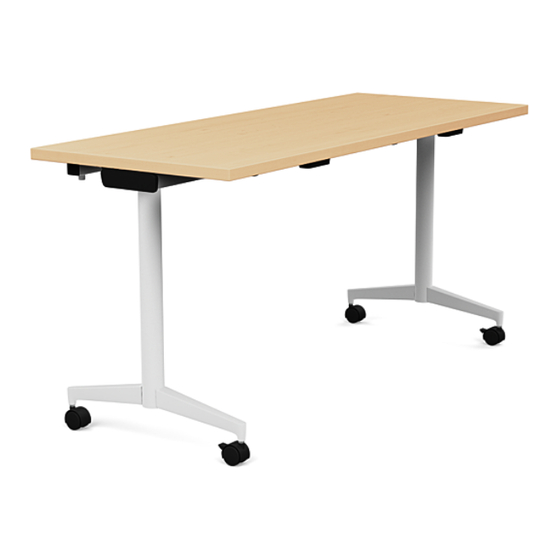

Parallon

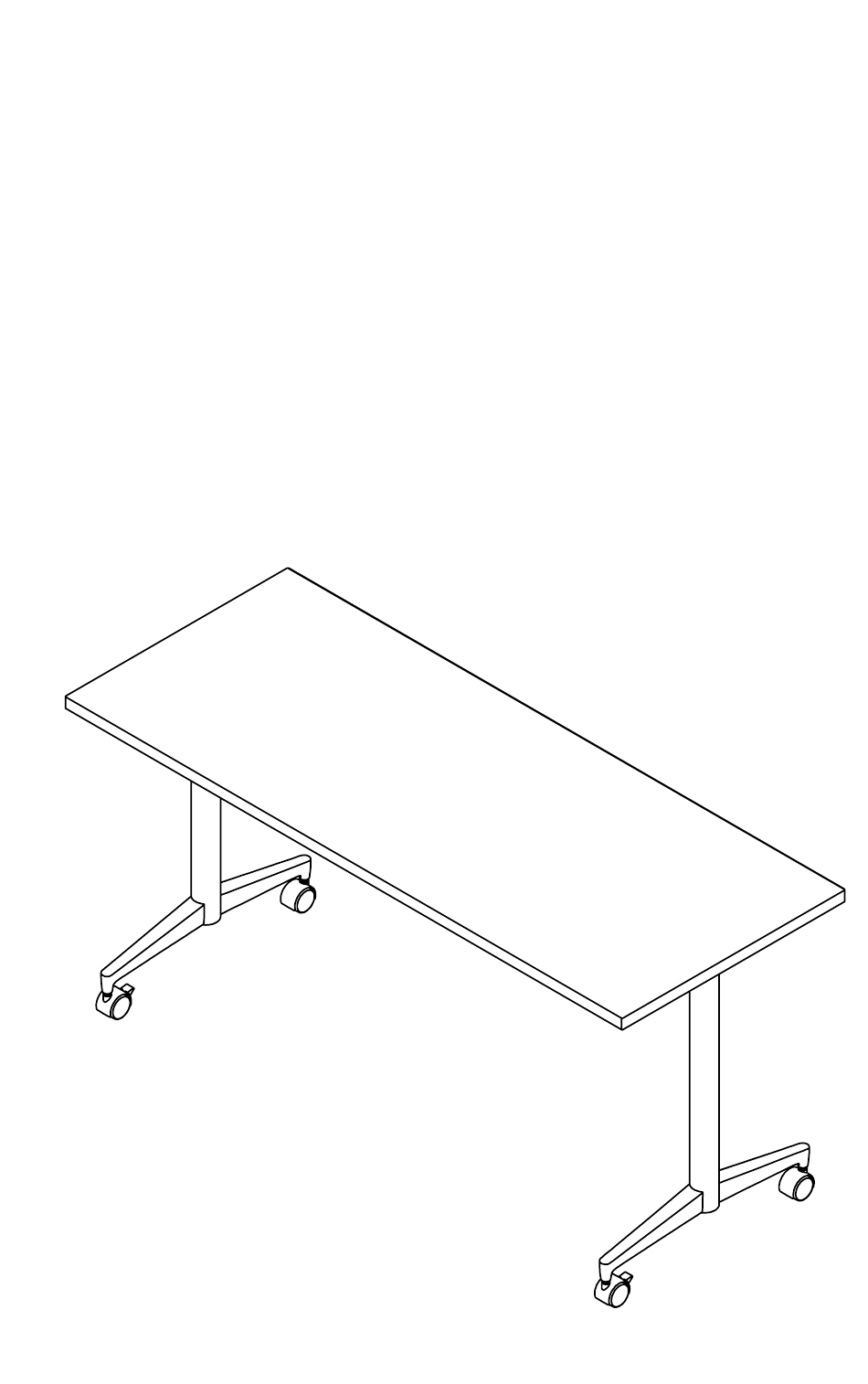

FIXED TOP TABLE ASSEMBLY INSTRUCTIONS
Everything to the table.
When you want cohesion in spaces large, small, shared or separate, there's
Parallon. It's a single collection with a singular look, offering an array of
choices for a variety of environments—and all the features to fit.
Ensure design is never a distraction in the places where everyone needs to
focus. Our Parallon line of training tables provides a unified and streamlined
look from room to room.
C6568 Rev B
|
www.sitonit.net
|
1
Advertisement
Related Manuals for SitOnit Seating Parallon
Summary of Contents for SitOnit Seating Parallon
- Page 1 Everything to the table. When you want cohesion in spaces large, small, shared or separate, there’s Parallon. It’s a single collection with a singular look, offering an array of choices for a variety of environments—and all the features to fit.
- Page 2 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. To report any issues with this product, contact our customer experience team at: (888) 274-8664 or sitonit@exemplis.com.
-
Page 3: Recommended Tools
Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Recommended Tools • • Non-Marring Mallet/Hammer ⁄ " Combination Wrench • • ¼" or ⁄ " Drive Ratchet Wrench Cordless Drill/Driver • • Socket Extension #3 Phillips Bit • Flex Socket Adapter • ⁄ " Hex Bit • ½" Hex Socket • Magnetic Bit Holder ⁄ " Combination Wrench Non-Marring Hammer ¼" or ⁄ " Drive Ratchet Wrench ⁄ " Hex Socket... - Page 4 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Parts: Top and Frame • • Tabletop (1) Grommet (Optional) • • Pack A: Top Plates (2) • • Stiffener (1): #12 × 1" Screw (17) 60" and 72" Tabletops Only • Pack C: • • End Cap (1): ¼" × 1" Screw (8) 60" and 72" Tabletops Only Top Plates Stiffener End Cap Grommets Tabletop (Some Sizes) (Some Sizes) (Optional)
- Page 5 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Parts: Columns and Feet • Column (2) • Foot (4) • Caster (4, Optional) • Pack B: • ⁄ " × 1 ⁄ " Bolt (4) • ⁄ " Nut (4) • Foot Attachment Plate (4) Casters (Optional) Feet Columns PACK B Foot Attachment Plates ⁄ " Nuts ⁄ ⁄ " Bolts C6568 Rev B www.sitonit.net...
- Page 6 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 1: If using a 60" or 72" tabletop, attach the stiffener. Continue to step 3 if using a 48" tabletop. Attachment Hardware #12 × 1" Screw Tabletop Screws 60" 72" Stiffener Pilot Hole 1:1 HARDWARE TOOLS #3 Phillips Bit #12 x 1" Screw (Pack A)
- Page 7 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 2: If using a 60" or 72" tabletop, insert the end cap into the open side of the stiffener. Continue to step 3 if using a 48" tabletop. End Cap Stiffener TOOLS Non-Marring Hammer C6568 Rev B...
- Page 8 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 3: Slide the bolt through the foot attachment plate and column. This step is repeated on each foot. Foot Attachment Plate ⁄ ⁄ " Bolt Hole Column 1:1 HARDWARE ⁄ ⁄ " Bolt (Pack B) C6568 Rev B www.sitonit.net...
- Page 9 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 4: Slide the foot over the bolt. This step is repeated on each foot. ⁄ ⁄ " Bolt Foot Column C6568 Rev B www.sitonit.net...
- Page 10 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 5: Hold the bolt in place and tighten the nut. This step is repeated on each foot. 1:1 HARDWARE TOOLS ⁄ " Combination Wrench ⁄ " Hex Socket Socket Extension ⁄ Nut (Pack B) Flex Socket Adapter ¼" or ⁄ " Drive Ratchet Wrench C6568 Rev B...
- Page 11 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 6: Attach the top plates to the columns. ⁄ " x 1" Screw Top Plate Align the top support and feet. Column 1:1 HARDWARE TOOLS ⁄ x 1" Screw (Pack C) ⁄ Hex Drill Bit C6568 Rev B www.sitonit.net...
- Page 12 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 7: Attach the leg assemblies to the tabletop. #12 x 1" Screw Top Plate Pilot Hole 1:1 HARDWARE TOOLS #12 x 1" Screw (Pack A) #3 Phillips Bit C6568 Rev B www.sitonit.net...
- Page 13 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 8: Unscrew the glides to level as needed. Alternatively, insert the optional casters into the feet and tighten the nuts. Brake Install the two casters with brakes on the same side as the pull handles.
- Page 14 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 9: Turn the table upright with the help of another person and if applicable, press the optional grommets into the cutouts. Grommet Cutout C6568 Rev B www.sitonit.net...
