SWITCHBACK
2-LEG 2-STAGE
ASSEMBLY INSTRUCTIONS

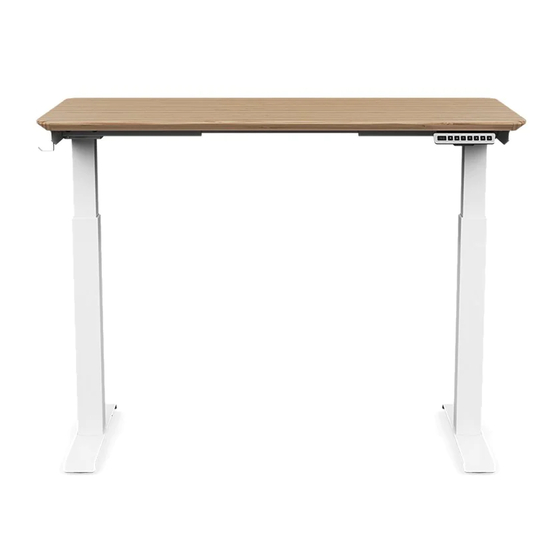

Create a smarter workplace solution with Switchback, our number one height-adjustable
table. Known for its classleading anti-collision technology, compact shipping size and instant
installation, it's the go-to for a dynamic workspace—and it gets even better when you bundle it
with screens, power modules and keyboard trays for a complete, multifunctional workstation.

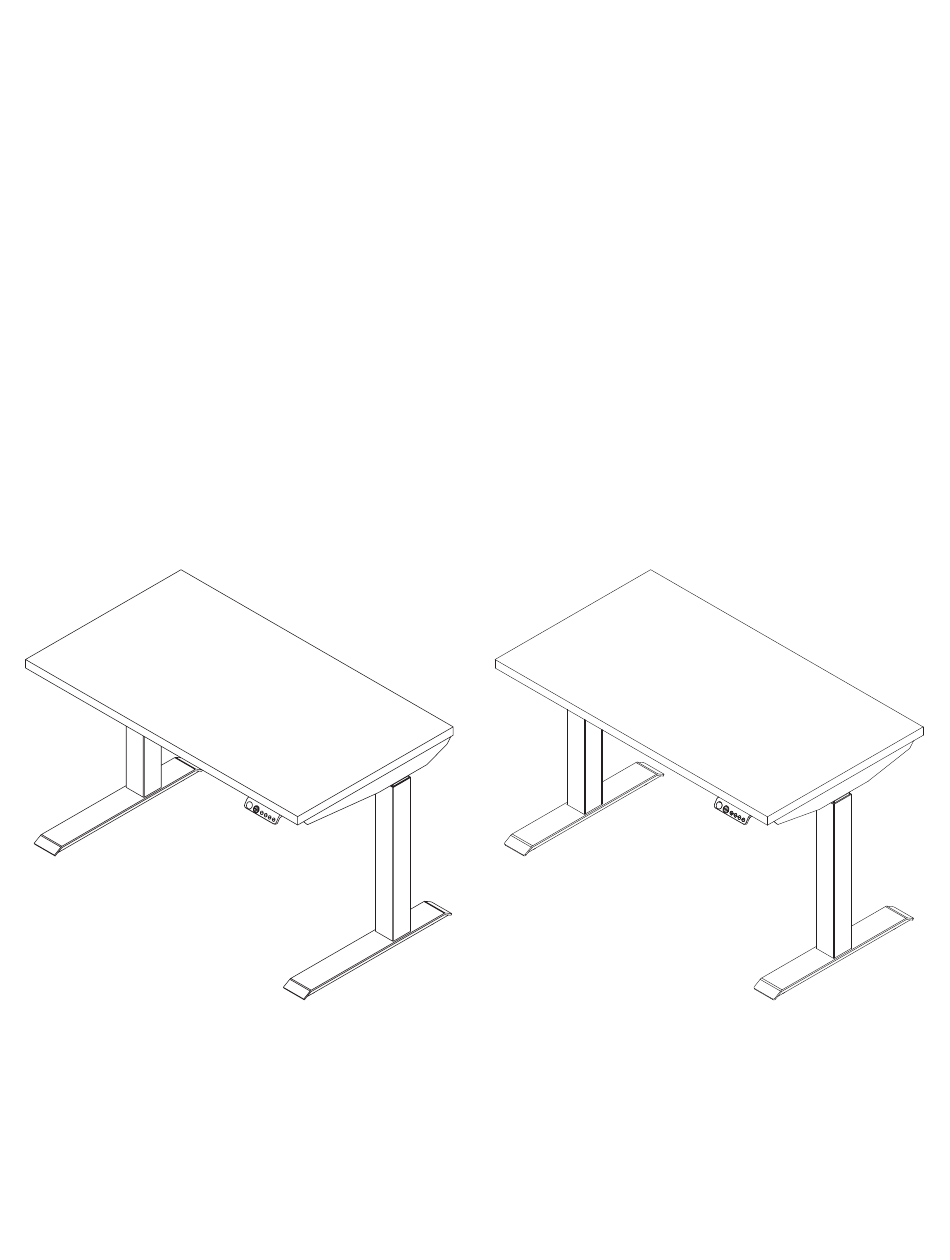

C-Leg
T-Leg
C6534 Rev. B

Advertisement

loading
Need help?

Need help?

Do you have a question about the Switchback Table and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SitOnit Seating Switchback Table

Summary of Contents for SitOnit Seating Switchback Table

  • Page 1 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS Create a smarter workplace solution with Switchback, our number one height-adjustable table. Known for its classleading anti-collision technology, compact shipping size and instant installation, it’s the go-to for a dynamic workspace—and it gets even better when you bundle it with screens, power modules and keyboard trays for a complete, multifunctional workstation.

  • Page 2: Table Of Contents

    SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS COMPONENT LIST REQUIRED TOOLS • Column (2) • M10 × 16 mm Screw (8) • Top Support (2) • M4 × 22 mm Screw (2) • Cross-brace (2) • M10 × 17 mm Set Screw (2) •...

  • Page 3: Column

    SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS Column Cross-brace M6 × 16 mm Screw STEPS 1. Place the columns into an upright position. Using the 5 mm hex L-key, fasten the cross brace to the motor housing using one M6 × 16 mm screw in the position farthest from the column. To report any issues with this product, please contact our customer service department at (888) 274-8664.

  • Page 4: Top Support

    SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS C-LEG M6 × 16 mm Screw Column Cross-brace Top Support T-LEG M6 × 16 mm Screw Column Cross-brace Top Support STEPS 2. Place the top supports onto the assembly as shown. The flange on the top supports will be inserted into the rectangular tube end.

  • Page 5: U-Pipe

    SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS C-LEG T-LEG M6 × 8 mm Screw M6 × 8 mm Screw C-LEG T-LEG Cross-brace Cross-brace U-pipe U-pipe STEPS 3. Install one M6 × 8 mm screw on the opposite side using the 5 mm hex L-key. 4.
  • Page 6 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS C-LEG T-LEG Foot Foot M10 × 16 mm Screw M10 × 16 mm Screw C-LEG T-LEG M10 × 17 mm Set Screw M10 × 17 mm Set Screw Tabletop Tabletop Frame Assembly Frame Assembly STEPS 5.
  • Page 7 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS C-LEG T-LEG Control Box Control Box Cables Cables STEPS 7. Align the hand control and control box on pre-drilled hole patterns with the end of the control box containing three ports facing the leg it is closest to. Attach all cables to the control box before connecting power cord. Route and secure cables as illustrated using the included clips and M5 ×...

  • Page 8: Control Box

    SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS C-LEG T-LEG M5 × 20 mm Screw M5 × 20 mm Screw M4 × 22 mm Screw Control Box M4 × 22 mm Screw Control Box Hand Control Hand Control C-LEG T-LEG C-Leg Base Attachment Hardware T-Leg Base Attachment Hardware 24"...
  • Page 9 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS NOTE: To avoid damage, note the location of the hand control and make sure that the process of flipping the table does not result in the table weight resting on the hand control. STEPS 10. Flip the table to the upright position and reset it before the first use. To reset the table: Press and hold the up and down buttons at the same time for three seconds.
  • Page 10 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS Back of Table Bundle Components Layout / Order of Operation 1. Base 2. Handswitch 3. Power Strip 4. Kbt Adapter Kit / Laptop Tray 5. Wire Management Basket 6. Mini Trackless Keyboard Tray 7. Half Round Pencil Tray 8.
  • Page 11 SWITCHBACK 2-LEG 2-STAGE SAFETY INSTRUCTIONS RISK OF DEATH AND SERIOUS INJURY WARNING Raising or lowering the table can trap, pinch, or crush body parts or property. Read all instructions before using this equipment. This product has been evaluated by UL for commercial use. it has not been evaluated for environments where children or others who may not recognize and comprehend the risks inherent with moving parts are unsupervised.
  • Page 12 SWITCHBACK 2-LEG 2-STAGE SAFETY INSTRUCTIONS RISK OF DEATH AND SERIOUS INJURY WARNING Raising or lowering the table can trap, pinch, or crush body parts or property. Read all instructions before using this equipment. DO NOT OVERLOAD TABLE Make sure the table system is not overloaded by the weight of the tabletop and objects on table. Evenly distribute load; excess loads near the edges can reduce stability and lead to tip-over.
  • Page 13 SWITCHBACK 2-LEG 2-STAGE USER GUIDE USER INTERFACE GUIDE CONTROLLER 3-digit display memory setting (shows height buttons of the desk) INITIALIZATION / RESET Simultaneously press the buttons for three seconds. Continue pressing until both columns are in the lowest position. When the reset is finished, the control box makes a beep sound and the buttons can be released. Reminders: When reset is being conducted, the display shows “E00”...
