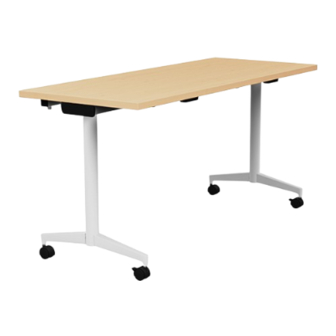

Parallon

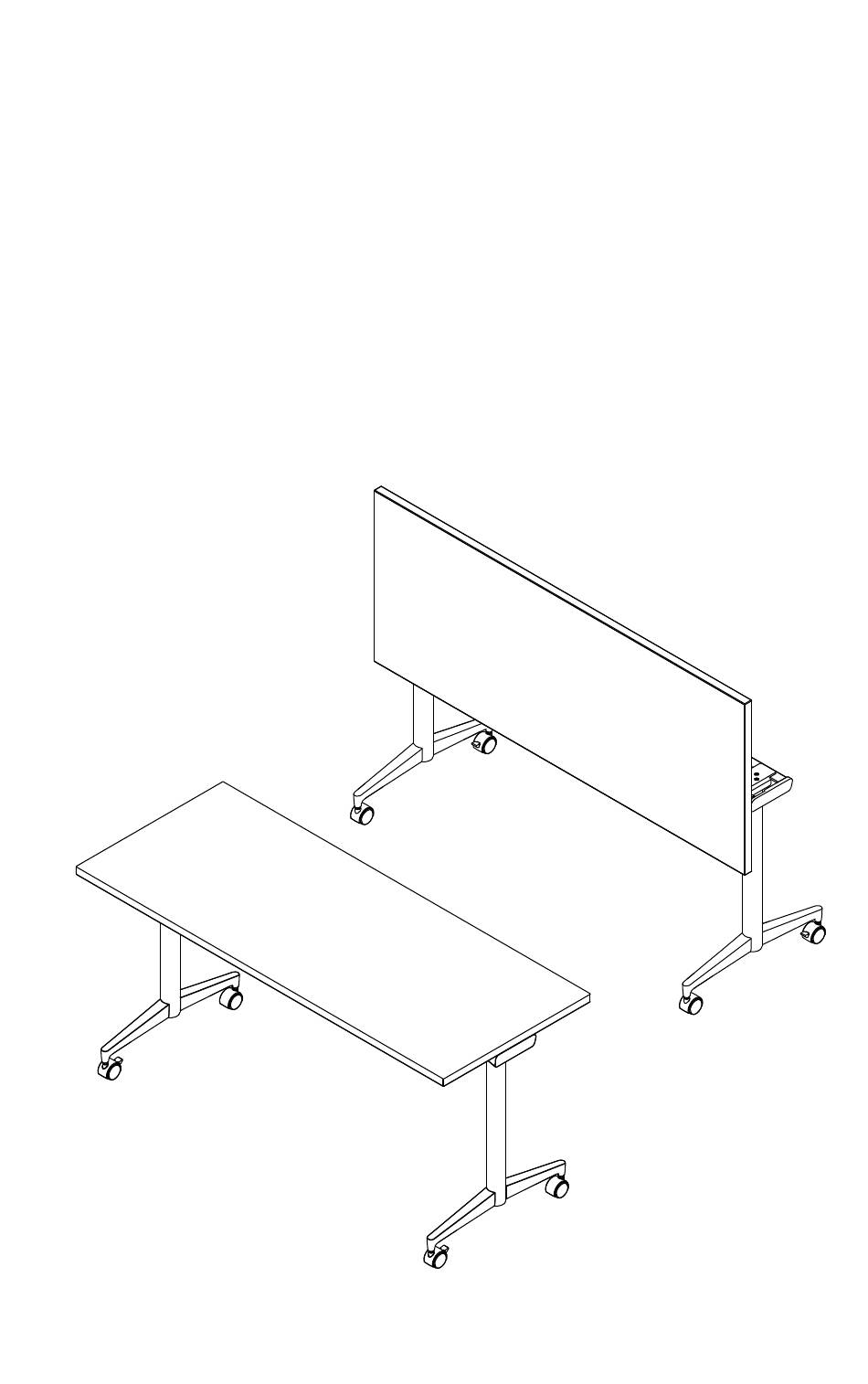

FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS
Everything to the table.
When you want cohesion in spaces large, small, shared or separate, there's
Parallon. It's a single collection with a singular look, offering an array of
choices for a variety of environments—and all the features to fit.
Ensure design is never a distraction in the places where everyone needs to
focus. Our Parallon line of training tables provides a unified and streamlined
look from room to room.
|
|
C6553 Rev E
www.sitonit.net
1
Advertisement
Related Manuals for SitOnit Seating Parallon
Summary of Contents for SitOnit Seating Parallon
- Page 1 Everything to the table. When you want cohesion in spaces large, small, shared or separate, there’s Parallon. It’s a single collection with a singular look, offering an array of choices for a variety of environments—and all the features to fit.
- Page 2 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. To report any issues with this product, contact our customer experience team at: (888) 274-8664 or sitonit@exemplis.com.
- Page 3 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Recommended Tools • • Non-Marring Mallet/Hammer ⁄ " Combination Wrench • • ⁄ " Deep Well Hex Socket, ¼" Drive Cordless Drill/Driver • • Hex Shank to ¼" Square #3 Phillips Bit Drive Adapter •...
- Page 4 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Parts: Top and Frame • • Pack A: Tabletop (1, rectangular, trapezoid or half round) • #12 × 1" Screw (19) • Top Support (2) • Pack C: • • Linking Support (1) ¼" × 1" Screw (8) •...
- Page 5 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Parts: Columns and Feet • Column (2) • Foot (4) • Caster (4, Optional) • Pack B: Casters (Optional) • ⁄ " × 1 ⁄ " Bolt (4) • ⁄ " Nut (4) • Foot Attachment Plate (4)
- Page 6 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 1: Attach the counterweight to the tabletop. Attachment Hardware Tabletop Length Screws Rectangular 42" 48" 54" 60" 66" 72" Trapezoid 48" 60" Half Round 48" 60" Pilot Hole Half Round With Trapezoid With Counterweight...
- Page 7 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 2: Insert the end cap into the open side of the counterweight. Counterweight End Cap TOOLS Non-Marring Hammer C6553 Rev E www.sitonit.net...
-
Page 8: Top Support
Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 3: Attach the top support to the columns. ⁄ " x 1" Screw Top Support Column Align the top support with the holes in the columns. 1:1 HARDWARE 1:1 HARDWARE TOOLS TOOLS ⁄ " x 1" Screw (Pack C) ⁄... - Page 9 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 4: Set a leg assembly on the tabletop and slide together the two top support assemblies with the linking support. Use the stickers to orient the top support assemblies and linking support. Match up the holes on the sides of the linking support and top supports using the chart below.
-
Page 10: Linking Support
Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 5: Attach the linking support and top support assemblies together. ⁄ " × ⁄ " Screw Top Support Assembly Linking Support 1:1 HARDWARE TOOLS ⁄ " × ⁄ " Screw (Pack D) ⁄ Hex Drill Bit www.sitonit.net... - Page 11 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 6: Slide or snap the hinge sleeves over the top support. This step is repeated on both top supports. SLIDE Hinge Sleeve Top Support SNAP Top Support SNAP! Hinge Sleeve C6553 Rev E www.sitonit.net...
-
Page 12: Hinge Bracket
Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 7: Attach hinge brackets over the hinge sleeves. This step is repeated on both top supports. #12 x 1" Screw Center Hole Hinge Bracket Pilot Hole Sleeve Protrusion The center hole of the hinge bracket... - Page 13 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 8: Flip the frame assembly back towards the counterweight. C6553 Rev E www.sitonit.net...
-
Page 14: 1" Screw
Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 9: Line the pull handles up with their pilot holes and attach them to the tabletop. #12 x 1" Screw #12 x 1" Shoulder Screw Smaller pull handles do not use a shoulder screw... - Page 15 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 10: Flip the frame back into place. It should engage with the pull handles. Frame correctly engaged with the pull handle C6553 Rev E www.sitonit.net...
- Page 16 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 11: Slide the bolt through the foot attachment plate and column. This step is repeated on each foot. Foot Attachment Plate ⁄ ⁄ " Bolt Column 1:1 HARDWARE ⁄ ⁄ " Bolt (Pack B) www.sitonit.net...
- Page 17 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 12: Slide the foot over the bolt. This step is repeated on each foot. ⁄ ⁄ " Bolt Foot C6553 Rev E www.sitonit.net...
- Page 18 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 13: Hold the bolt in place and tighten the nut. This step is repeated on each foot. Socket Universal Joint Adapter TOOLS 1:1 HARDWARE ⁄ " Deep Well Hex Socket, ¼" Drive Universal Joint ⁄...
- Page 19 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 14: Unscrew the glides to level as needed. Alternatively, insert the optional casters into the feet and tighten the nuts. Brake Install the two casters with brakes on the same side as the pull handles.
- Page 20 Parallon FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS Step 15: Turn the table upright with the help of another person and if applicable, press the optional grommets into the cutouts. Grommet Cutout USAGE To flip the tabletop: Pull the pull handles forward and lift up on the tabletop www.sitonit.net...
