STACKING CART
ASSEMBLY INSTRUCTIONS
Stacking carts minimize the amount of space needed to store our multipurpose chairs
and efficiently help transport several chairs at once. Our stacking carts have 4-inch casters
for easy maneuverability and a rugged tubular steel frame that gives them strength
and durability.

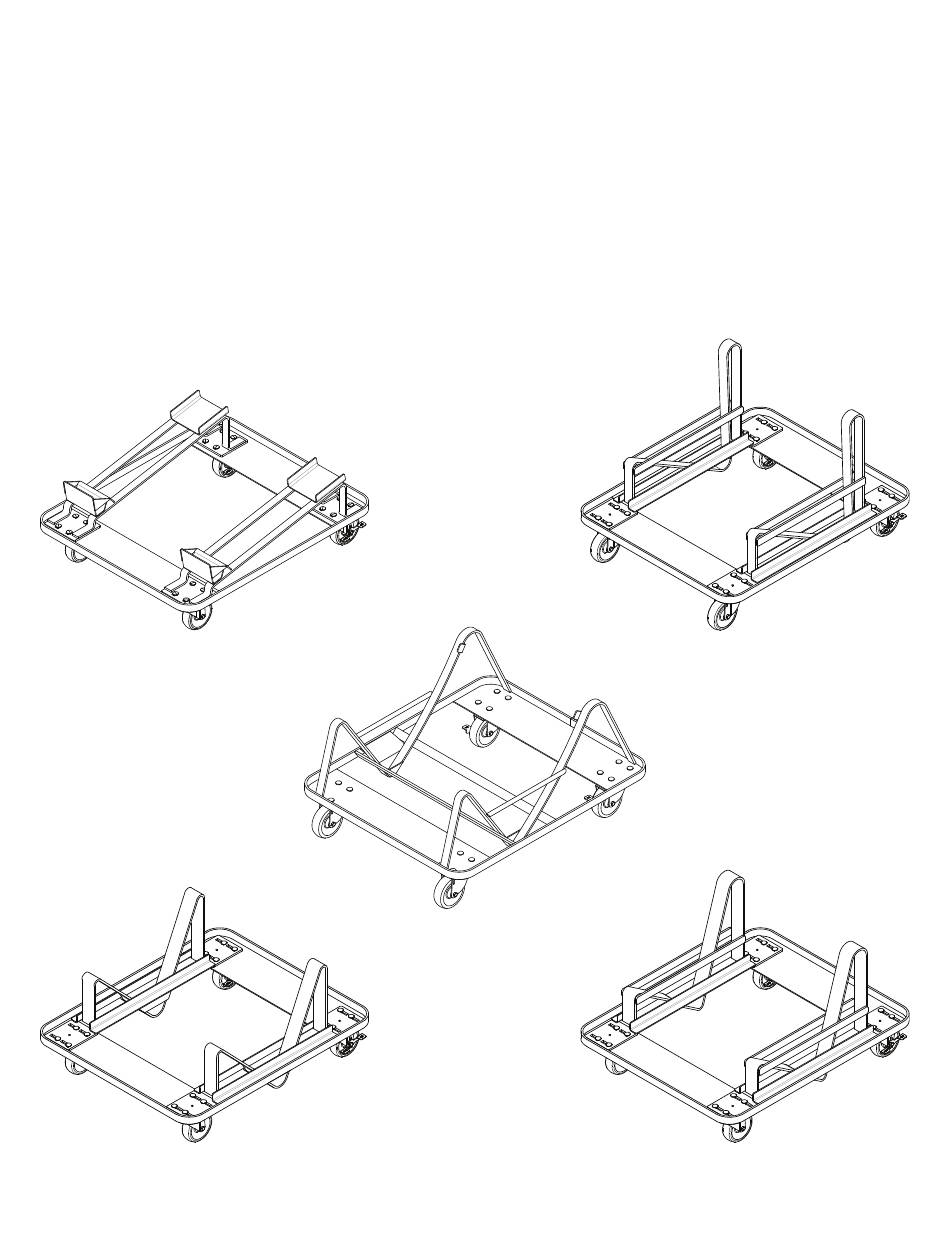

BAJA | LUMIN | MIKA | RIO | WIT SIDE
RIO
ORBIX | ON CALL
SPROUT | BAJA | LUMIN
MIKA
C6546 Rev. A
