Status; Figure 3-4. Imux-56/64 Module Status Menu; Table 3-4. Bonding Status Display Values - ADTRAN IMUX-56 User Manual

Status

Status
Display Value
Idle
Indicates the number of Idle BONDING resources for a particular BONDING
engine.
Reserved BONDING resources reserved for a BONDING session that is in the process
of coming up.
Negotiating
A single channel is connected and negotiating the BONDING call for a
particular BONDING session.
Add Channels The initial BONDING negotiation was successful, and the IMUX-56/64 Module
is in the process of adding channels to the BONDING session.
BONDING
The remaining channels were brought up successfully, and the BONDING
session is now ready to pass data.
Terminated The BONDING session has been terminated for some reason and is in the
process of freeing BONDING resources.
61200262L1-1A
Read security: 5
Displays the Status submenus for BONDING resources available on both
BONDING engines on the IMUX-56/64 Module (see Figure 3-4).
The list entries Engine 1 and Engine 2 in the status list display the BOND-
ING resources available for incoming and outgoing BONDING calls on the
separate BONDING engines.
Read security: 5
Indicates the current status of a particular BONDING session. Table 3-4
defines the possible status display values.
IMUX-56/64 Module User Manual

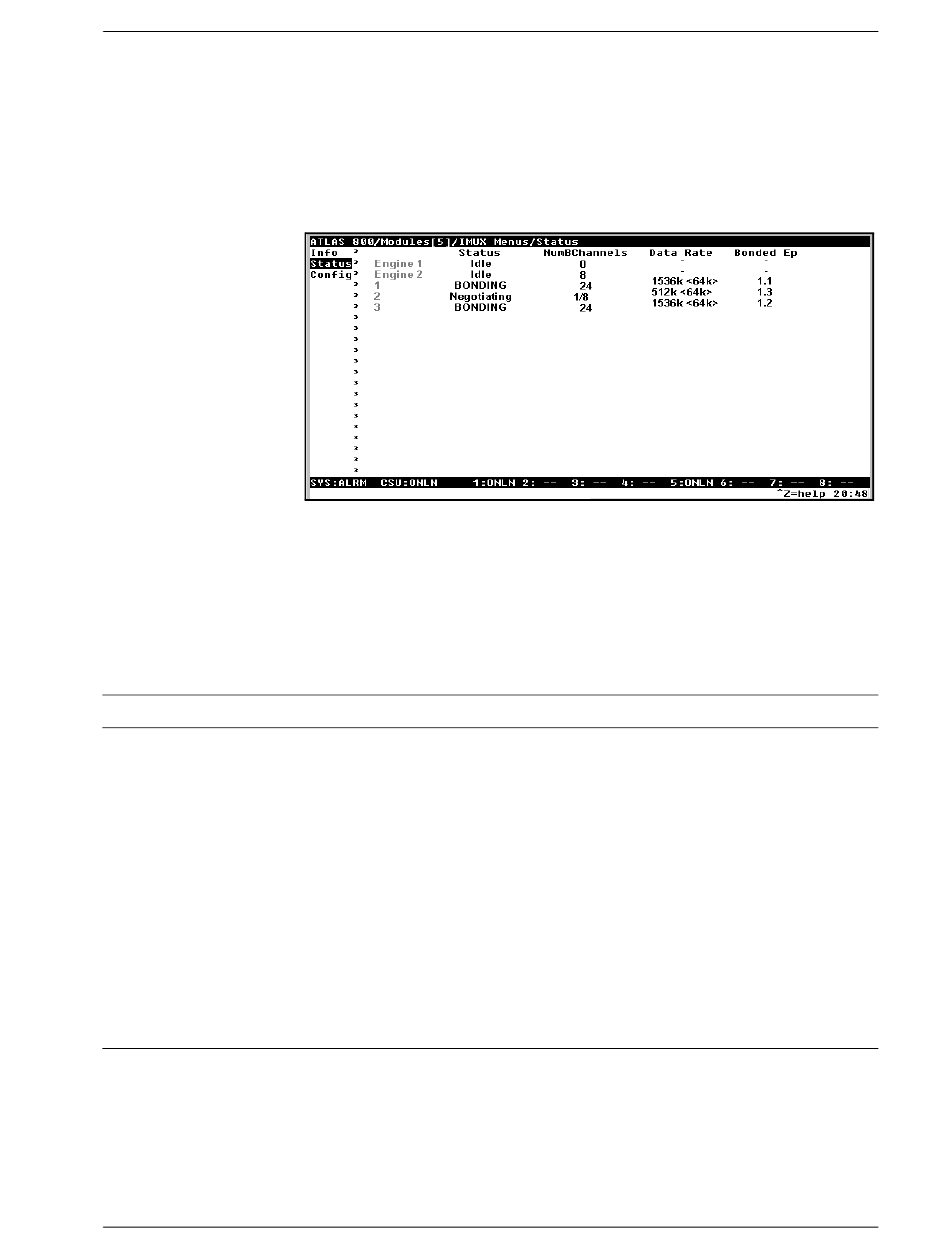

Figure 3-4. IMUX-56/64 Module Status Menu

Table 3-4. BONDING Status Display Values

Meaning
Chapter 3. Operation
3-7
