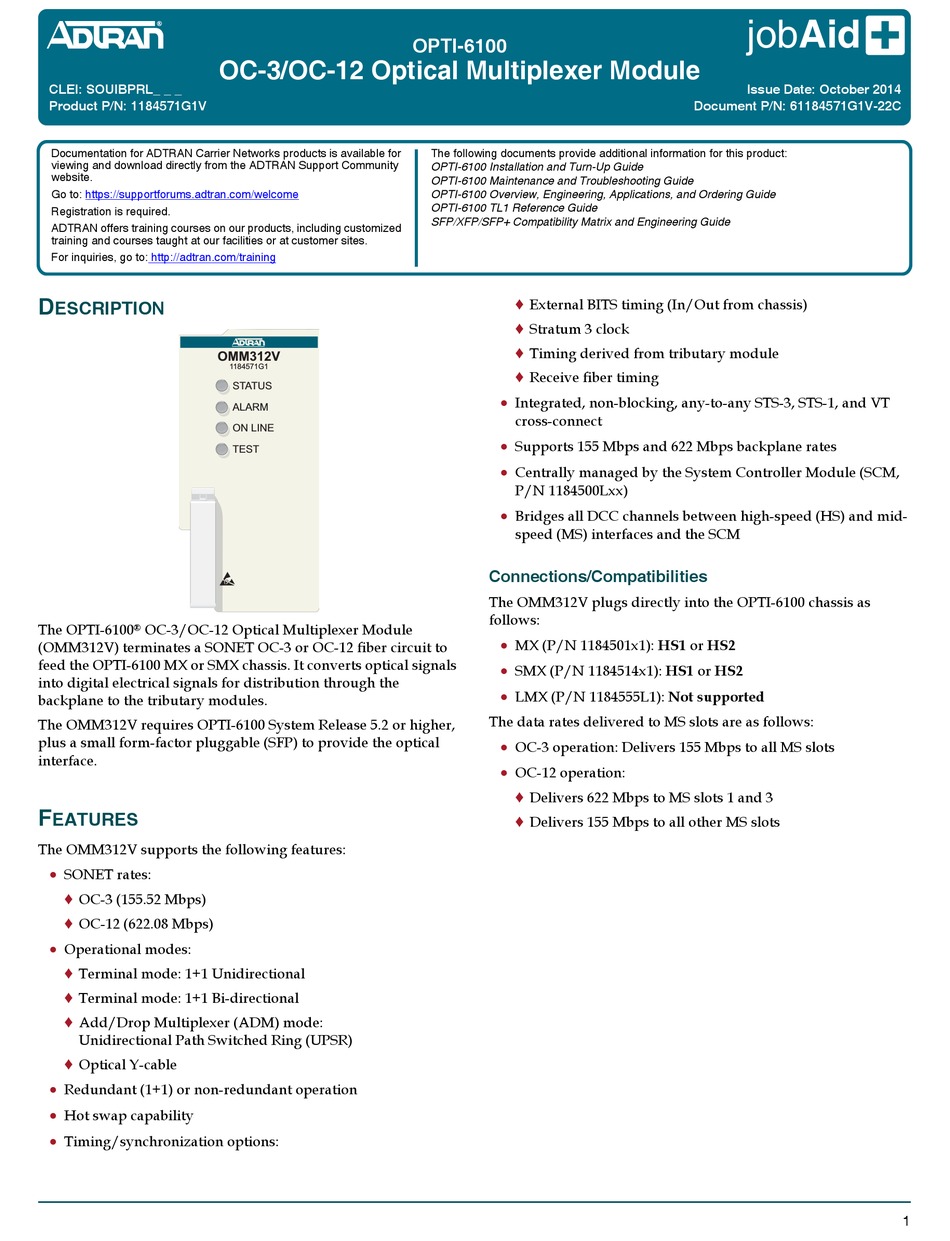

ADTRAN OC-3 Quick Start Manual

CLEI: SOUIBPRL_ _ _
Product P/N: 1184571G1V
Documentation for ADTRAN Carrier Networks products is available for
viewing and download directly from the ADTRAN Support Community
website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION
OMM312V
The OPTI-6100 OC-3/OC-12 Optical Multiplexer Module
®
(OMM312V) terminates a SONET OC-3 or OC-12 fiber circuit to
feed the OPTI-6100 MX or SMX chassis. It converts optical signals
into digital electrical signals for distribution through the
backplane to the tributary modules.
The OMM312V requires OPTI-6100 System Release 5.2 or higher,
plus a small form-factor pluggable (SFP) to provide the optical
interface.
F
EATURES
The OMM312V supports the following features:

SONET rates:
o OC-3 (155.52 Mbps)
o OC-12 (622.08 Mbps)

Operational modes:
o Terminal mode: 1+1 Unidirectional
o
Terminal mode: 1+1 Bi-directional
o
Add/Drop Multiplexer (ADM) mode:
Unidirectional Path Switched Ring (UPSR)
o Optical Y-cable

Redundant (1+1) or non-redundant operation

Hot swap capability

Timing/synchronization options:
OC-3/OC-12 Optical Multiplexer Module
1184571G1
STATUS
ALARM
ON LINE
TEST
OPTI-6100
The following documents provide additional information for this product:
OPTI-6100 Installation and Turn-Up Guide
OPTI-6100 Maintenance and Troubleshooting Guide
OPTI-6100 Overview, Engineering, Applications, and Ordering Guide
OPTI-6100 TL1 Reference Guide
SFP/XFP/SFP+ Compatibility Matrix and Engineering Guide
o External BITS timing (In/Out from chassis)
o Stratum 3 clock
o Timing derived from tributary module
o
Receive fiber timing

Integrated, non-blocking, any-to-any STS-3, STS-1, and VT
cross-connect

Supports 155 Mbps and 622 Mbps backplane rates

Centrally managed by the System Controller Module (SCM,
P/N 1184500Lxx)

Bridges all DCC channels between high-speed (HS) and mid-
speed (MS) interfaces and the SCM
Connections/Compatibilities
The OMM312V plugs directly into the OPTI-6100 chassis as
follows:

MX (P/N 1184501x1): HS1 or HS2

SMX (P/N 1184514x1): HS1 or HS2

LMX (P/N 1184555L1): Not supported
The data rates delivered to MS slots are as follows:

OC-3 operation: Delivers 155 Mbps to all MS slots

OC-12 operation:
o Delivers 622 Mbps to MS slots 1 and 3
o Delivers 155 Mbps to all other MS slots
jobAid
Issue Date: October 2014
Document P/N: 61184571G1V-22C
1
