Chapter 3. Operation
IMUX MENU

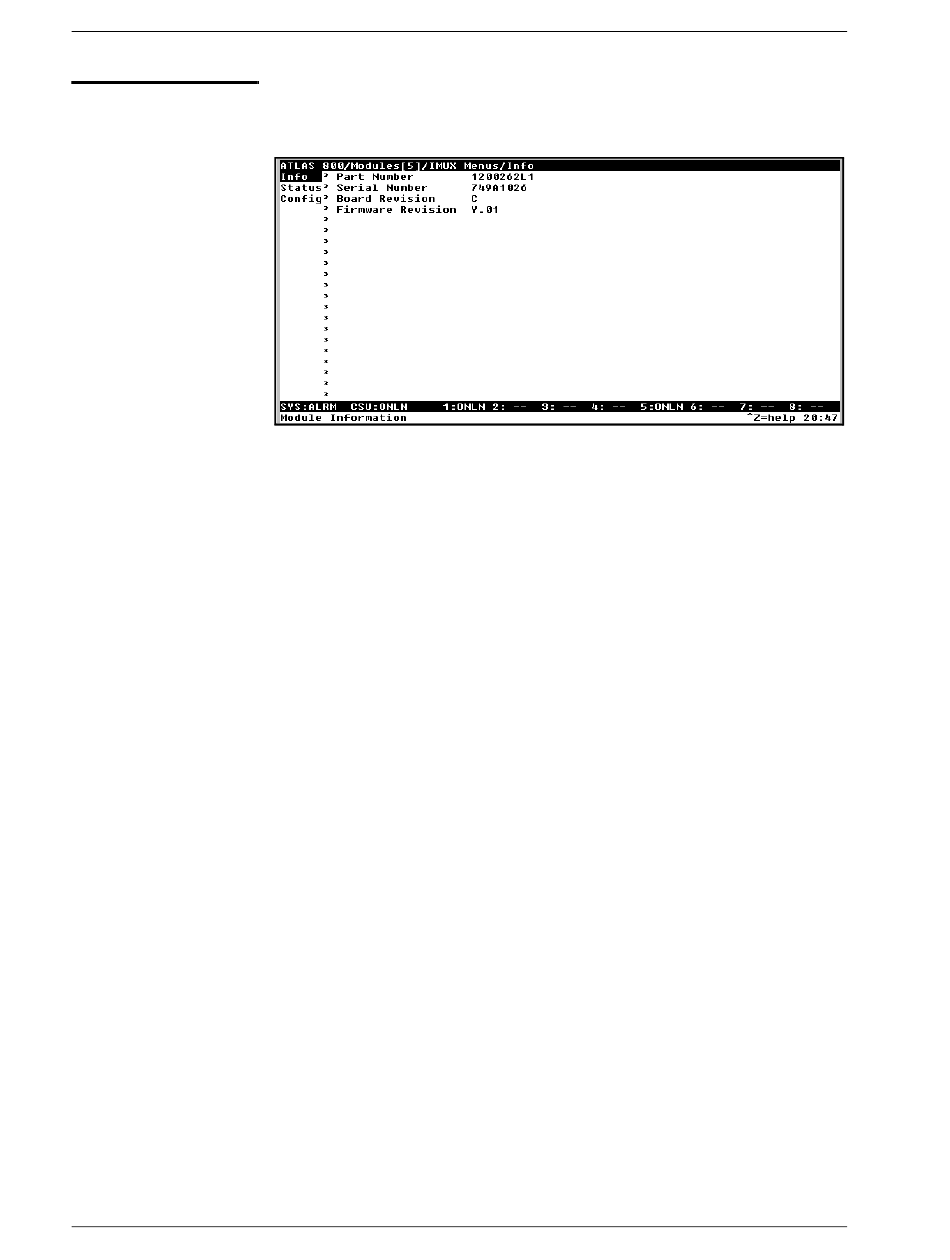

Info
Part Number
Serial Number
Board Revision
Firmware Revision
3-6
The IMUX Menu fields include
3).
Read security: 5
Displays module and software information for the option module.
Read security: 5
Displays the IMUX-56/64 Module part number in a read-only field.
Read security: 5
Displays the IMUX-56/64 Module serial number in a read-only field.
Read security: 5
Displays the printed circuit board revision of the IMUX-56/64 Module in a
read-only field.
Read security: 5
Displays the firmware revision of the IMUX-56/64 Module in a read-only
field.
IMUX-56/64 Module User Manual
,
, and
Info
Status
Configuration
Figure 3-3. IMUX-56/64 Module Submenus
(see Figure 3-
61200262L1-1A
