Chapter 3. Operation

NumBChannels

Data Rate

Bonded Ep

Configuration

ATLAS FEATURES USED WITH IMUX-56/64 MODULE OPTIONS

3-8
Read security: 5
Displays the number of bearer channels used in this BONDING session.
When the number is displayed in the format X/Y, Y is the number of
BONDING resources reserved for this session, and X is the number of calls
belonging to this session that are up. If just a number is displayed, then all
calls are up, and the number displayed is the number of BONDING
resources in use for this session.
Read security: 5
Displays the data rate for this BONDING session. The number in the paren-
thesis is the data rate of the individual bearer channels.
Read security: 5
Displays the slot and port of the terminating endpoint that is using this
BONDING session.
Read security: 5
Displays the configuration submenus available for the IMUX-56/64 Mod-
ule (see Figure 3-5).
Changes to the configuration of any IMUX-56/64 Module will be
propagated to all IMUX-56/64 Modules
For a description of the individual timers, see BONDING Config on page 3-2.
In addition to the IMUX-56/64 Module menu items, two additional ATLAS
menu items may be operated in conjunction with the IMUX-56/64 Module.
These are Factory Restore and System Self-test.
IMUX-56/64 Module User Manual

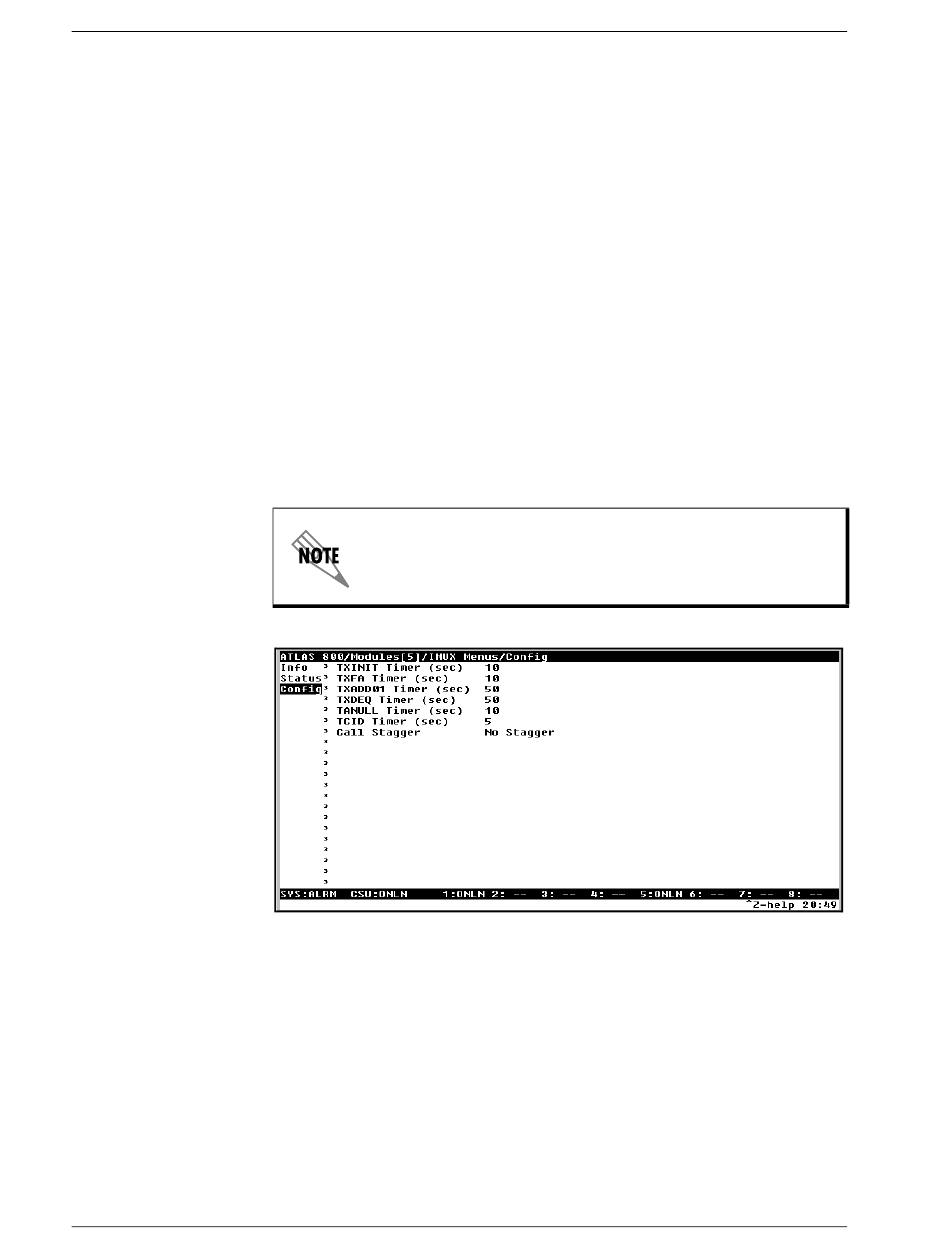

Figure 3-5. IMUX-56/64 Module Config Menu

.
