FUNCTIONAL DESCRIPTION

Features

1-2
found in the help menus under the endpoint's Dial plan Interface configura-
tion.
For example, to configure an Nx endpoint for BONDING, set Max DS0s and
Min DS0s to something other than 1 under the Nx Dial Plan interface config-
uration (see Figure 1-2).
The IMUX-56/64 Module installs into any available slot in the ATLAS chas-
sis. The status of the module itself can be viewed from the ATLAS front pan-
el. Additional status information is available via the terminal menu,
accessible through either a VT-100 terminal connected to the ATLAS Base
Unit's control port or via a Telnet session established through the Base Unit's
Ethernet port. The IMUX-56/64 Module can be configured and application
software can be downloaded using the terminal menu.
• Compliant with TIA/EIA-619 Standard (BONDING)
- Up to (32) 128Kbps BONDING sessions per module
- Up to (8) 512Kbps BONDING sessions per module
- Up to (2) 2.048Mbps BONDING sessions per module
• Event-driven dial-backup of frame relay or T1 circuits
• Support for 56K or 64K circuits
• Video Conferencing
• Software upgrades via FLASH download
IMUX-56/64 Module User Manual

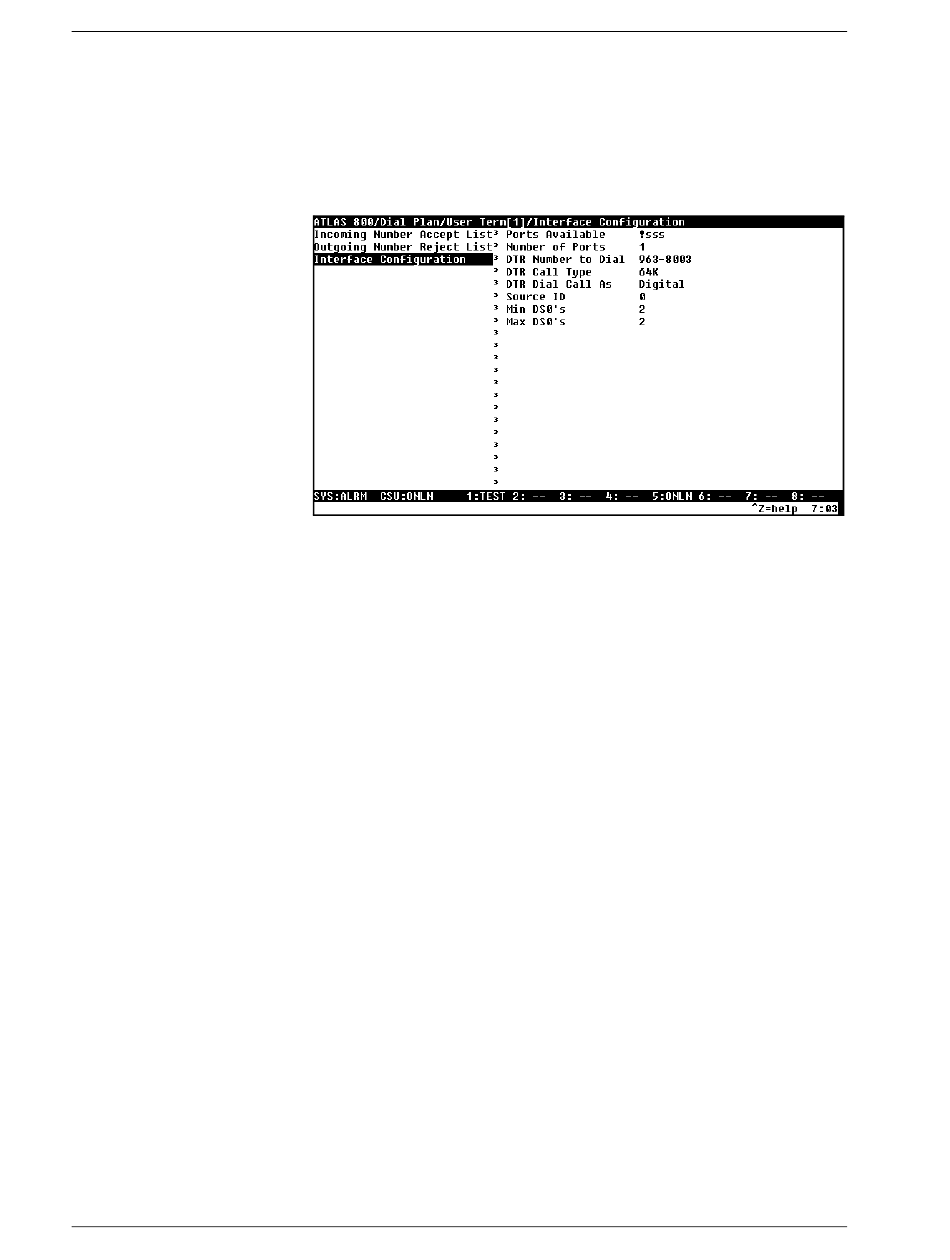

Figure 1-2. Interface Configuration Example
