1. GENERAL

This practice provides installation and maintenance
procedures for the ADTRAN Total Access 1500 Dual
4-Wire Transmit Only (TO) Access Module. Figure 1
is an illustration of the Total Access 1500 Dual 4-Wire
TO.
Revision History
This is the initial release of this document. Future
revisions to this document will be explained in this
subsection.
General Description
The Dual 4-Wire TO Access Module is intended to be
deployed in the Total Access 1500 Chassis. The Dual
4-Wire TO provides for two individual 4-wire analog
interfaces between a VF transmission facility and the
Total Access 1500 Pulse Coded Modulation (PCM)
backplane. Each TO interface provides 4-wire
voice-grade (analog) data services with no signaling
associated with the circuit, or where signaling is
provided by in-band tones.
61180212L2-5A
All manuals and user guides at all-guides.com
Total Access
Dual 4-Wire TO Access Module
Installation and Maintenance
Trademarks: Any brand names and product names included in this document are
Section 61180212L2-5, Issue 1
trademarks, registered trademarks, or trade names of their respective holders.
®
1500
DUAL
1180212L2
1
2

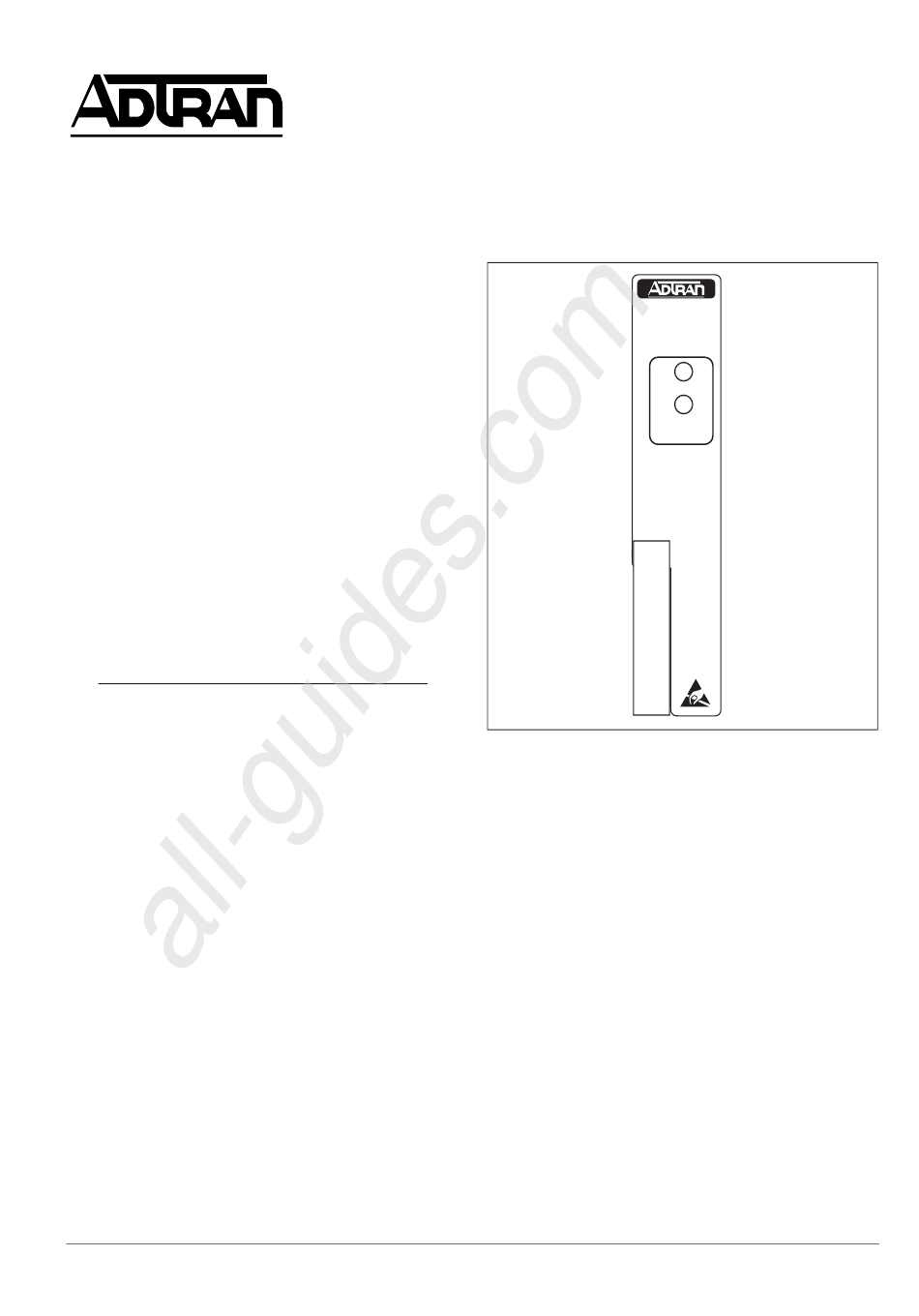

Figure 1. Dual 4-Wire TO

Features
The features of the Dual 4-Wire TO (P/N 1180212L2)
include the following:
• Two independent DC-isolated 4-wire VF channel
interfaces
• Extended operating temperature range from
-40ºC to +65ºC
• TLP transmit input range of +5.0 to -16.0 dBm in
0.1 dB increments
• TLP receive output range of +8.5 to -9.5 dBm in
0.1 dB increments
• Supports configurations for Sink, Source or No
Sealing Current
• Provisioning by craft interface or Site Manager
• Digital Loopback and 1004 Hz Digital Reference
Signal (DRS) Tone Tests via craft port or Site
Manager
• NEBS Level 3 and UL 1950 compliant
Section 61180212L2-5A
Issue 1, July 2002
CLEI Code: VAL230JA_ _
TO
STATUS
1
