UG-989
EVALUATION BOARD SOFTWARE QUICK START PROCEDURES
INSTALLING THE SOFTWARE
The
EVAL-AD5680DBZ
evaluation software is compatible with
Windows® Vista (64-bit/32-bit), and Windows 7 (64-bit/32-bit).
The software must be installed before connecting the
to the USB port of the PC to ensure that the
recognized when it is connected to the PC.
To install the
EVAL-AD5680DBZ
steps:
1.
Start the Windows operating system. Download the
installation software from the
evaluation board page.
2.
Run the setup.exe file from the installer folder if it does not
open automatically.
3.
After installation is complete, power up the
AD5680DBZ
evaluation board as described in the
Motherboard Power Supplies section.
4.
Connect the
EVAL-AD5680DBZ
SDP-B
board and the
SDP-B
USB cable included in the evaluation kit.
5.
When the software detects the evaluation board, click
through any dialog boxes that appear to finalize the
installation.
RUNNING THE SOFTWARE
To run the
EVAL-AD5680DBZ
steps:
1.
Connect the
EVAL-AD5680DBZ
SDP-B
board and connect the USB cable between the
board and the PC.
2.
Power up the
EVAL-AD5680DBZ
described in the Motherboard Power Supplies section.
3.
From the Start menu, click All Programs, Analog Devices,
AD5680 Evaluation Software.
4.
If the
SDP-B
board is not connected to the USB port when
the software is launched, a connectivity error displays (see
Figure 2). Connect the
EVAL-AD5680DBZ
to the USB port of the PC and wait a few seconds. When
the
SDP-B
board is detected, the display is updated (see
Figure 3).
Alternatively, the
EVAL-AD5680DBZ
be used without an evaluation board. The
evaluation software runs in simulation mode, displaying expected
outputs based on the input data. The main window of the
AD5680DBZ
evaluation software then opens, as shown in
Figure 4.
SDP-B
board
SDP-B
board is
software, take the following
EVAL-AD5680DBZ
EVAL-
evaluation board to the
board to the PC using the
program, take the following
evaluation board to the
SDP-B
evaluation board as
evaluation board
evaluation software can
EVAL-AD5680DBZ
EVAL-
Rev. 0 | Page 4 of 12
EVAL-AD5680DBZ User Guide

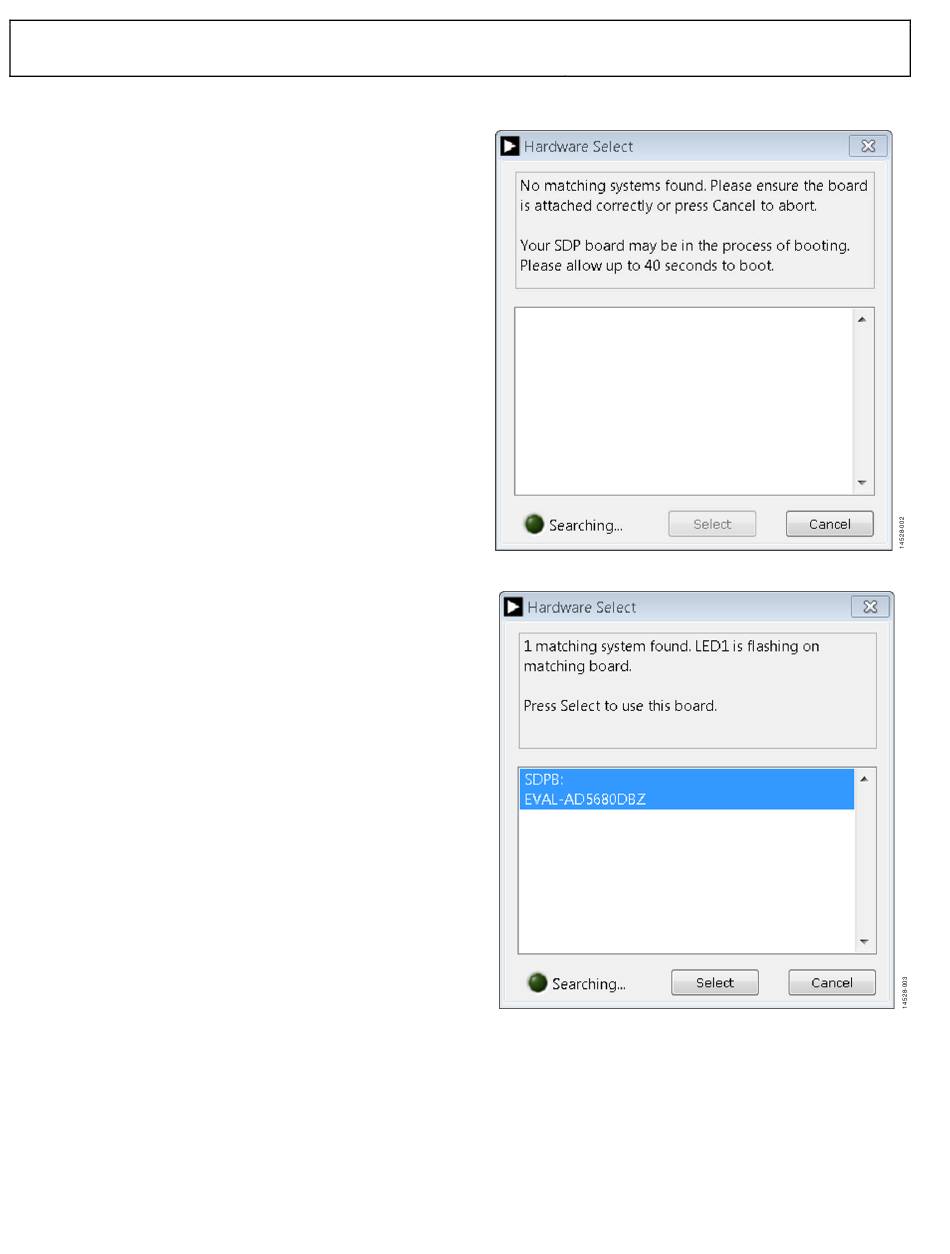

Figure 2. Connectivity Error
Figure 3. Hardware Select
