One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the
FEATURES
Full featured evaluation board in conjunction with the
nanoDAC® motherboard (EVAL-MBnanoDAC-SDZ)
On-board references
Various link options
PC control in conjunction with Analog Devices, Inc., system
demonstration platform (SDP)
PACKAGE CONTENTS
EVAL-AD5678DBZ
evaluation board
EVAL-MBnanoDAC-SDZ
motherboard
SOFTWARE NEEDED
EVAL-AD5678DBZ
evaluation software
HARDWARE NEEDED
EVAL-SDP-CB1Z
(SDP-B) board, must be purchased
separately
DOCUMENTS NEEDED
Electronic version of the
AD5678
Electronic version of the
EVAL-AD5678DBZ
EVAL-AD5678DBZ, EVAL-MBnanoDAC-SDZ, AND
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
AD5678
Voltage Output DAC
data sheet
user guide
Rev. A | Page 1 of 13
EVAL-AD5678DBZ
4 × 12-Bit and 4 × 16-Bit, Octal-Channel,
GENERAL DESCRIPTION
This user guide details the operation of the evaluation board for
the
AD5678
octal channel, voltage output, digital-to-analog
converter (DAC).
The evaluation board is designed to help users quickly prototype
new
AD5678
circuits and reduce design time. The
operates from a single 2.7 V to 5.5 V supply.
For full data, see the
in conjunction with this user guide when using the evaluation
board.
The evaluation board interfaces to the USB port of a PC via the
SDP-B
board. Software is available for download from the
AD5678DBZ
evaluation board page to allow the user to program
the AD5678.
SDP-B

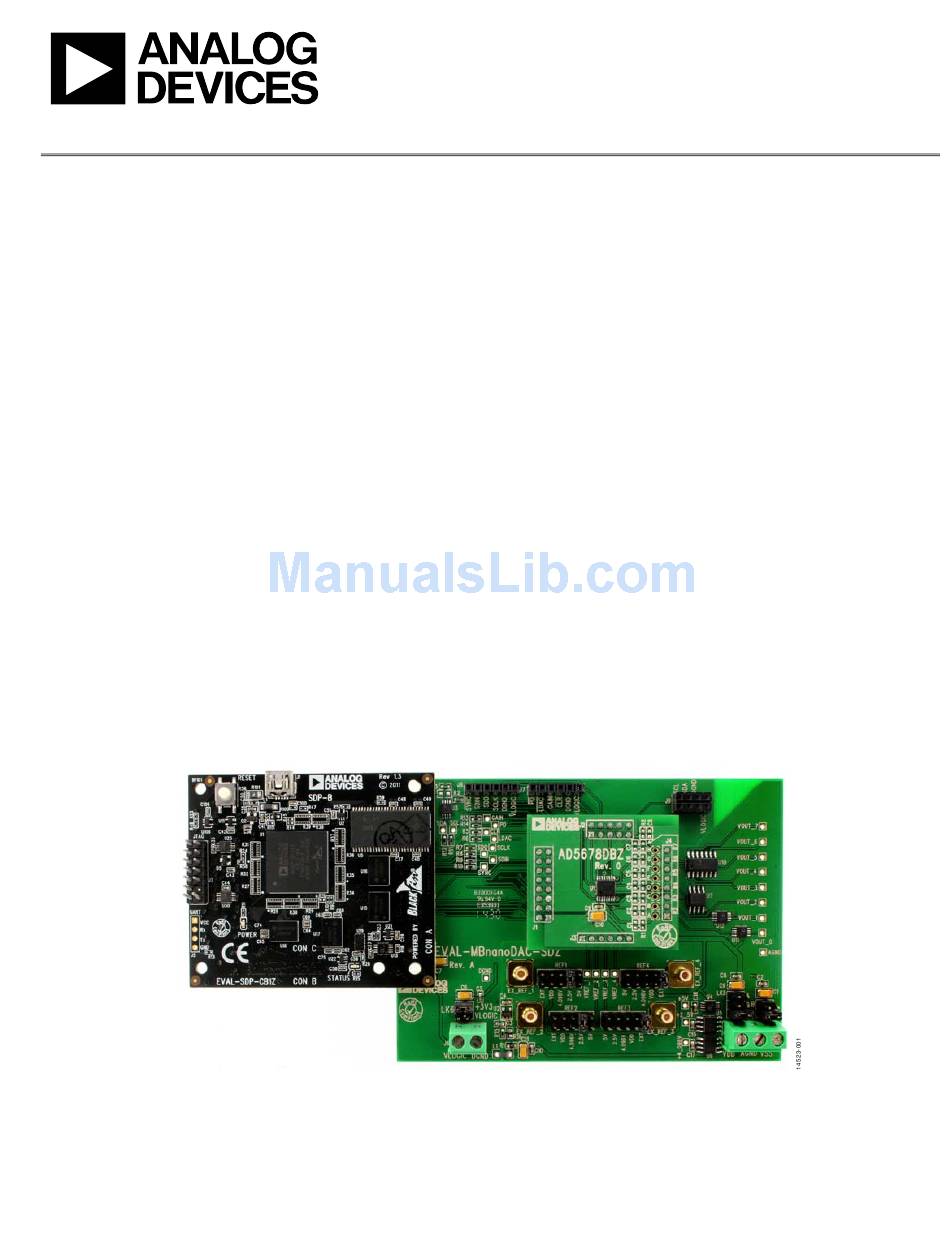

Figure 1.
User Guide
AD5678
data sheet, which must be consulted
BOARDS
UG-987
AD5678
EVAL-
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-AD5678DBZ
Summary of Contents for Analog Devices EVAL-AD5678DBZ
-
Page 1: Features
(DAC). On-board references Various link options The evaluation board is designed to help users quickly prototype PC control in conjunction with Analog Devices, Inc., system AD5678 circuits and reduce design time. The AD5678 demonstration platform (SDP) operates from a single 2.7 V to 5.5 V supply. -
Page 2: Table Of Contents
General Description ................. 1 Evaluation Board Schematics and Artwork ........7 EVAL-AD5678DBZ, EVAL-MBnanoDAC-SDZ, and SDP-B EVAL-MBnanoDAC-SDZ Motherboard ........7 Boards....................1 EVAL-AD5678DBZ Daughter Board ........10 Revision History ................2 Ordering Information ..............12 Evaluation Board Hardware ............3 Bill of Materials ................12 Motherboard Power Supplies ............ -
Page 3: Evaluation Board Hardware
EVAL-AD5678DBZ User Guide UG-987 EVALUATION BOARD HARDWARE MOTHERBOARD POWER SUPPLIES LINK OPTIONS EVAL-MBnanoDAC-SDZ motherboard supports single A number of link options are incorporated in the EVAL- and dual power supplies. MBnanoDAC-SDZ and must be set for the required operating conditions before using the board. Table 2 describes the positions of... -
Page 4: Evaluation Board Software Quick Start Procedures
SDP-B board and the PC. Power up the evaluation board as described in the Motherboard Power Supplies section. From the Start menu, click All Programs, Analog Devices, AD5678 Evaluation Software. If the SDP-B board is not connected to the USB port when the software is launched, a connectivity error displays (see Figure 2). -
Page 5: Software Operation
EVAL-AD5678DBZ User Guide UG-987 Figure 4. AD5678 Evaluation Software Main Window Power-Down Control SOFTWARE OPERATION Each DAC can be powered down individually. Click the POWER- The software for the AD5678 allows the user to program values DOWN LOGIC blue progressive disclosure option to access the to the DAC REGISTER of the DAC. - Page 6 UG-987 EVAL-AD5678DBZ User Guide Reference Control LDAC Mask Register The DAC has an on-chip reference with an internal gain of 2. Each DAC can be configured to respond to or override the LDAC Click the blue progressive option on the REFERENCE INPUT pin settings in the LDAC control.
-
Page 7: Evaluation Board Schematics And Artwork
EVAL-AD5678DBZ User Guide UG-987 EVALUATION BOARD SCHEMATICS AND ARTWORK EVAL-MBnanoDAC-SDZ MOTHERBOARD +3.3V USB_VBUS BEAD 1.6Ω RESET_IN BMODE1 UART_RX UART_TX 100kΩ 24LC32 RESET_OUT SLEEP 4.7µF 0.1µF EXT_VDD EEPROM_A0 WAKE +3.3V 10µF STANDARD CONNECTOR DGND DGND 100kΩ CLK_OUT DGND TMR_C* TMR_D +3.3V... - Page 8 UG-987 EVAL-AD5678DBZ User Guide +4.096V +2.5V +2.5V +4.096V REF198 V IN VOUT +2_5VREF +5VREF VOUT OUTPUT +4_096VREF SLEEP ADR431BRZ ADR445ARMZ COMP TRIM TRIM 1µF 1µF 1µF REF3 REF4 REF1 REF2 +5VREF +5VREF +5VREF +5VREF +2_5VREF +2_5VREF +2_5VREF +2_5VREF VREF_4 VREF_1...
- Page 9 EVAL-AD5678DBZ User Guide UG-987 Figure 12. EVAL-MBnanoDAC-SDZ Motherboard Component Placement Figure 13. EVAL-MBnanoDAC-SDZ Motherboard Top Side Routing Rev. A | Page 9 of 13...
-
Page 10: Eval-Ad5678Dbz Daughter Board
UG-987 EVAL-AD5678DBZ User Guide Figure 14. EVAL-MBnanoDAC-SDZ Motherboard Bottom Side Routing EVAL-AD5678DBZ DAUGHTER BOARD VOUT_0 LDAC SDIN + C10 SCLK SYNC GAIN 10µF 0.1µF VOUT_1 VREF1 J4-1 VOUT_0 AGND J4-2 VOUT_1 VOUT_2 J4-3 VOUT_2 VOUT_A LDAC LDAC J4-4 VOUT_3 VOUT_B... - Page 11 EVAL-AD5678DBZ User Guide UG-987 Figure 16. EVAL-AD5678DBZ Daughter Board Component Placement Figure 17. EVAL-AD5678DBZ Daughter Board Top Side Routing Figure 18. EVAL-AD5678DBZ Daughter Board Bottom Side Routing Rev. A | Page 11 of 13...
-
Page 12: Ordering Information
UG-987 EVAL-AD5678DBZ User Guide ORDERING INFORMATION BILL OF MATERIALS Table 4. EVAL-MBnanoDAC-SDZ Motherboard Reference Designator Description Supplier/Part Number 1, 2 C1, C6, C7, C9 6.3 V, tantalum capacitor (Case A), 10 µF, ±20% FEC/1190107 C2, C5, C8, C10, C15, C16, C17 50 V, X7R ceramic capacitor, 0.1 µF, ±10%... - Page 13 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
