EVAL-AD5680DBZ User Guide

SOFTWARE OPERATION

The software for the AD5680
to the input and DAC registers of each DAC individually or
collectively.

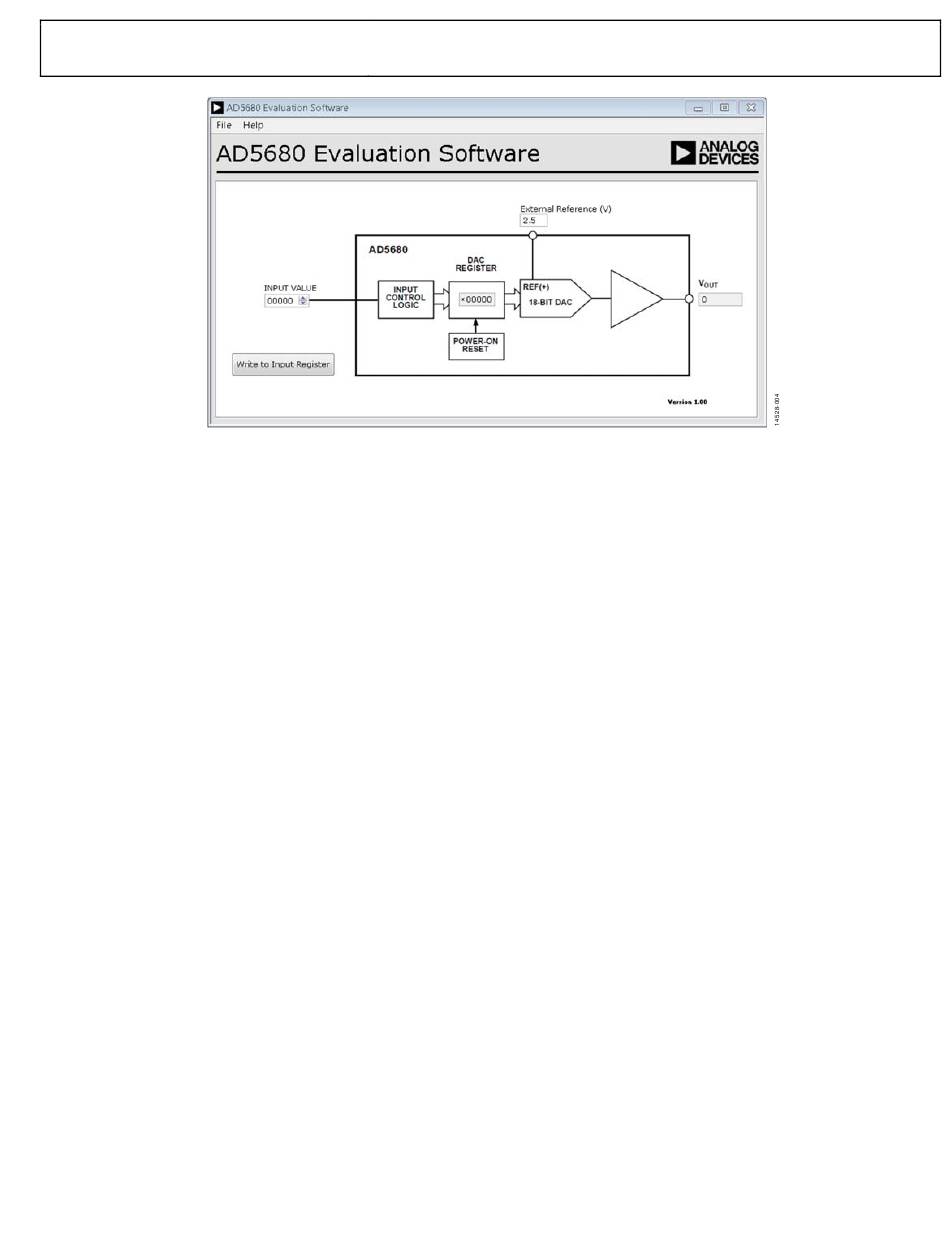

Figure 4. AD5680 Evaluation Software Main Window
allows the user to program values

WRITE TO INPUT REGISTER

Click Write to Input Register to load the code of the input data
control to the DAC register of the DAC. The DAC output is
automatically updated with the appropriate voltage.
When using an external reference other than the default 2.5 V
reference, make sure to update the External Reference (V) input
box with the appropriate value, so that the software outputs the
correct voltage.
Rev. 0 | Page 5 of 12
UG-989
