EVAL-ADSW4000KTZ

SOFTWARE

COMMISSIONING

Ensure that the ADI EagleEye™ PeopleCount iOS or Android
app is installed on a tablet. It is recommended to use an Apple
iPad with iOS 12 or later or a Samsung Galaxy Tab S3 with
Android 7.0 or later. The ADI EagleEye™ software package is
also available for commissioning, but this PC tool is only
recommended for advanced debugging and troubleshooting.
Note that if the sensor has been previously commissioned and is
being reconfigured, the device must be power cycled before
connecting to the sensor with the tablet app. Take the following
steps to power cycle the sensor and reconnect to the tablet app:
1. Press the sensor power button. After the sensor reboots,
wait approximately 45 seconds until the DSP LED turns
from red to cyan and the MCU LED starts blinking purple
(see Table 1 for a description of the LED indications).
2. Connect to the sensor using the tablet app to ensure that
the previous configuration settings are not applied and the
device is properly recommissioned. For instructions on
how to connect to the sensor using the tablet app, see the
Connecting to the Sensor Using the ADI EagleEye™
PeopleCount Tablet App.
Connecting to the Sensor Using the ADI EagleEye™
PeopleCount Tablet App
Take the following steps to commission the sensor with the ADI
EagleEye™ PeopleCount tablet app:
1. Open the tablet app and log in with the Analog Devices
Cloud login credentials provided during the registration to
the Analog Devices cloud (see Figure 7).

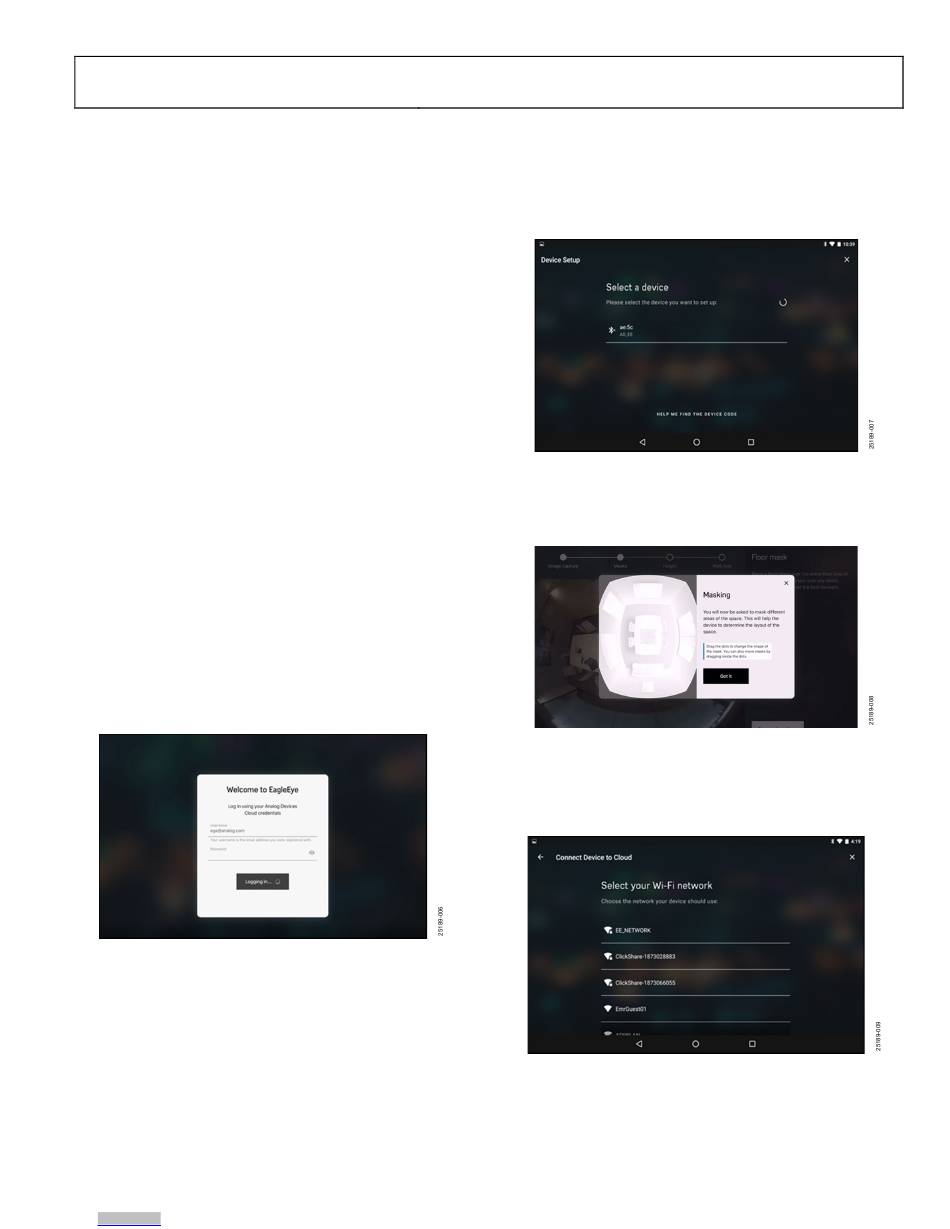

Figure 7. Analog Devices Cloud Login Screen
2. Read and accept the terms of use.
3. Install the sensor in the designated area and connect the
USB cable to a USB power source (see the Installation of
the Sensor section for the installation instructions). Wait
approximately 45 seconds until the DSP LED turns from
red to cyan and the MCU LED starts blinking purple.
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
User Guide
Rev. 0 | Page 5 of 7
4. Select the sensor from the devices listed to begin the
commissioning process (see Figure 8). If prompted, allow
the tablet app to access Bluetooth to detect the sensor and
display it in the list.
Figure 8. List of Devices Found in App
5. Define all commissioning masks to set up the monitored
space (see Figure 9). Each step is explained in the app with
instructions and animations.
Figure 9. In App Animation Guiding the User Through the Commissioning
Process
6. When the commissioning process completes, select the
preferred Wi-Fi network to upload the ADI EagleEye™ trial
kit metadata to the Analog Devices cloud (see Figure 10).
Figure 10. Available Wi-Fi Networks in App
UG-1892
