1-1-3

V330-F Series System Configuration

The V330-F can be used in the following types of system configurations.
Connecting over Ethernet (EtherNet/IP, Serial (TCP), PROFINET)
Establish network connections via an Ethernet cable to input triggers and communication commands
and to output reading results (judgment results and decoded content). Using the data link function for
each network (excluding Serial), data transfer can be done periodically between the code reader and
the external device.

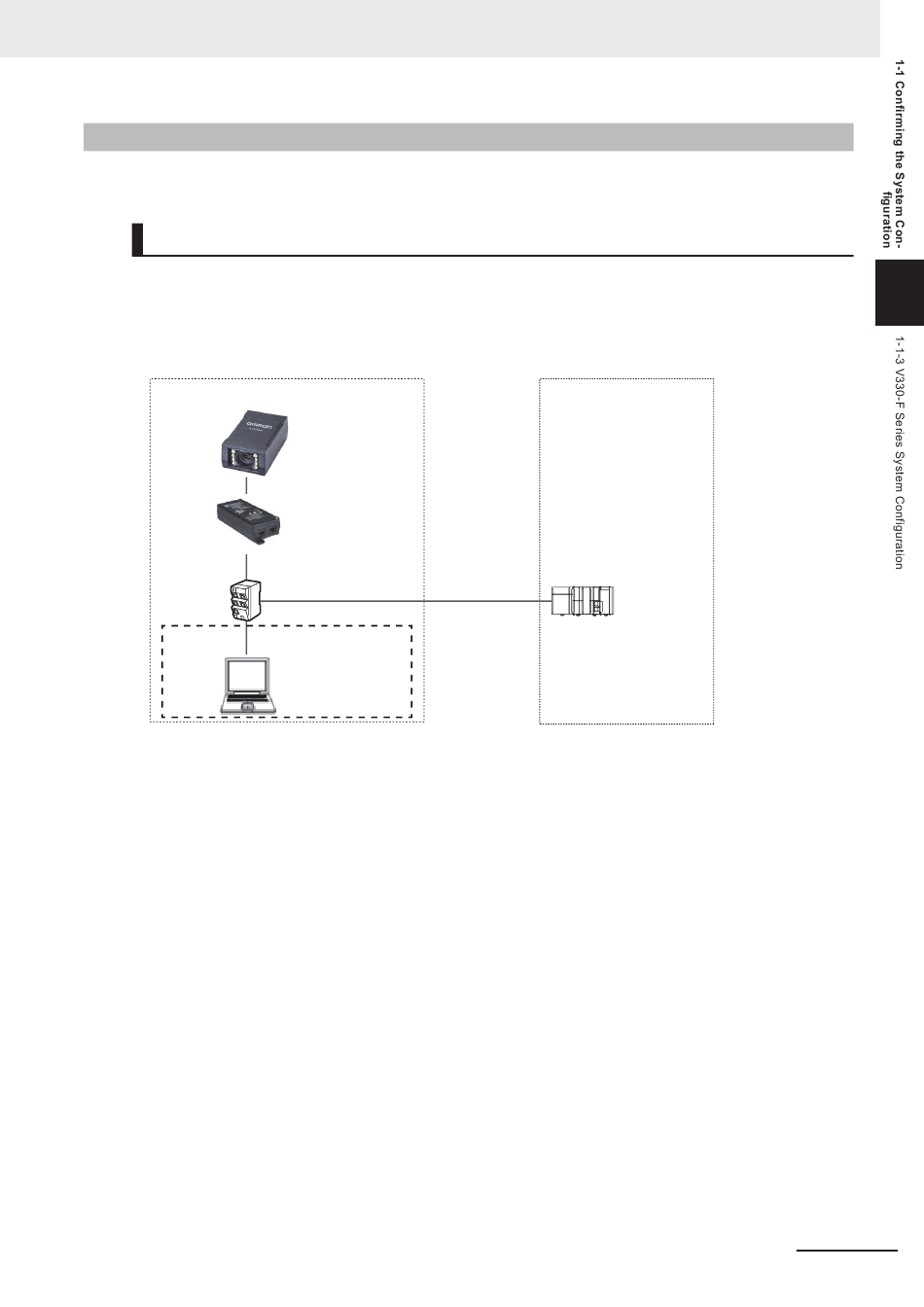

Basic configuration
Code Reader (V330-F)
Switching hub
for EtherNet/IP
(industrial
Ethernet)
*1
*1 If monitor display is not required, it is not necessary to connect with a PC during operation.
*2 The PoE injector requires power supply from an external power source.
Autofocus Multicode Reader MicroHAWK V320-F/V330-F/V420-F/V430-F Series User Manual for Communication Settings (Z407-E1)
General-purpose
Ethernet cable
XS6W-5PUR8SS100CM-G
PoE injector *2
General-purpose
Ethernet cable
XS6W-5PUR8SS100CM-G
General-purpose
Ethernet cable
XS6W-5PUR8SS100CM-G
General-purpose
Ethernet cable
XS6W-5PUR8SS100CM-G
Computer
WebLink or ESP
1 Communication Specifications Overview
External devices
I/O control PLC
