*1 If monitor display is not required, it is not necessary to connect with a PC during operation.

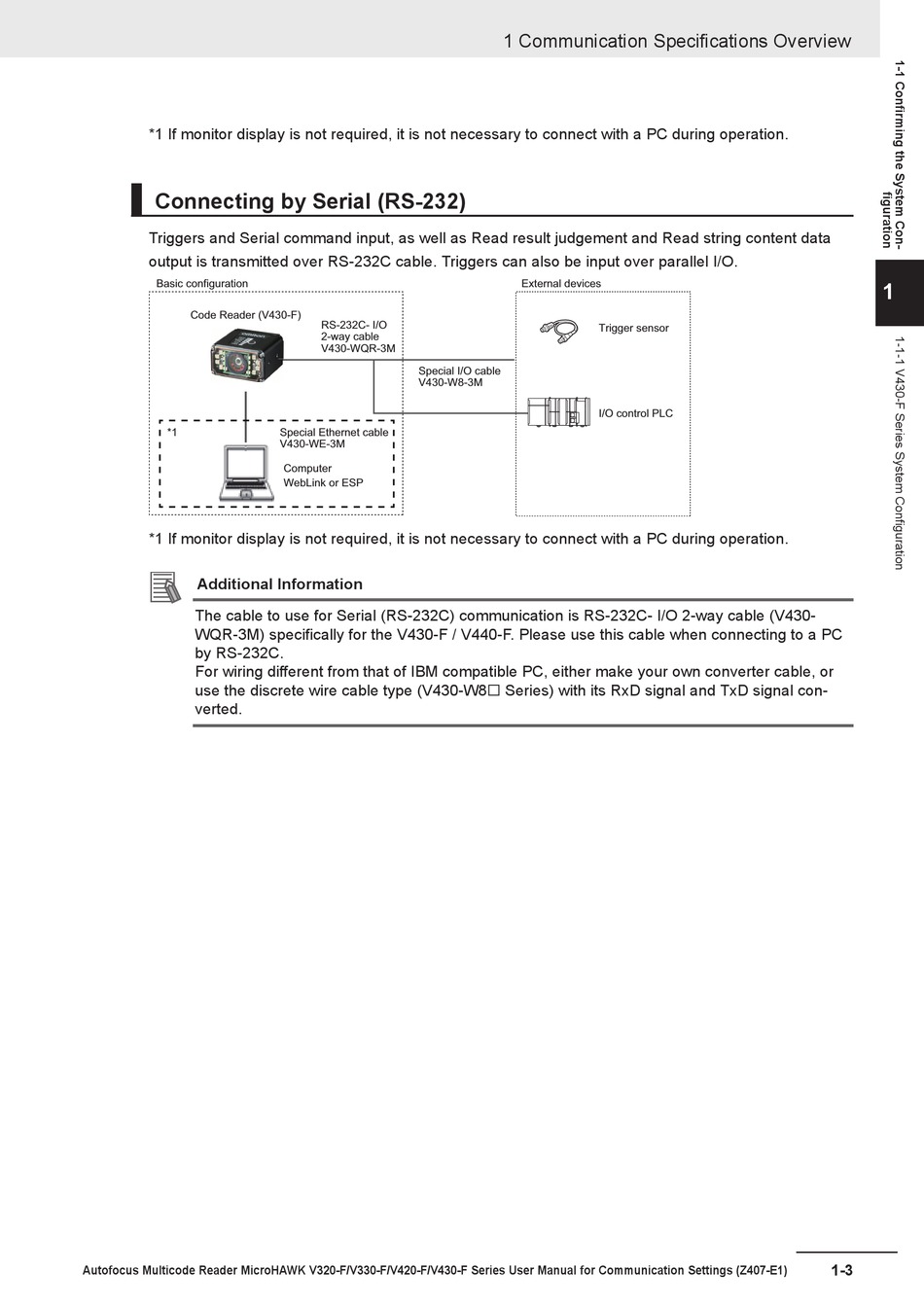

Connecting by Serial (RS-232)
Triggers and Serial command input, as well as Read result judgement and Read string content data
output is transmitted over RS-232C cable. Triggers can also be input over parallel I/O.
Basic configuration
Code Reader (V430-F)
*1
*1 If monitor display is not required, it is not necessary to connect with a PC during operation.
Additional Information
The cable to use for Serial (RS-232C) communication is RS-232C- I/O 2-way cable (V430-
WQR-3M) specifically for the V430-F / V440-F. Please use this cable when connecting to a PC
by RS-232C.
For wiring different from that of IBM compatible PC, either make your own converter cable, or
use the discrete wire cable type (V430-W8£ Series) with its RxD signal and TxD signal con-
verted.
Autofocus Multicode Reader MicroHAWK V320-F/V330-F/V420-F/V430-F Series User Manual for Communication Settings (Z407-E1)
RS-232C- I/O
2-way cable
V430-WQR-3M
Special I/O cable
V430-W8-3M
Special Ethernet cable
V430-WE-3M
Computer
WebLink or ESP
1 Communication Specifications Overview
External devices
Trigger sensor
I/O control PLC
1
1-3
