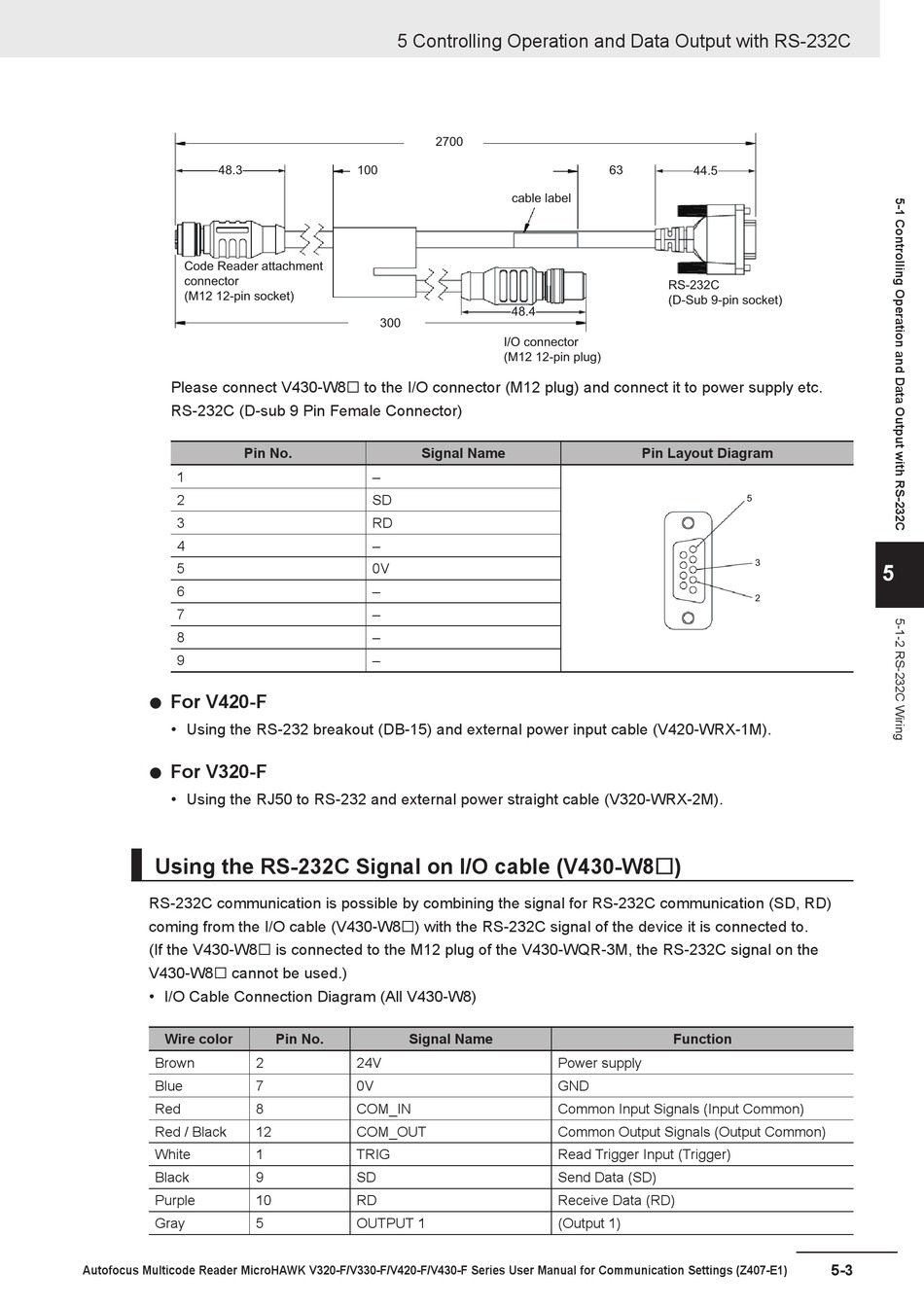

Omron MicroHAWK V320-F Series User Manual page 119

48.3
Code Reader attachment
connector
(M12 12-pin socket)
Please connect V430-W8£ to the I/O connector (M12 plug) and connect it to power supply etc.
RS-232C (D-sub 9 Pin Female Connector)
Pin No.
1
2
3
4
5
6
7
8
9
 For V420-F
• Using the RS-232 breakout (DB-15) and external power input cable (V420-WRX-1M).
 For V320-F
• Using the RJ50 to RS-232 and external power straight cable (V320-WRX-2M).
Using the RS-232C Signal on I/O cable (V430-W8£)
RS-232C communication is possible by combining the signal for RS-232C communication (SD, RD)
coming from the I/O cable (V430-W8£) with the RS-232C signal of the device it is connected to.
(If the V430-W8£ is connected to the M12 plug of the V430-WQR-3M, the RS-232C signal on the
V430-W8£ cannot be used.)
• I/O Cable Connection Diagram (All V430-W8)
Wire color
Brown 2
Blue 7
Red 8
Red / Black 12
White 1
Black 9
Purple 10
Gray 5
Autofocus Multicode Reader MicroHAWK V320-F/V330-F/V420-F/V430-F Series User Manual for Communication Settings (Z407-E1)
5 Controlling Operation and Data Output with RS-232C
2700
100
300
Signal Name
–
SD
RD
–
0V
–
–
–
–
Pin No. Signal Name
24V
0V
COM_IN
COM_OUT
TRIG
SD
RD
OUTPUT 1
63
cable label
RS-232C
(D-Sub 9-pin socket)
48.4
I/O connector
(M12 12-pin plug)
Pin Layout Diagram
Function
Power supply
GND
Common Input Signals (Input Common)
Common Output Signals (Output Common)
Read Trigger Input (Trigger)
Send Data (SD)
Receive Data (RD)
(Output 1)
44.5
5
3
2
5-3
5
