Mismatch or No Read
The assigned output signal turns ON when one of the following conditions is met.
• On No Read (NOREAD)
• If using the Matchcode function, when it does not match with the master symbol
• Triggered Mode must be External or Serial
Below is an Output assignment example and Timing chart.
[Example assignment of OUTPUT signals]
• Output 1: In Read Cycle
• Output 2: Mismatch (or No Read) Output Mode: Pulse
For how to set up the Output signal assignments, please refer to How to Assign the Output Signals on
page 2-12.

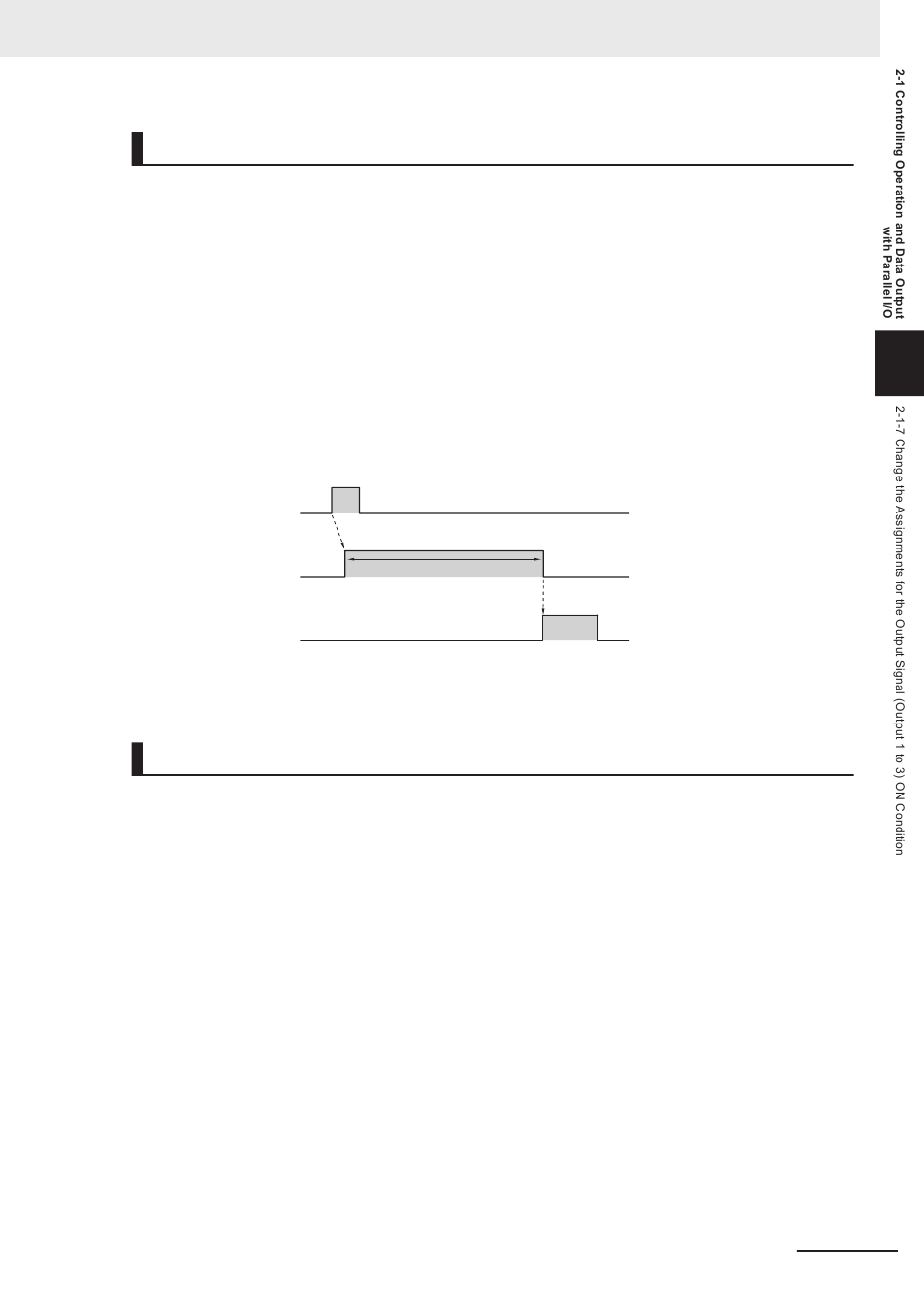

<Timing Chart>
1. Trigger input
(TRIG signal)
2. Output1
In Read Cycle
3. Output2
Mismatch
(or No Read)
*1 You can change the length of time the signal is ON. For further information, please refer to
2-1-8 Change the ON/OFF Timing of the Output Signal (Output 1 to 3) on page 2-20.
Match (or On Good Read)
The assigned output signal turns ON when one of the following conditions is met.
• On Good Read
• If using the Matchcode function, when it matches with the master symbol
Below is an Output assignment example and Timing chart.
[Example assignment of OUTPUT signals]
• Output 1: In Read Cycle
• Output 2: On Match (or On Good Read) Output Mode: Pulse
For how to set up the Output signal assignments, please refer to How to Assign the Output Signals on
page 2-12.
<Timing Chart>
• Trigger Input → On Good Read
