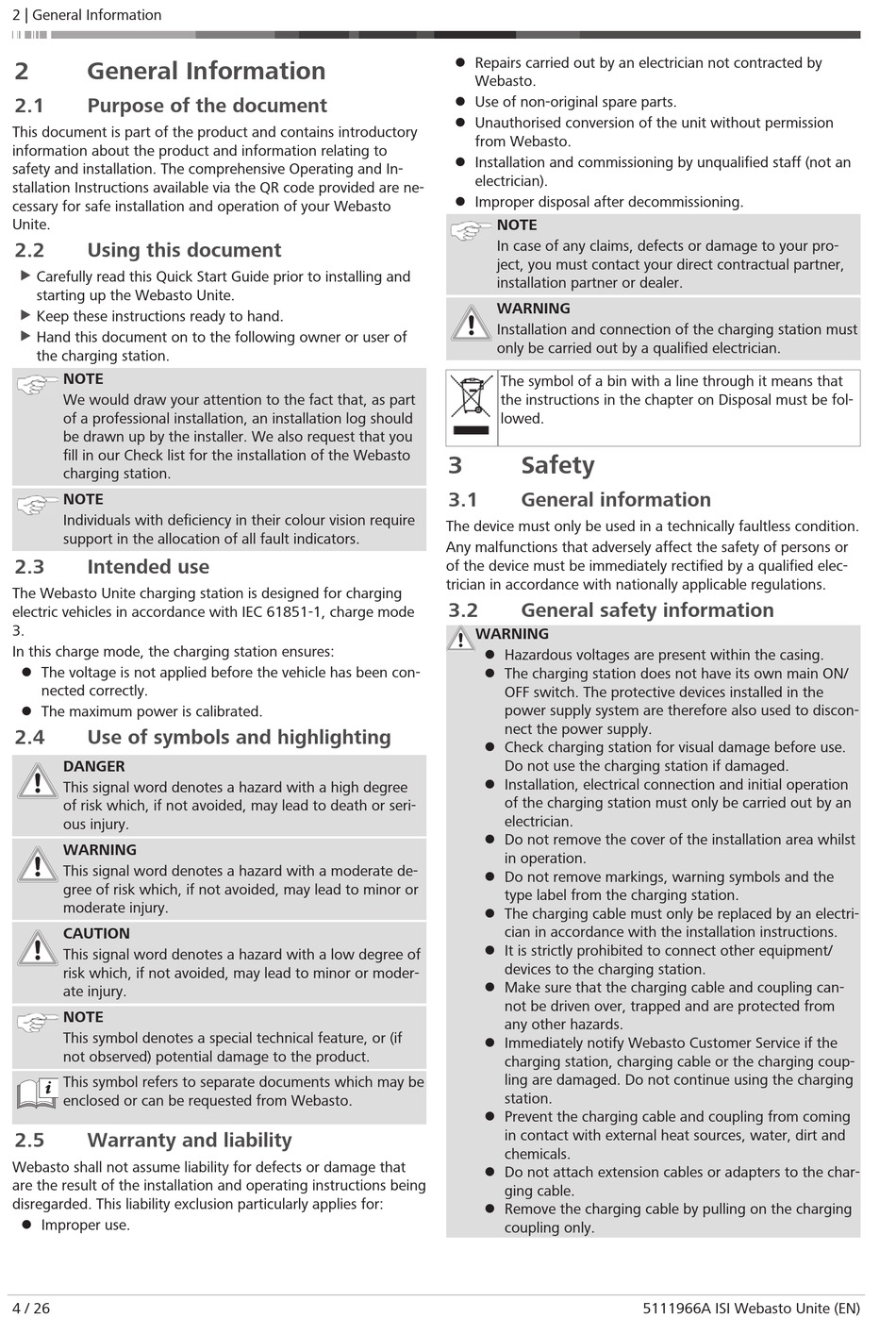

2 | General Information
2
General Information
2.1
Purpose of the document
This document is part of the product and contains introductory
information about the product and information relating to
safety and installation. The comprehensive Operating and In-
stallation Instructions available via the QR code provided are ne-
cessary for safe installation and operation of your Webasto
Unite.
2.2
Using this document
u
Carefully read this Quick Start Guide prior to installing and
starting up the Webasto Unite.
u
Keep these instructions ready to hand.
u
Hand this document on to the following owner or user of
the charging station.
NOTE
We would draw your attention to the fact that, as part
of a professional installation, an installation log should
be drawn up by the installer. We also request that you
fill in our Check list for the installation of the Webasto
charging station.
NOTE
Individuals with deficiency in their colour vision require
support in the allocation of all fault indicators.
2.3
Intended use
The Webasto Unite charging station is designed for charging
electric vehicles in accordance with IEC 61851-1, charge mode
3.
In this charge mode, the charging station ensures:
l The voltage is not applied before the vehicle has been con-
nected correctly.
l The maximum power is calibrated.
2.4
Use of symbols and highlighting
DANGER
This signal word denotes a hazard with a high degree
of risk which, if not avoided, may lead to death or seri-
ous injury.
WARNING
This signal word denotes a hazard with a moderate de-
gree of risk which, if not avoided, may lead to minor or
moderate injury.
CAUTION
This signal word denotes a hazard with a low degree of
risk which, if not avoided, may lead to minor or moder-
ate injury.
NOTE
This symbol denotes a special technical feature, or (if
not observed) potential damage to the product.
This symbol refers to separate documents which may be
enclosed or can be requested from Webasto.
2.5
Warranty and liability
Webasto shall not assume liability for defects or damage that
are the result of the installation and operating instructions being
disregarded. This liability exclusion particularly applies for:
l Improper use.
4 / 26
l Repairs carried out by an electrician not contracted by
Webasto.
l Use of non-original spare parts.
l Unauthorised conversion of the unit without permission
from Webasto.
l Installation and commissioning by unqualified staff (not an
electrician).
l Improper disposal after decommissioning.
NOTE
In case of any claims, defects or damage to your pro-
ject, you must contact your direct contractual partner,
installation partner or dealer.
WARNING
Installation and connection of the charging station must
only be carried out by a qualified electrician.
The symbol of a bin with a line through it means that
the instructions in the chapter on Disposal must be fol-
lowed.
3
Safety
3.1
General information
The device must only be used in a technically faultless condition.
Any malfunctions that adversely affect the safety of persons or
of the device must be immediately rectified by a qualified elec-
trician in accordance with nationally applicable regulations.
3.2
General safety information
WARNING
l Hazardous voltages are present within the casing.
l The charging station does not have its own main ON/
OFF switch. The protective devices installed in the
power supply system are therefore also used to discon-
nect the power supply.
l Check charging station for visual damage before use.
Do not use the charging station if damaged.
l Installation, electrical connection and initial operation
of the charging station must only be carried out by an
electrician.
l Do not remove the cover of the installation area whilst
in operation.
l Do not remove markings, warning symbols and the
type label from the charging station.
l The charging cable must only be replaced by an electri-
cian in accordance with the installation instructions.
l It is strictly prohibited to connect other equipment/
devices to the charging station.
l Make sure that the charging cable and coupling can-
not be driven over, trapped and are protected from
any other hazards.
l Immediately notify Webasto Customer Service if the
charging station, charging cable or the charging coup-
ling are damaged. Do not continue using the charging
station.
l Prevent the charging cable and coupling from coming
in contact with external heat sources, water, dirt and
chemicals.
l Do not attach extension cables or adapters to the char-
ging cable.
l Remove the charging cable by pulling on the charging
coupling only.
5111966A ISI Webasto Unite (EN)
