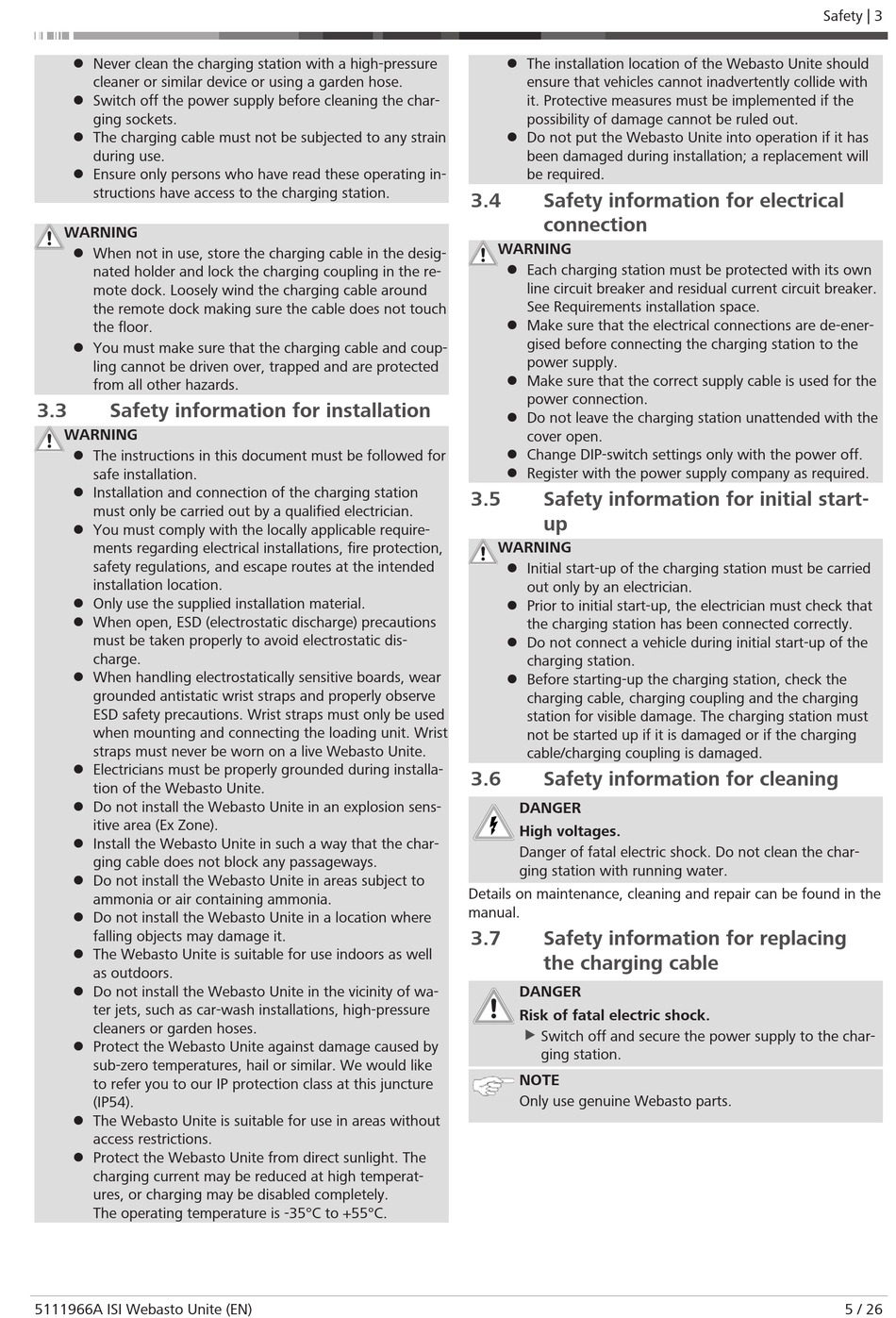

l Never clean the charging station with a high-pressure
cleaner or similar device or using a garden hose.
l Switch off the power supply before cleaning the char-
ging sockets.
l The charging cable must not be subjected to any strain
during use.
l Ensure only persons who have read these operating in-
structions have access to the charging station.
WARNING
l When not in use, store the charging cable in the desig-
nated holder and lock the charging coupling in the re-
mote dock. Loosely wind the charging cable around
the remote dock making sure the cable does not touch
the floor.
l You must make sure that the charging cable and coup-
ling cannot be driven over, trapped and are protected
from all other hazards.
3.3
Safety information for installation
WARNING
l The instructions in this document must be followed for
safe installation.
l Installation and connection of the charging station
must only be carried out by a qualified electrician.
l You must comply with the locally applicable require-
ments regarding electrical installations, fire protection,
safety regulations, and escape routes at the intended
installation location.
l Only use the supplied installation material.
l When open, ESD (electrostatic discharge) precautions
must be taken properly to avoid electrostatic dis-
charge.
l When handling electrostatically sensitive boards, wear
grounded antistatic wrist straps and properly observe
ESD safety precautions. Wrist straps must only be used
when mounting and connecting the loading unit. Wrist
straps must never be worn on a live Webasto Unite.
l Electricians must be properly grounded during installa-
tion of the Webasto Unite.
l Do not install the Webasto Unite in an explosion sens-
itive area (Ex Zone).
l Install the Webasto Unite in such a way that the char-
ging cable does not block any passageways.
l Do not install the Webasto Unite in areas subject to
ammonia or air containing ammonia.
l Do not install the Webasto Unite in a location where
falling objects may damage it.
l The Webasto Unite is suitable for use indoors as well
as outdoors.
l Do not install the Webasto Unite in the vicinity of wa-
ter jets, such as car-wash installations, high-pressure
cleaners or garden hoses.
l Protect the Webasto Unite against damage caused by
sub-zero temperatures, hail or similar. We would like
to refer you to our IP protection class at this juncture
(IP54).
l The Webasto Unite is suitable for use in areas without
access restrictions.
l Protect the Webasto Unite from direct sunlight. The
charging current may be reduced at high temperat-
ures, or charging may be disabled completely.
The operating temperature is -35°C to +55°C.
5111966A ISI Webasto Unite (EN)
l The installation location of the Webasto Unite should
ensure that vehicles cannot inadvertently collide with
it. Protective measures must be implemented if the
possibility of damage cannot be ruled out.
l Do not put the Webasto Unite into operation if it has
been damaged during installation; a replacement will
be required.
3.4
Safety information for electrical
connection
WARNING
l Each charging station must be protected with its own
line circuit breaker and residual current circuit breaker.
See Requirements installation space.
l Make sure that the electrical connections are de-ener-
gised before connecting the charging station to the
power supply.
l Make sure that the correct supply cable is used for the
power connection.
l Do not leave the charging station unattended with the
cover open.
l Change DIP-switch settings only with the power off.
l Register with the power supply company as required.
3.5
Safety information for initial start-
up
WARNING
l Initial start-up of the charging station must be carried
out only by an electrician.
l Prior to initial start-up, the electrician must check that
the charging station has been connected correctly.
l Do not connect a vehicle during initial start-up of the
charging station.
l Before starting-up the charging station, check the
charging cable, charging coupling and the charging
station for visible damage. The charging station must
not be started up if it is damaged or if the charging
cable/charging coupling is damaged.
3.6
Safety information for cleaning
DANGER
High voltages.
Danger of fatal electric shock. Do not clean the char-
ging station with running water.
Details on maintenance, cleaning and repair can be found in the
manual.
3.7
Safety information for replacing
the charging cable
DANGER
Risk of fatal electric shock.
u
Switch off and secure the power supply to the char-
ging station.
NOTE
Only use genuine Webasto parts.
Safety | 3
5 / 26
