Webasto ProCore Edge 9 Installation, Operation And Maintenance Manual
  1. Manuals
  2. Brands
  3. Webasto Manuals
  4. Battery Charger
  5. ProCore Edge 9
  6. Installation, operation and maintenance manual

Webasto ProCore Edge 9 Installation, Operation And Maintenance Manual

Hide thumbs Also See for ProCore Edge 9:
Table of Contents

Advertisement

Quick Links

Download this manual

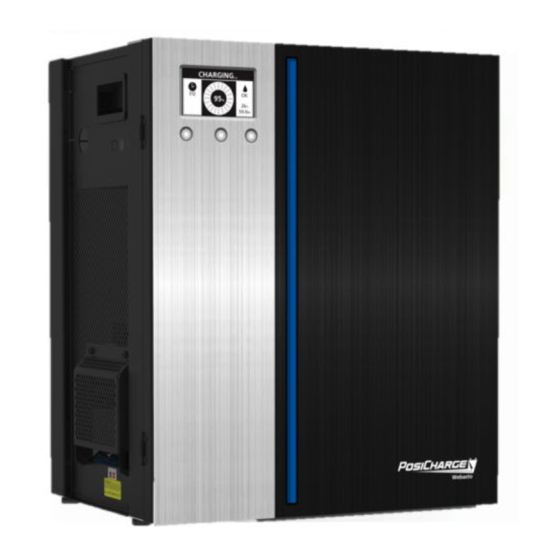

ProCore™ Edge
North America
Installation, Operation, and
Maintenance Manual
