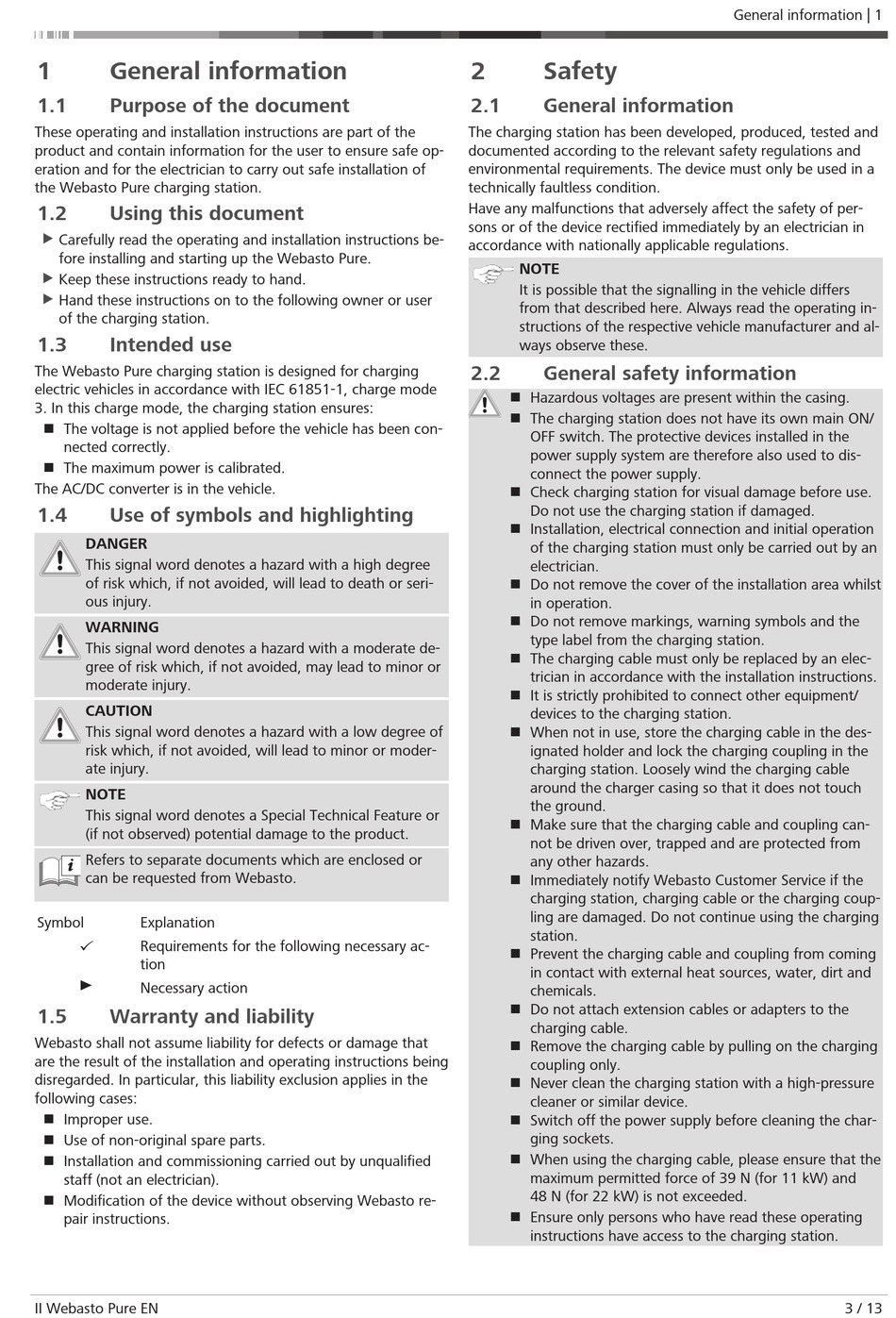

1

General information

1.1

Purpose of the document

These operating and installation instructions are part of the
product and contain information for the user to ensure safe op-
eration and for the electrician to carry out safe installation of
the Webasto Pure charging station.
1.2

Using this document

u
Carefully read the operating and installation instructions be-
fore installing and starting up the Webasto Pure.
u
Keep these instructions ready to hand.
u
Hand these instructions on to the following owner or user
of the charging station.
1.3

Intended use

The Webasto Pure charging station is designed for charging
electric vehicles in accordance with IEC 61851-1, charge mode
3. In this charge mode, the charging station ensures:
n The voltage is not applied before the vehicle has been con-
nected correctly.
n The maximum power is calibrated.
The AC/DC converter is in the vehicle.
1.4

Use of symbols and highlighting

DANGER
This signal word denotes a hazard with a high degree
of risk which, if not avoided, will lead to death or seri-
ous injury.
WARNING
This signal word denotes a hazard with a moderate de-
gree of risk which, if not avoided, may lead to minor or
moderate injury.
CAUTION
This signal word denotes a hazard with a low degree of
risk which, if not avoided, will lead to minor or moder-
ate injury.
NOTE
This signal word denotes a Special Technical Feature or
(if not observed) potential damage to the product.
Refers to separate documents which are enclosed or
can be requested from Webasto.
Symbol Explanation
Requirements for the following necessary ac-
tion
Necessary action
1.5

Warranty and liability

Webasto shall not assume liability for defects or damage that
are the result of the installation and operating instructions being
disregarded. In particular, this liability exclusion applies in the
following cases:
n Improper use.
n Use of non-original spare parts.
n Installation and commissioning carried out by unqualified
staff (not an electrician).
n Modification of the device without observing Webasto re-
pair instructions.
II Webasto Pure EN
2

Safety

2.1 General information
The charging station has been developed, produced, tested and
documented according to the relevant safety regulations and
environmental requirements. The device must only be used in a
technically faultless condition.
Have any malfunctions that adversely affect the safety of per-
sons or of the device rectified immediately by an electrician in
accordance with nationally applicable regulations.
NOTE
It is possible that the signalling in the vehicle differs
from that described here. Always read the operating in-
structions of the respective vehicle manufacturer and al-
ways observe these.
2.2

General safety information

n Hazardous voltages are present within the casing.
n The charging station does not have its own main ON/
OFF switch. The protective devices installed in the
power supply system are therefore also used to dis-
connect the power supply.
n Check charging station for visual damage before use.
Do not use the charging station if damaged.
n Installation, electrical connection and initial operation
of the charging station must only be carried out by an
electrician.
n Do not remove the cover of the installation area whilst
in operation.
n Do not remove markings, warning symbols and the
type label from the charging station.
n The charging cable must only be replaced by an elec-
trician in accordance with the installation instructions.
n It is strictly prohibited to connect other equipment/
devices to the charging station.
n When not in use, store the charging cable in the des-
ignated holder and lock the charging coupling in the
charging station. Loosely wind the charging cable
around the charger casing so that it does not touch
the ground.
n Make sure that the charging cable and coupling can-
not be driven over, trapped and are protected from
any other hazards.
n Immediately notify Webasto Customer Service if the
charging station, charging cable or the charging coup-
ling are damaged. Do not continue using the charging
station.
n Prevent the charging cable and coupling from coming
in contact with external heat sources, water, dirt and
chemicals.
n Do not attach extension cables or adapters to the
charging cable.
n Remove the charging cable by pulling on the charging
coupling only.
n Never clean the charging station with a high-pressure
cleaner or similar device.
n Switch off the power supply before cleaning the char-
ging sockets.
n When using the charging cable, please ensure that the
maximum permitted force of 39 N (for 11 kW) and
48 N (for 22 kW) is not exceeded.
n Ensure only persons who have read these operating
instructions have access to the charging station.
General information | 1
3 / 13
